|Rod Type　Series LEY/ Size: 16, 25, 32

Control of intermediate positioning and pushing is possible.
High precision with ball screws

• Speed control and positioning: Max. 64 points
• Long stroke: MAX.500 mm (LEY32）
• Either positioning or pushing control can
  be selected.
  Possible to hold the actuator with the rod
  pushing to a workpiece, etc.
• Auto switch mountable

In-line motor type

• Height dimension shortened by up to 49%

|Rod Type　Series LEY/ Size: 25, 32

• High output motor (100 W/200 W)
• Improved high speed transfer ability
• High acceleration/deceleration compatible (5,000 mm/s2)
• Pulse input type
• With internal absolute encoder
  (For LECSB/LECSC/LECSS)

Added large bore size 63!

• Work load Horizontal 80 kg/Vertical 72 kg
• High output motor: 400 W
• Max. speed: 1,000 mm/s *500 stroke
• Max. pushing force: 1,910 (N)
• Dust/Drip Proof Specification (IP65)

|Guide Rod Type　Series LEYG / Size: 16, 25, 32

Compact integrated guide rods Lateral load resistance and high non-rotating accuracy

Improved rigidity Lateral end load: 5 times more

* Compared with rod type, size 25 and 100 stroke

• Compatible with sliding bearing and ball bushing bearing
• Compatible with moment load and stopper (sliding bearing).
• Non-rotating accuracy improved by using two guide rods

|Guide Rod Type　Series LEYG / Size: 25, 32

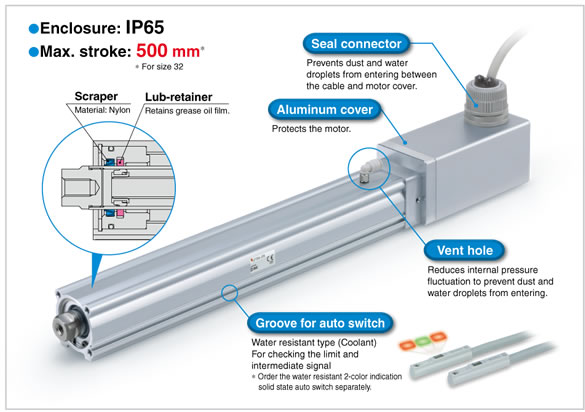

|Dust/Drip Proof (IP65) Specification

• Enclosure: IP65
• Max. stroke: 500 mm^*

For size 32

LEY-X5/Size: 25, 32

LEY-X5/Size: 25, 32

LEY63D□□-□P/Size: 63

|Mounting Variations

Direct Mounting

Bracket Mounting

|Application Examples

Lifter

Pushing operation

Delivery

Press fitting

Stopper

Rotation
