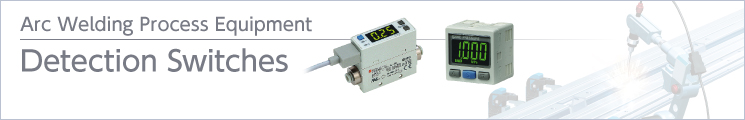

Detection Switches
- Energy Saving
- By Industry ⁄ Process
- Applications
2-Color Display Digital Flow Switch PF2M7(-L)
Switches/Sensors/Controller ? Electronic Flow Switches/SensorsIO-Link Devices ? Digital Flow Switch
Industrial Device Communication Equipment/Wireless System ? Industrial Device Communication Equipment: IO-Link Compatible Products
-
?3-Screen Display Digital Flow Monitor (Dedicated for the PF2M7) [New]
Allows for the monitoring of remote lines PFGM302 Series
?Dry air, N2, Ar, CO2
?A wide range of flow measurement is possible with 1 product.
Flow ratio: 100:1, Smallest settable increment: 0.01 L/min
?Improved resistance to moisture and foreign matter
?Compact, Lightweight
Weight: 27.3% lighter (55 g → 40 g)
?Low current consumption: 35 mA or less
?Grease-free
?IO-Link compatible
?IO-Link Master
Safety Instructions Pressure Switches/Flow Switches/Precautions Flow Switch Series Variations
Green Procurement (RoHS) IO-Link Master
Green Procurement (RoHS) IO-Link Master
| Series | Rated flow range (L/min) |
|---|---|
| PF2M7 | 0.01 to 1 (0.01 to 0.5) 0.02 to 2 (0.02 to 1) 0.05 to 5 (0.05 to 2.5) 0.1 to 10 (0.1 to 5) 0.3 to 25 (0.3 to 12.5) 0.5 to 50 (0.5 to 25) 1 to 100 (1 to 50) 2 to 200 （2 to 100） ( ): For CO2 |
Digital Flow Switch PFM7
Arc Welding Process Equipment ? Detection Switches
-
?Compatible with Argon (Ar), Carbon Dioxide
(CO2) and the Mixed Gas (Ar+CO2)
?Allows flow rate control and value management of shielding gas
?Minimum unit setting: 0.01 L/min
?Repeatability: ±1%F.S.
?Grease-free
?Flow adjustment valve is integrated. (Reduced piping and space saving)
?Response time: Either 50 ms, 0.5 s, 1 s or 2 s can be chosen.
Safety Instructions Pressure Switches/Flow Switches/Precautions
Flow Switch Series Variations Specialized Products for General Use
Introduction of Arc Welding Process Equipment Green Procurement (RoHS)
Flow Switch Series Variations Specialized Products for General Use
Introduction of Arc Welding Process Equipment Green Procurement (RoHS)
| Series | Applicable fluid | Rated flow range（L/min） |
|---|---|---|
| PFM7 | Dry air, N2, Ar, CO2 | 0.2 to 10（0.2 to 5） 0.5 to 25（0.5 to 12.5） 1 to 50（1 to 25） 2 to 100（2 to 50） （?。? For CO2 |
| PFM7-X731 | Compatible with argon (Ar) and carbon dioxide (CO2) mixed gas | 0.2 to 7 0.5 to 25 0.5 to 20 1.0 to 50 1.0 to 40 2 to 100 2 to 90 2 to 80 |
3-Screen Display High-Precision Digital Pressure Switch ISE20B
Arc Welding Process Equipment ? Detection Switches
-
?Setting is possible while checking the measured value.
?Allows pressure control and value management of shielding gas.
?Compatible with Argon (Ar), Carbon Dioxide
(CO2) and the Mixed Gas (Ar+CO2)
Safety Instructions Pressure Switches/Flow Switches/Precautions
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
| Series | Output type | Type | Rated pressure range | Enclosure | Applicable fluid |
|---|---|---|---|---|---|
| ISE20B | 2 outputs Analog output (Voltage/Current) Switch: 1 output | Positive pressure | ?0.100～1.000MPa | IP65 | Air |
