冷凍式空氣干燥機／面向東南亞規格 IDFC□

CAD
說明書

2D CAD
查看 2D CAD
冷凍式空氣干燥機／面向東南亞規格 IDFC□

說明書

系列查看搜索結果

IDFC60 查看搜索結果
IDFC70 查看搜索結果
IDFC80 查看搜索結果
IDFC90 查看搜索結果

系列	查看搜索結果
IDFC60	查看搜索結果
IDFC70	查看搜索結果
IDFC80	查看搜索結果
IDFC90	查看搜索結果

安全注意事項　壓縮空氣凈化元件/共通注意事項
選型?技術資料　環保認證(RoHS)

系列	額定入口條件	處理空氣流量 (m3/min [ANR] ) 出口空気圧力露點溫度 3℃	處理空氣流量 (m3/min [ANR] ) 出口空気圧力露點溫度 10℃	處理空氣流量 (m3/min [ANR] ) 出口空気圧力露點溫度 20℃	使用冷媒	接管口徑
IDFC60	50℃ 0.7MPa	0.9	2.8	4.7	R410A(HFC) GWP：2088	R1
IDFC70	50℃ 0.7MPa	1.6	4.7	7.8	R410A(HFC) GWP：2088	R1 1/2
IDFC80	50℃ 0.7MPa	2.2	6.5	10.9	R410A(HFC) GWP：2088	R2
IDFC90	50℃ 0.7MPa	3.1	9.2	15.4	R410A(HFC) GWP：2088	R2

產品特點

■Applicable for the high-temperature environments of tropical regions

■Can be used in hightemperature environments

Applicable to high-temperature environments in Southeast Asia

■Increased air flow capacity

Maximum dew point: 20°C

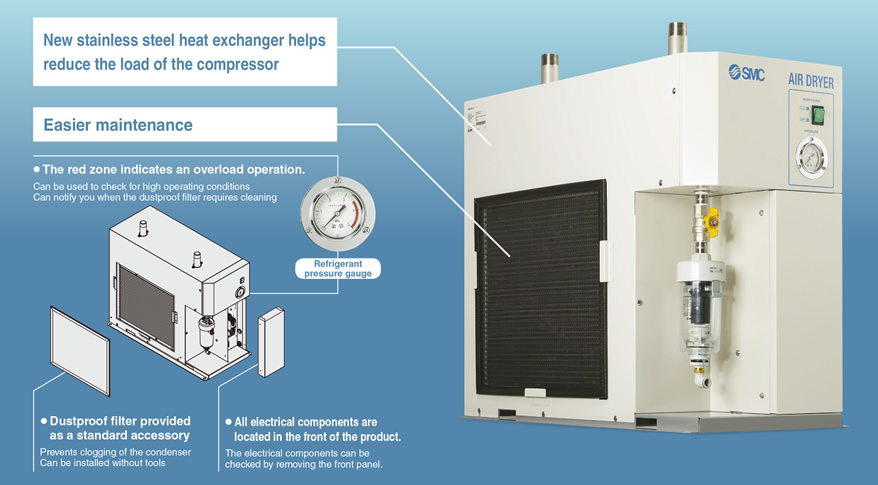

■New stainless steel heat exchanger helps reduce the load of the compressor

■Easier maintenance

● The red zone indicates an overload operation.
Can be used to check for high operating conditions Can notify you when the dustproof filter requires cleaning

■Auto Drain Valve Longer life, Higher resistance to foreign matter

■Series Variations

■Options

?Anti-corrosive treatment for copper tube
?With Chinese labels and a Chinese operation manual ［New］
?With a heavy-duty auto drain
?With an earth leakage breaker
? With a terminal block for operating, error, and remote operation signals
?With a timer controlled solenoid valve type auto drain

■Optional accessories

?Foundation bolt set
?Piping adapter
?Bypass piping set ［New］

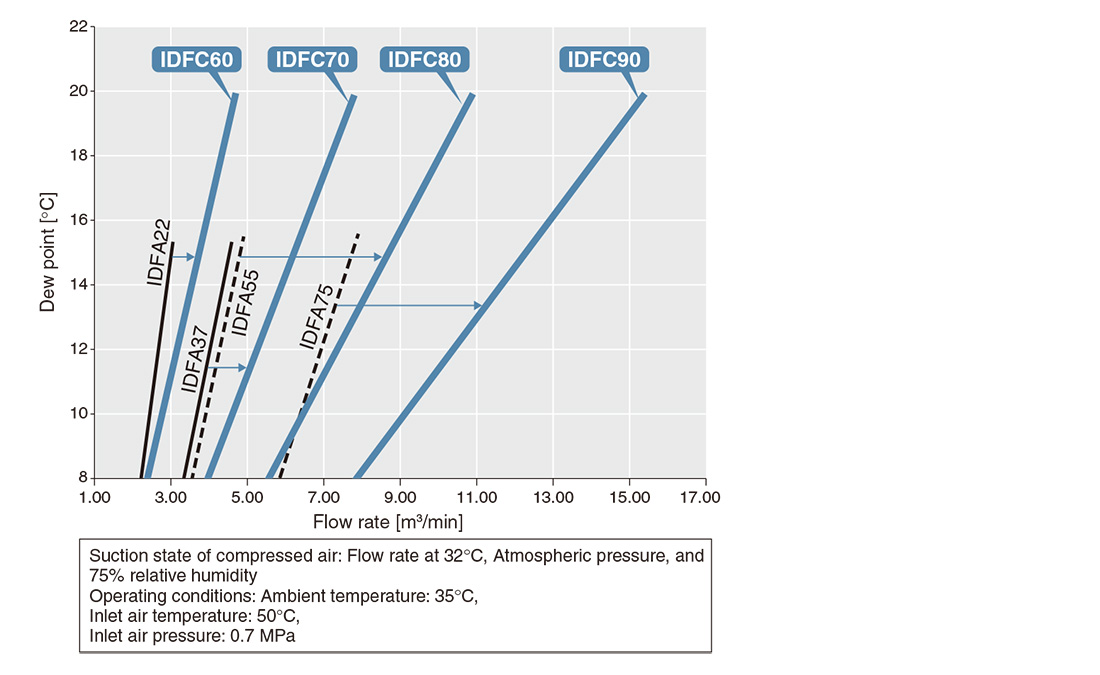

■Selecting an ideal product for maximum energy savings

By choosing a dew point that is too low, you may have selected an air dryer with higher capabilities than necessary.
Selecting a dryer with specifications appropriate for the operating environment can allow for savings in energy and space.
