Regulators
Regulator IR1200-A/2200-A/3200-A
-
?Air consumption: Bleed air “0”
?High flow rate: Up to approx.
twice that of the existing SMC product
?Lightweight: Reduced by up to approx. 27%
(Compared to the existing SMC product)
?Repeatability: ±1% (Full span)
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD2D CAD
Click here for 2D CAD
| Series | Port size | Set pressure (MPa) |
|---|---|---|
| IR1200-A | 1/8 | 0.02 to 0.2 0.02 to 0.4 0.02 to 0.8 |
| IR2200-A | 1/4 | 0.02 to 0.2 0.02 to 0.4 0.02 to 0.8 |
| IR3200-A | 1/4, 3/8, 1/2 | 0.02 to 0.2 0.02 to 0.4 0.02 to 0.8 |
Features
Reduction in air consumption: Bleed air "0"
Air consumption is reduced with a new original structure.
With this new original structure, running costs are reduced.
No fixed throttle in the new design.
Flow rate: Up to approx. twice (Compared to the current SMC product)
Weight: Reduced by up to approx. 27%
Repeatability: ±1% (Full span)
Mounting is interchangeable with the current SMC model.
Space saving
New structure without fixed throttle does not require a mist separator.
Digital pressure switch standardized
Hexagon panel nut mounting
* Interchangeable with the current SMC product
New IR can be used between a cylinder and solenoid valve.
Exhaust (EXH) directions can be selected. (Series IR3200-A)
Bottom and front exhaust added.
Application Examples

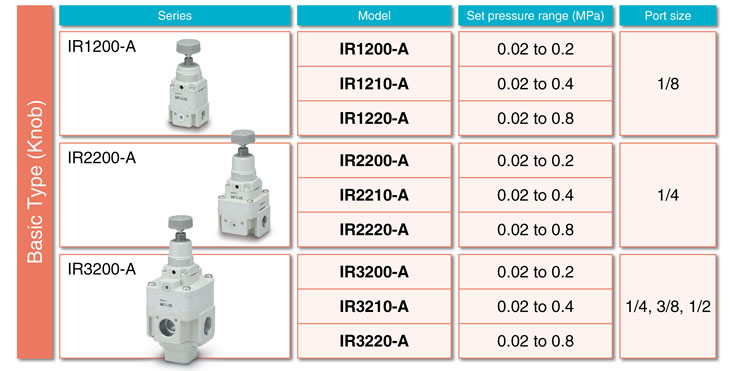

Series Variations
