Product Information ?  WEB Catalog  ? Directional Control Valves  ? Reduced-wiring Fieldbus System (Serial Transmission System)

Reduced-wiring Fieldbus System (Serial Transmission System)

Serial Transmission System EX260

    For Output

    ?The applicable protocols differ depending on the series.
     For details, refer to the catalog of each series.

    ?CC-Link IE TSN [New],Safety over EtherCAT? [New] compatible
    ?IP67
    ?RJ45 communication connectors (X205)

     ?Related Products
     ?IO-Link Master
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Serial Transmission System EX260
    Manual
    Series View search result
    EX260View search result
  • Serial Transmission System EX260
    DoC
    Series View search result
    EX260View search result
SeriesEnclosureCommunication protocol?Applicable valve
EX260IP67DeviceNet?,PROFIBUS DP,CC-Link,EtherCAT,PROFINET,EtherNet/IP?,Ethernet POWERLINK,IO-Link (Only available for SY,JSY,VQC communication connectors),CC-Link IE TSN,PROFIsafe (Only available for SY,JSY,VQC communication connectors),Safety over EtherCAT?SY3000/5000/7000 (Plug-in),JSY1000/3000/5000 (Plug-in),VQC1000/2000/4000/5000,SV1000/2000/3000,S0700(IP40)

Features

Compact design for space-saving installation: Approx. 28 mm

Narrow Space saving installation

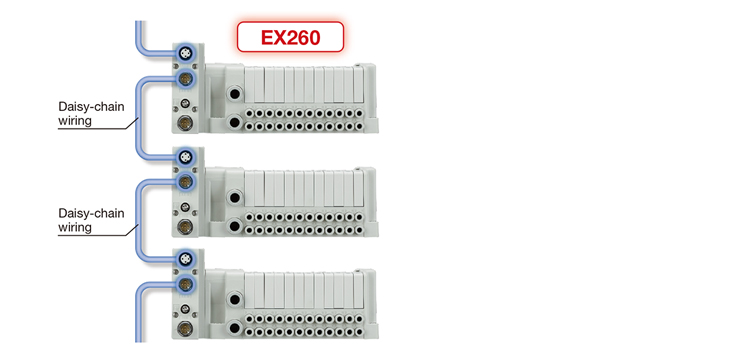

Daisy-chain wiring communication is possible.*

A branch connector is not necessary/Reduced wiring space
*Excludes the units compatible with IO-Link

  • Wiring and piping from the same direction is possible.(for side ported)

  • An external terminating resistor is not necessary.(Only available for M12 PROFIBUS DP, CC-Link communication connectors)

    ON/OFF switching is possible with an internal terminating resistor.
    An external terminating resistor is not necessary.

Product Specification Variations

Applicable Valve Series and Compatible Protocols

IO-Link compatible

Supports safety communication

| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
