Air Dryers
Refrigerated Air Dryer IDF
-
?Applicable for the high-temperature environments
Ambient temperature : Max. 45℃
Inlet air temperature : Max. 65℃
?Increased air flow capacity
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD2D CAD
Click here for 2D CAD Refrigerated Air Dryer IDF
Manual
Series View search result IDF60 View search result IDF70 View search result IDF80 View search result IDF90 View search result Refrigerated Air Dryer IDF
DoC
Series View search result IDF60 View search result IDF70 View search result IDF80 View search result IDF90 View search result
Safety Instructions Air Preparation Equipment/Precautions
Model Selection Guide/Quick Reference Guide Green Procurement (RoHS) Proposal for the Use of a Separate Refrigerated Air Dryer
Model Selection Guide/Quick Reference Guide Green Procurement (RoHS) Proposal for the Use of a Separate Refrigerated Air Dryer
| Series | Rated inlet condition | Air flow capacity (m3/min[ANR]) 50 Hz | Air flow capacity (m3/min[ANR]) 60 Hz | Refrigerant | Port size | Compressor output |
|---|---|---|---|---|---|---|
| IDF60 | 35℃ 0.7 MPa | 5.6 | 6.5 | R410A（HFC） GWP：2088 | R1 | Less than 7.5kw |
| IDF70 | 35℃ 0.7 MPa | 8 | 9.1 | R410A（HFC） GWP：2088 | R1 1/2 | Less than 7.5kw |
| IDF80 | 40℃ 0.7 MPa | 11.6 | 13.6 | R410A（HFC） GWP：2088 | R2 | Less than 7.5kw |
| IDF90 | 40℃ 0.7 MPa | 14.3 | 16.4 | R410A（HFC） GWP：2088 | R2 | Less than 7.5kw |
Features
■Applicable for the hightemperature environments
■Increased air flow capacity
■Features ①
■Features ②
■Series Variations
■Options
?Cool compressed air output ［New］
?Anti-corrosive treatment for copper tube
?With Chinese labels and a Chinese operation manual ［New］
?With a heavy-duty auto drain
?With an earth leakage breaker
? With a terminal block for operating, error, and remote operation signals
?With a timer controlled solenoid valve type auto drain
■Optional accessories
?Foundation bolt set
?Piping adapter
?Bypass piping set ［New］

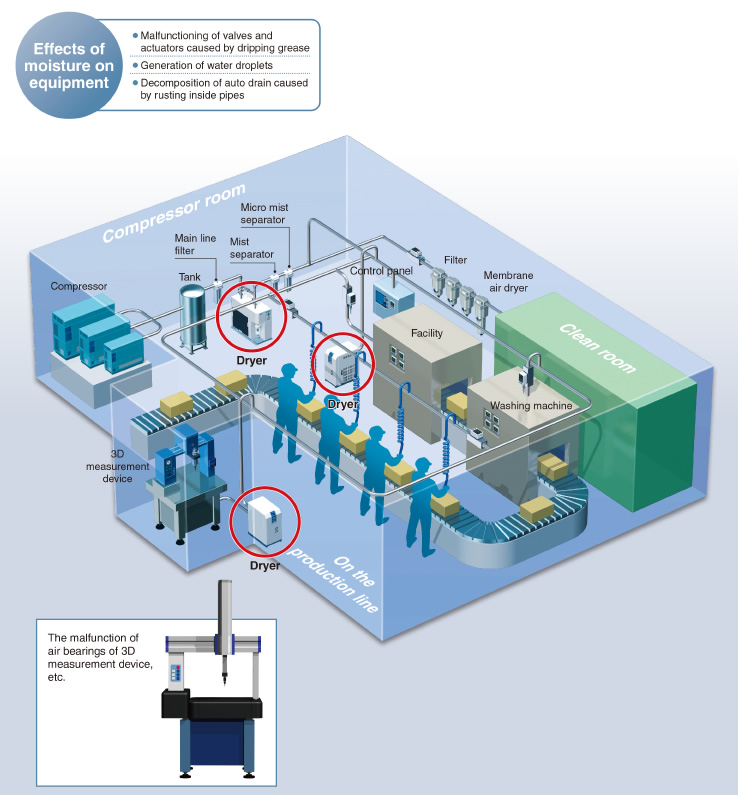

■Protect Pneumatic Equipment from Moisture!
An air dryer removes the vapor from the moist compressed air delivered by the compressor and prevents it from causing the pneumatic equipment to fail.
