WEB Catalog

Product Information ?  WEB Catalog  ? Grippers for Collaborative Robots  ? Vacuum Grippers (Ejector Type)

Vacuum Grippers (Ejector Type)

Vacuum Gripper for Collaborative Robots ZXP7□21-X1
for the FANUC CORPORATION CRX Series

    ?Plug and Play configuration for immediate use
    ?FANUC CRX plug-in software
    ?Operate by simply connecting 1 compressed air supply tube and an electrical wiring M8 connector.
    ?Integrated vacuum ejector, air supply/release valve, pressure sensor, and cups
    ?Standards: Conforming to ISO 9409-1-50-4-M6
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Vacuum Gripper for Collaborative Robots ZXP7□21-X1
    for the FANUC CORPORATION CRX Series
    Manual
    Series View search result
    ZXP7□21-X1View search result

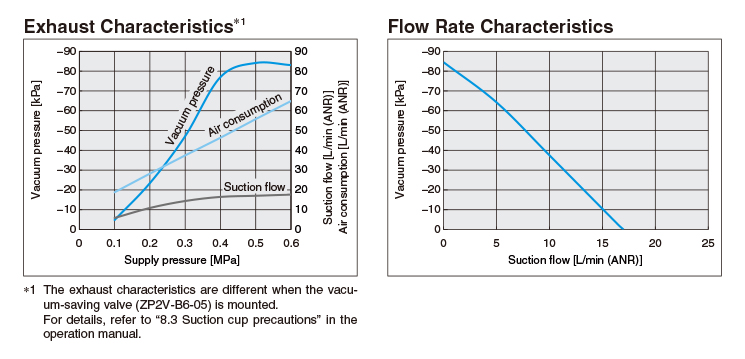

SeriesCup formCup diameterSuction flow rate
[L/min(ANR)]		Air consumption
[L/min(ANR)]
ZXP7□21-X1Flat
Flat with rib
Bellows
Thin flat
Multistage bellows
2.5-stage bellows
5.5-stage bellows		φ8 to φ321757

Features

■Vacuum Gripper for Collaborative Robots
■Operate by simply connecting 1 compressed air supply tube and an electrical wiring M8 connector.
■Integrated vacuum ejector, air supply/release valve, pressure sensor, and cups
■Standards: Conforming to ISO 9409-1-50-4-M6
■FANUC CRX Plug-in Software
■Component Parts
■Cup Variations
■The cup pitch can be changed.
■The cup with flange can be used separately
■Model Selection
■Dimensions
■FANUC CRX Plug-in Software

Easy programming

By using SMC’s vacuum gripper plug-in software, the dedicated setting window can be displayed and dedicated instructions can be executed.
The CRX plug-in software can be easily installed by inserting a USB stick containing the software (provided by SMC) into the control device.
* Please download the CRX plug-in software from the SMC website, and save it to a USB memory.

Go Top
