Air Saving Speed Controllers Air Saving Valves
Air Saving Speed Controller AS-R/AS-Q
-
?Reduce air consumption just by mounting to an air cylinder.
?Air consumption reduced by 25%
?Mounting and operation are the same as regular speed controller.
?Equal response time
No delay of response time with 2-pressure control
?Compact: 85% reduction
The functions of the regulator and speed controller have been integrated.
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD2D CAD
Click here for 2D CAD Air Saving Speed Controller AS-R/AS-Q
Manual
Type Series View search result Elbow type
With pressure reduction functionAS22R to AS42R View search result Elbow type
With rapid supply and exhaust functionAS22Q to AS42Q View search result
| Type | Series | Port size on the cylinder side | Applicable tubing O.D. Metric size | Applicable tubing O.D. Inch size |
|---|---|---|---|---|
| Elbow type With pressure reduction function | AS22R to AS42R | R, NPT, G 1/8 to 1/2 | φ6 to φ12 | φ1/4'' to φ1/2'' |
| Elbow type With rapid supply and exhaust function | AS22Q to AS42Q | R, NPT, G 1/4 to 1/2 | φ6 to φ12 | φ1/4'' to φ1/2'' |
Features
Reduce air consumption just by mounting to air cylinder
Air consumption reduced by 25%
Acquire two-pressure control just by mounting the product. Reduces the air supply pressure of the stroke on the nonworking side to 0.2 MPa.
Mounting and operation are the same as a speed controller
Equal response time
No delay of the response time with two-pressure control Improved output response at the stroke end due to rapid air-charge.
Improved response time of return stroke due to rapid air exhaust.
Compact 85*1 % reduction（Occupied volume: 230 cm3 ? 34 cm3）
The functions of the regulator and speed controller are combined.
*1 Comparison of AR20K-02-B + AS22m1F-02-08 and AS22R-02-08
Easy Adjustment
Push-lock type Only speed is adjustable.
Lurch Prevention
As this product is operated by the return stroke at a reduced pressure by the meter-in circuit, a sudden extension of the working stroke is prevented.
Variations

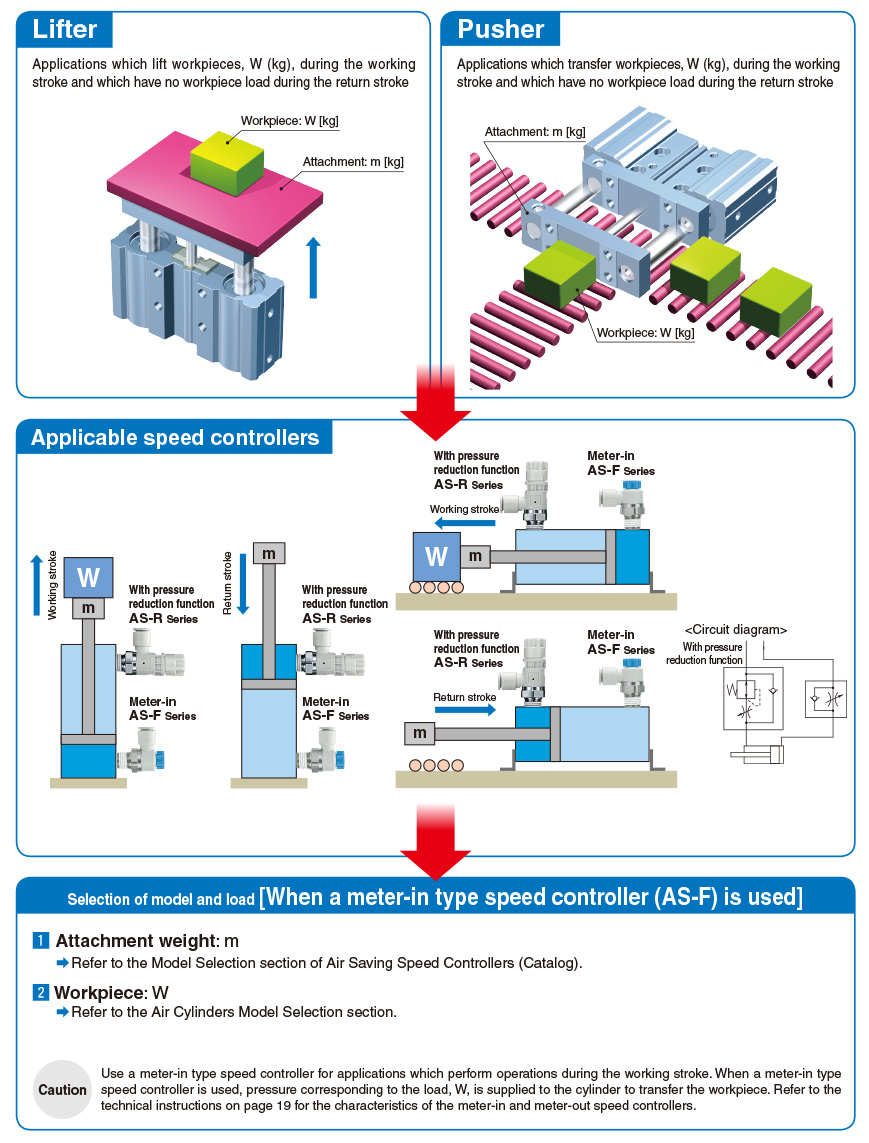

Applications and Load
Application Proposal for Air Saving Speed Controller
●Air consumption reduction ratio: 50%
* Comparison of air consumption when the supply pressure is 0.5 MPa
* In this case, the load to move the workpiece is piston area multiplied by 0.2 MPa.
●Air consumption reduction ratio: 46%
