Vacuum Saving Valves
Vacuum Saving Valve ZP2V
-
?Can restrict the reduction of vacuum pressure even when there is no workpiece
?A switching operation is not required when changing workpieces.
?Built-in filter (40 μm)

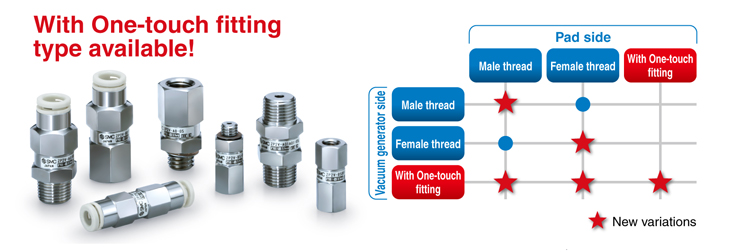

?With One-touch fittings
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD2D CAD
Click here for 2D CAD
Safety Instructions Vacuum Equipment/Precautions Series Variations/Model Selection
Green Procurement (RoHS)
Green Procurement (RoHS)
Features
■Can restrict the reduction of vacuum pressure even when there is
no workpiece.
When multiple vacuum pads are operated by one vacuum generator, and some of them are not holding the workpiece, the reduction of vacuum pressure is restricted and the workpiece can remain held by the rest of pads.
■No need for switching operation when changing work pieces
When the work pieces have different shapes, the control circuit can be simplified.
