Vacuum Pads (Vacuum Suction Cups)

Vacuum Pad ZP3C

    ?Suitable for the adsorption transfer of corrugated cardboard, etc.,
    　requiring abrasion resistance
    ?Material: FS61 (Fluoro-based rubber) improves abrasion resistance
    　? More than twice the abrasion resistance of SMC’s urethane pads
    ?Easier maintenance
    　Compatible with 2 types of mounting tools
    ?Reduced suction of foreign matter due to mesh filter
    　Reduced suction of foreign matter into the vacuum pump and ejector
    　The pad and mesh filter can be replaced without tools.
    　The separation and disposal of the metal and rubber parts is possible.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
SeriesPad formPad diameter(mm)
ZP3CFlat type with ribφ20, φ25, φ32, φ40, φ50
ZP3CBellows typeφ20, φ25, φ32, φ40, φ50

Features

Suitable for the adsorption transfer of corrugated cardboard, etc., requiring abrasion resistance

Material: FS61 (Fluoro-based rubber) improves abrasion resistance

? More than twice the abrasion resistance of SMC’s urethane pads

  • Easier maintenance

    Compatible with 2 types of mounting tools

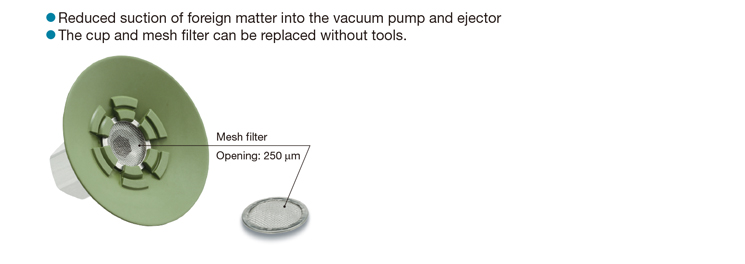

  • Reduced suction of foreign matter due to mesh filter

    Reduced suction of foreign matter into the vacuum pump and ejector
    　The pad and mesh filter can be replaced without tools.
    The separation and disposal of the metal and rubber parts is possible.

Application example

For the transfer of corrugated cardboard
