Magnet Grippers
Magnet Gripper for Collaborative Robots MHM-X7400A-DTP/HC10DT/HC10
for the YASKAWA Electric Corporation MOTOMAN-HC
-
?Attracts and holds heavy objects with a magnet
?Supports workpieces with holes and uneven surfaces
?Compact with high holding force
Holding force: Max. 200 N (?25, Workpiece thickness 6 mm)
?Continues to hold workpieces even when the air is shut off
?Operate by simply connecting 1 air supply tube and an electrical wiring connector.
?Integrated solenoid valve, auto switch, and piston speed adjustment mechanism
Magnet Gripper for Collaborative Robots MHM-X7400A-DTP/HC10DT/HC10
for the YASKAWA Electric Corporation MOTOMAN-HCManual
Series View search result MHM-X7400A-DTP
MHM-X7400A-HC10
MHM-X7400A-HC10DTView search result
| Series | Max. holding force N (Workpiece thickness mm) |
|---|---|
| MHM-X7400A-DTP MHM-X7400A-HC10 MHM-X7400A-HC10DT | 160（2） 200（6） |
Features
■Magnet Gripper for Collaborative Robots
■Attracts and holds heavy objects with a magnet
■Supports workpieces with holes and uneven surfaces
■Compact with high holding force: Max. 200 N (?25, Workpiece thickness 6 mm)
■Continues to hold workpieces even when the air is shut off
■Operate by simply connecting 1 air supply tube and an electrical wiring connector.
■Integrated solenoid valve, auto switch, and piston speed adjustment mechanism
■Component Parts
■Characteristics
Holding force
The holding force graph shows the theoretical value for low-carbon steel plates.
Holding forces vary depending on the material and shape of the workpiece. Please perform a holding test while referring to the value selected based on the graph.

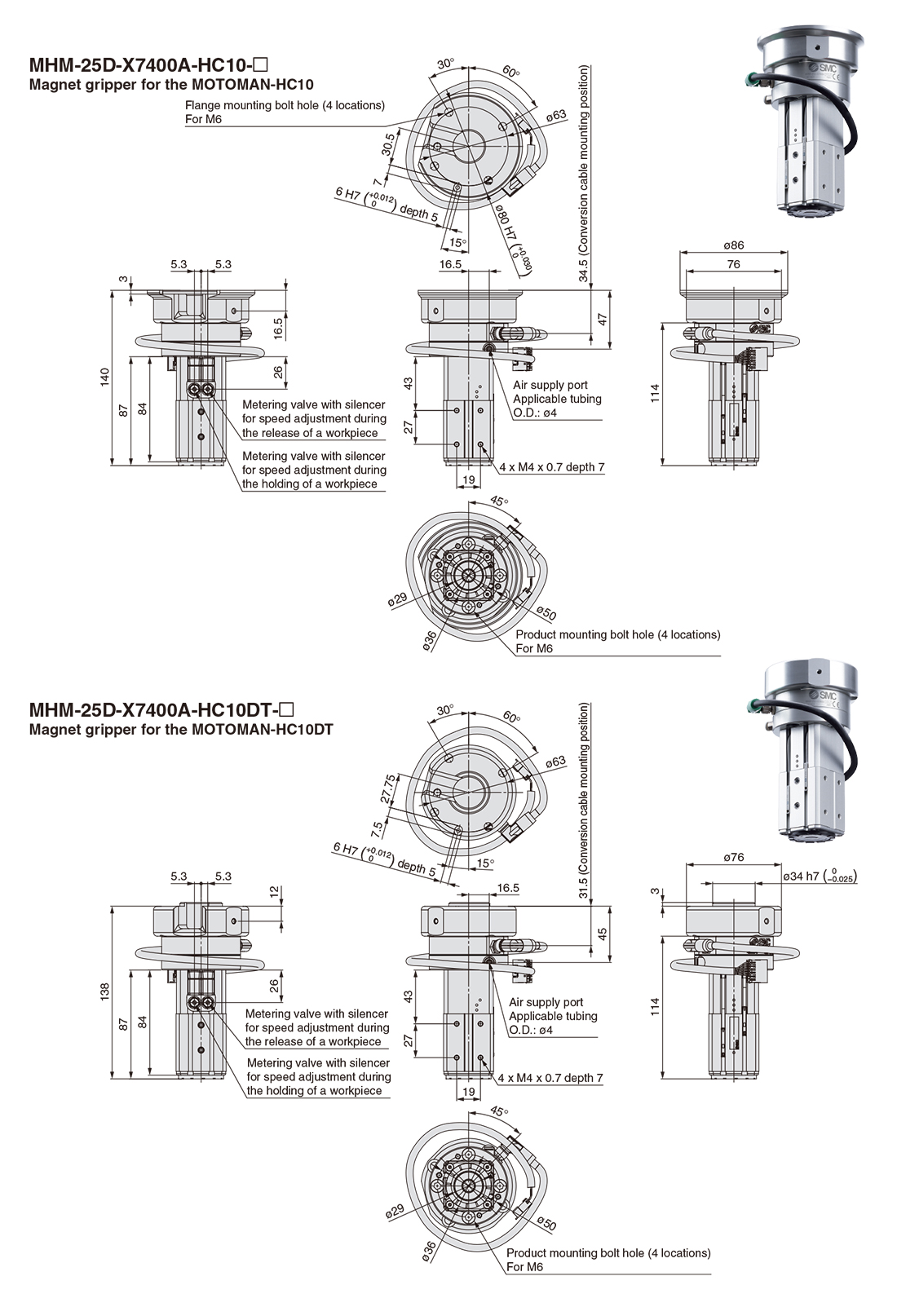

■Dimensions
