2/3 Port Solenoid Valves/Air Operated Valves

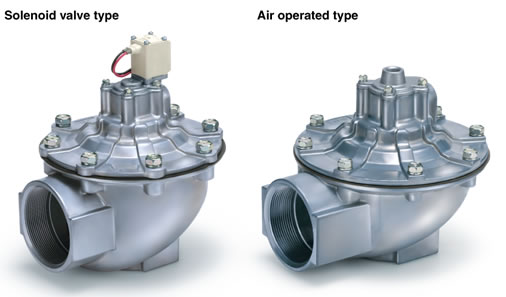

2 Port Solenoid Valve (2 Way Valve)/Air Operated Valve for Dust Collector VXF2/VXFA2
-
?Piping: Flange type, Flange body type, Direct piping type
?Orifice machining on the outlet is not necessary, so the time required for piping can be reduced.
(Flange body type)
?Enclosure: IP65＊
＊Electrical entry flat terminal type terminal is IP40.
?Applicable for high temperatures: Fluid temperature 100℃
?A flat terminal type has been added.
?The VXFC series is the designated controller.
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD2D CAD
Click here for 2D CAD 2 Port Solenoid Valve (2 Way Valve)/Air Operated Valve for Dust Collector VXF2/VXFA2
Manual
Series View search result VXF2 View search result VXFA2 View search result 2 Port Solenoid Valve (2 Way Valve)/Air Operated Valve for Dust Collector VXF2/VXFA2
DoC
Series View search result VXF2 View search result VXFA2 View search result
Safety Instructions 2 Port Solenoid Valves for Fluid Control Precautions
Model Selection/Flow Rate Characteristics
Series Variations/Selection Procedure/Solenoid Valves List/Air Operated Valves List
Green Procurement (RoHS)
Model Selection/Flow Rate Characteristics
Series Variations/Selection Procedure/Solenoid Valves List/Air Operated Valves List
Green Procurement (RoHS)
| Series | Valve type | Port size | Orifice diameter (mm?) |
|---|---|---|---|
| VXF2 | N.C. | 20A to 100A | 22 to 100 |
| VXFA2 | N.C. | 20A to 100A | 22 to 100 |
Features
■Piping
Flange type
Mounting can be changed depending on the piping conditions!
Flange body type
Orifice machining on the outlet is not necessary,
so piping man hour is reduced!
Direct piping type
■Installation Example
■Applicable for high temperature NEW
Fluid temperature：100℃
■Large port size is available
Port size 50A to 100A added

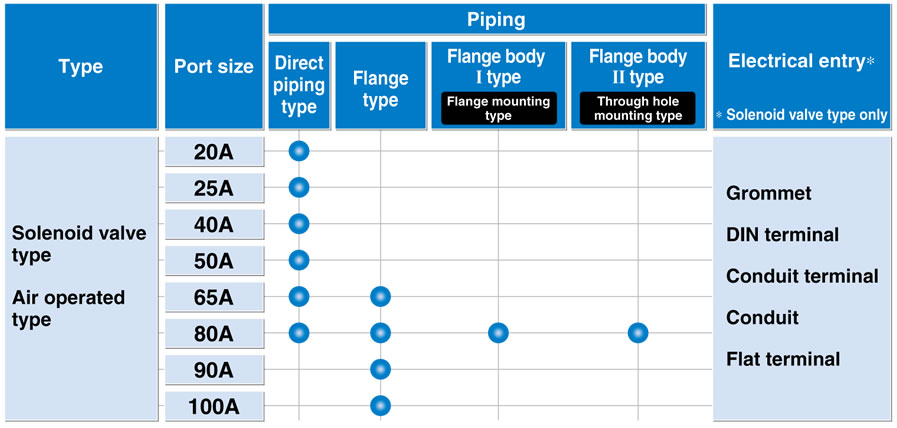

■Variations
■Other Features
Enclosure：IP65
Electrical entry flat terminal type terminal is IP40.
Power consumption：4.5W
(Except size 25)
Flat terminal type added
■Dedicated Controller For Operation/Series VXFC
The valve controller turns ON/OFF many valves for the dust controller.
Power supply voltage：85 to 240 VAC, 12 VDC, 24 to 48 VDC
Number of output points：6 output points, 10 output points
Two-time Hitting Function
A two-time hitting function is adopted to improve the bag filter dusting efficiency. Turn ON the DIP switch for two-time hitting (OFF for one-time hitting). (Effective up to the number of setting channels)
Interrupt Operation Function
Interrupting an operation from an external switch is possible using input signals.
Cascade Connection (Multiple-board connection)
VXFC10: One board allows outputs at merely 10 output points max. But the points can be increased to 20 and 30 output points by connecting cascades.
