Thermo-chiller/Dual Channel Thermo-chiller for Lasers HRL

Manual

Series	Cooling capacity	View search result
HRL100	CH1:9 kw, CH2: 1.0 kW (Max. 5.0 kW)	View search result
HRL200	CH1:9 kw, CH2: 1.0 kW (Max. 5.0 kW)	View search result
HRL300	CH1:26 kw, CH2: 1.0 kW (Max. 5.0 kW)	View search result
HRL400	CH1:26 kw, CH2: 1.0 kW (Max. 5.0 kW)	View search result

Thermo-chiller/Dual Channel Thermo-chiller for Lasers HRL

DoC

Series	Cooling capacity	View search result
HRL100	CH1:9 kw, CH2: 1.0 kW (Max. 5.0 kW)	View search result
HRL200	CH1:9 kw, CH2: 1.0 kW (Max. 5.0 kW)	View search result
HRL300	CH1:26 kw, CH2: 1.0 kW (Max. 5.0 kW)	View search result
HRL400	CH1:26 kw, CH2: 1.0 kW (Max. 5.0 kW)	View search result

Safety Instructions　Temperature Control Equipment/Precautions　Features/Series Variations
Technical Data　Can be used in a wide range of applications!
Temperature Control Equipment Warranty　Green Procurement (RoHS)

Series	Set temperature range	Cooling capacity	Temperature stability	Cooling method	Circulating fluid
HRL100	CH1: 15 to 35℃ CH2: 10 to 40℃	CH1:9 kw, CH2: 1.0 kW (Max. 5.0 kW)	CH1:±0.1, CH2:±0.5	Air-cooled refrigeration, Water-cooled refrigeration	Tap water, Deionized water
HRL200	CH1: 15 to 35℃ CH2: 10 to 40℃	CH1:9 kw, CH2: 1.0 kW (Max. 5.0 kW)	CH1:±0.1, CH2:±0.5	Air-cooled refrigeration, Water-cooled refrigeration	Tap water, Deionized water
HRL300	CH1: 15 to 35℃ CH2: 10 to 40℃	CH1:26 kw, CH2: 1.0 kW (Max. 5.0 kW)	CH1:±0.1, CH2:±0.5	Air-cooled refrigeration	Tap water, Deionized water
HRL400	CH1: 15 to 35℃ CH2: 10 to 40℃	CH1:26 kw, CH2: 1.0 kW (Max. 5.0 kW)	CH1:±0.1, CH2:±0.5	Air-cooled refrigeration	Tap water, Deionized water

Features

Temperatures for 2 fluid channel systems can be controlled individually by one chiller.

Space saving, Reduced wiring

Space saving

Keeping the size similar to the (HRSH series) single chiller, the temperature of 2 fluid channel systems are controlled individually.
Reduced wiring/labor

One power supply system for temperature control of 2 channels Less work-hour for wiring

Energy saving

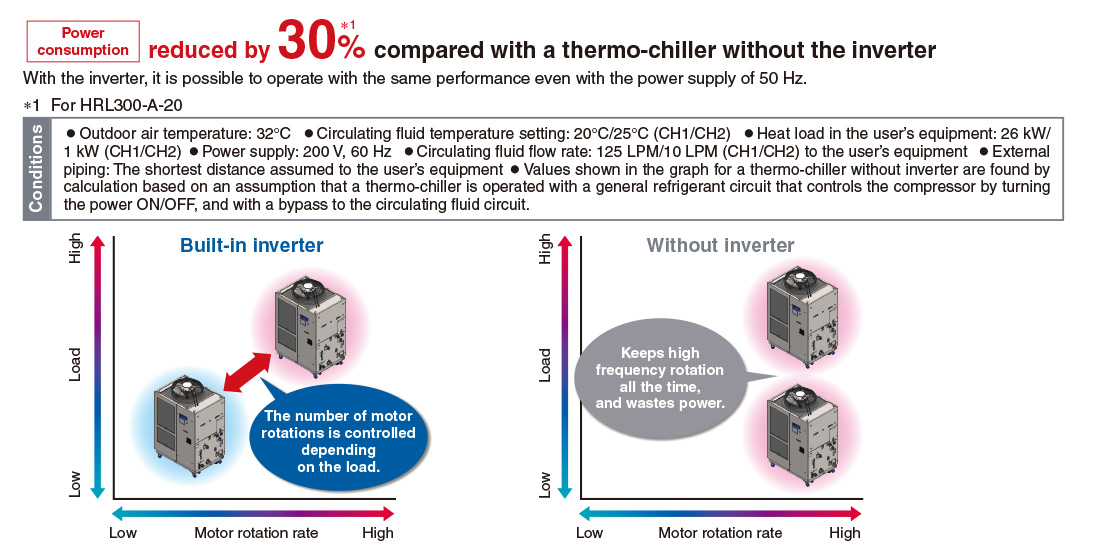

●Inverter control
The inverter respectively controls the number of motor rotations of the compressor, fan and pump depending on the load from the user’s equipment.

●Circulating fluid can be heated without a heater. (Circulates the hot discharged gas through expansion valve B)

One compressor controls 2 channels.

Temperature stability: ±0.1℃ (CH1) When a load is stable

By controlling the inverter compressor, inverter fan, and electronic expansion valve simultaneously, it maintains the good temperature stability when the heat load fluctuates.

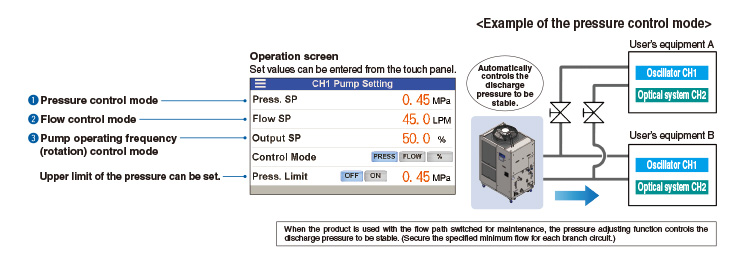

3 operation modes of the circulating fluid pump

The pump operation mode can be selected by the touch panel.

Reduced maintenance hours for the pump

Both channels use the mechanical sealless type pump. As the pump has no external leakage of the circulating fluid, a periodic check of the pump leakage and replacement of the mechanical seal are not necessary.
