Controllers/Drivers
Programless Controller (With Stroke Study) LECP2
-
?End to end operation similar to an air cylinder
?Positioning of 2 stroke end points + 12 intermediate points
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD Programless Controller (With Stroke Study) LECP2
Manual
Type Series View search result Programless type
(With stroke study)LECP2 View search result
Safety Instructions Electric Actuators/Precautions Features
Series Variations Simplified Selection Flow Chart Green Procurement (RoHS) CE/UL-compliance List
Series Variations Simplified Selection Flow Chart Green Procurement (RoHS) CE/UL-compliance List
| Type | Series | Compatible motor | Power supply voltage | Parallel I/O Input | Parallel I/O Output | Number of step data |
|---|---|---|---|---|---|---|
| Programless type (With stroke study) | LECP2 | Step motor (Servo/24 VDC) | 24 VDC ±10% | 6 (Photo-coupler isolation) | 6 (Photo-coupler isolation) | 2 stroke end points, 12 intermediate points |
Features
Compact, Low Profile
Table height: 28mm (For LEMC/H/HT, size 25)
Table height reduced by using belt drive and offset guide.
Guide mechanism can be selected.
Selectable controllability (Controller)
?End to end operation similar to an air cylinder (12 intermediate stop positions)
?Easy position setting using numerical inputs
?Mounting interchangeable with the conventional E-MY series
?Can be connected to various types of guide. (Series LEMB)
?Easy maintenance (Series LEMC/H/HT)
The drive unit and the guide unit are separable.
?Motor Placement: Mounting position of the motor is user selectable and can either be on the top, bottom, left, or right of the actuator.
?Solid state auto switch can be mounted for checking the limit and intermediate signal.
Application Examples
Programless Type (With Stroke Study) Series LECP2
Stroke end operation similar to an air cylinder is possible.
Programless Type Series LECP1
No Programming
Capable of setting up an electric actuator operation without using a PC or teaching box.
Step Data Input Type Series LECP6
Simple Setting to Use Straight Away

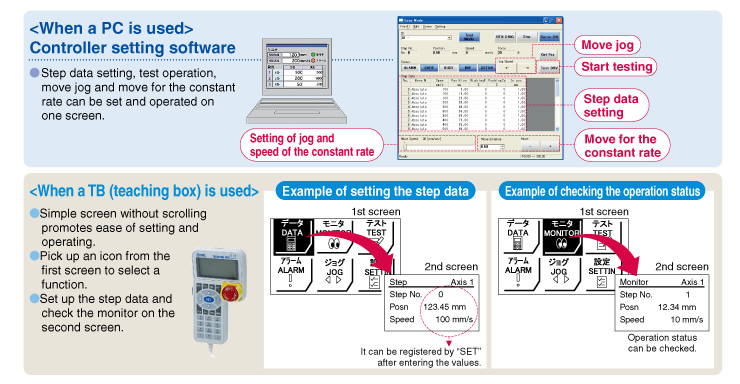

●Easy Mode for Simple Setting
If you want to use it right away, select "Easy Mode."
●Normal Mode for Detailed Setting
Select normal mode when detailed setting is required.
?Step data can be set in detail.
?Signals and terminal status can be monitored.
?Parameters can be set.
?JOG and constant rate movement, return to origin, test operation and testing of forced output can be performed.
Series Variations
