WEB Catalog

Product Information ?  WEB Catalog  ? Flow Control Equipment  ? Speed Controllers for General Purposes

Speed Controllers for General Purposes

Uni Elbow Type/Universal Type/Push-lock Type AS

    ?Easy to lock push-lock type
    ?Larger knob
    ?Improved tube insertion/removal
    　Insertion force: Max. 30% (8 N) reduction
    　Removal force: Max. 20% (5 N) reduction*
    ?Electroless nickel plated type is standard.
    ?360° swivel piping is possible. (Universal type)

    * Tube removal strength is ensured to be equivalent to the previous model.
TypeSeriesPort size
on the
cylinder side		Applicable tubing O.D.
Metric size		Applicable tubing O.D.
Inch size
Elbow type
Uni thread		AS22□1F to 42□1FUni 1/8 to 1/2φ3.2 to φ16φ1/8'' to φ1/2''
Universal type
Uni thread		AS23□1F to 43□1FUni 1/8 to 1/2φ3.2 to φ12φ1/8'' to φ1/2''

Features

Reduces labor time!

Push-lock type Easy to lock

Easy tool-less one push-lock

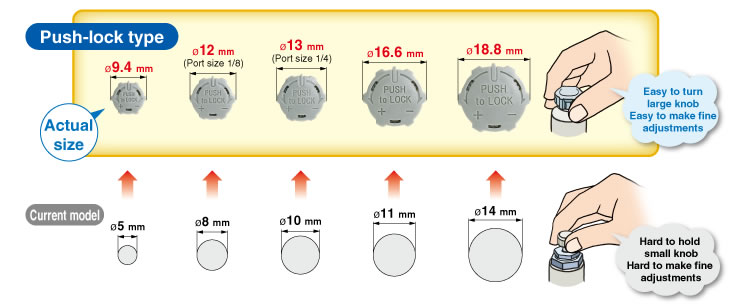

Larger handle

Easy to turn large knob

Improved tube insertion/removal

More space beneath the tube. Easier installation/removal of the tube.

Flow rate reproducibility

New type added!

Easy identification of product type

Series Variations

Electroless nickel plating type is standardized.

Stainless steel type is standardized.

G thread (face seal) is standardized.
