WEB Catalog

Product Information ?  WEB Catalog  ? Process Valves  ? Coolant Valves

Coolant Valves

High Pressure Coolant Valve SGH

    ?Max. operating pressure: 3 MPa, 7 MPa, 10 MPa [New], 14 MPa [New]
    ?Applicable to high-speed grinding and long drilling processes
    ?Coolant valve for high-pressure coolant liquid that is ideal for lubrication, dust blowing, and cooling
    ?Service life: 3 million cycles (Based on SMC's test conditions)
    ?Water hammer: Reduced by 20% (Compared to existing model, VNH series)
    ?Power consumption: 0.35 W (24 VDC, V116)
    ?The 3-port dual pressure type has been standardized.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • High Pressure Coolant Valve SGH
    DoC
    Series View search result
    SGHView search result
SeriesValve typePort sizeOrifice diameter (mm?)
SGHN.C./N.O.3/8 to 17.5 to 15.9

Features

Max. operating pressure: 3 MPa, 7 MPa, 10 MPa, 14 MPa

Applicable to high-speed grinding and long drilling processes

Coolant valve for high-pressure coolant liquid that is ideal for lubrication, dust blowing, and cooling

Features

Variations

Electrical entry

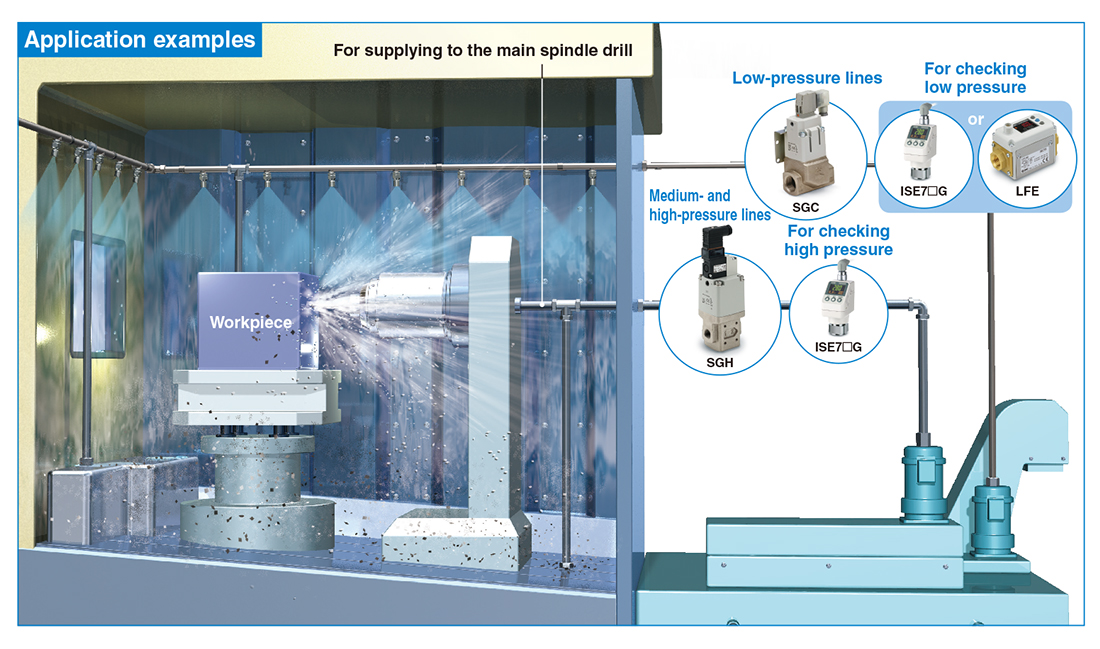

Application examples

Application examples

Go Top
