Lock Cylinders/Cylinder with An End Lock
Compact Guide Cylinder with Lock MLGP
-
?Stopping possible at any stroke position
Drop prevention when the pressure is decreased or the residual pressure is released
?Weight reduced by up to 17% with a shorter guide rod and thinner plate
Guide rod: Max. 22 mm shorter (Compared with the existing MLGPM)
?Small auto switches or magnetic field-resistant auto switches can be directly mounted on two surfaces.
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD Compact Guide Cylinder with Lock MLGP
Symbol Specifications Download -XA1?6?17?21 Simple Specials MGP/MGQ:Change of guide rod end shape PDF -XC79 Simple Specials Tapped hole drilled hole pinned hole machined additionally PDF
Safety Instructions Actuators/Precautions Auto Switches/Precautions
Model Selection/Technical Data Green Procurement (RoHS)
Model Selection/Technical Data Green Procurement (RoHS)
| Type | Bearing | Series | Action | Bore size (mm) | Lock mechanism |
|---|---|---|---|---|---|
| Standard | Slide bearing | MLGPM | Double acting | 20，25，32，40 50，63，80，100 | Spring lock |
| Standard | Ball bushing bearing | MLGPL | Double acting | 20，25，32，40 50，63，80，100 | Spring lock |
Features
-
WEB Catalog
Directional Control Valves
Air Cylinders
Rotary Actuators ⁄
Air Grippers
Electric Actuators
Vacuum Equipment
Air Preparation Equipment
Modular F.R.L. ⁄ Pressure Control Equipment
Fittings and Tubing
Flow Control Equipment
Switches ⁄ Sensors
Process Valves
Temperature Control Equipment
Static Neutralization Equipment
Silencers ⁄
Pressure Gauges ⁄
Blow Guns
Equipment list
-New Products
-Product Selection Guide
-Solutions by Theme
-Introduction of Products by
Theme ⁄ Industry
Vacuum Equipment
Temperature Control Equipment
Static Neutralization Equipment
Electric Actuators
Switch ? Sensor
Theme ⁄ Industry
Maintenance Parts List
Technical Information ⁄ Glossary of Terms
Simple Specials System
Manifold Specifications
Green Procurement Handling Precautions for SMC Products
Green Procurement Handling Precautions for SMC Products
-About SMC ⁄
Corporate Activities -Investor Relations -Sustainable Management of CO2 -Business Continuity Plan
Quality assurance
Corporate Activities -Investor Relations -Sustainable Management of CO2 -Business Continuity Plan
New Products
Product Information »
New Products
- Air Management System
- Directional Control Valves
- Actuators
- Rotary Actuators/
Air Grippers - Vacuum Equipment
- Compact Compressor
- Air Preparation Equipment
- Modular F.R.L./
Pressure Control Equipment - Fittings and Tubing
- Flow Control Equipment
- Silencers/Exhaust Cleaners/Blow Guns
- Pressure and Flow
Sensors/Switches - Static Neutralization
Equipment - Process Valves
- Chemical Valves/
Fittings&Tubing/
Needle Valves - Process Gas Equipment
- Process Pumps
- Temperature Control Equipment
- Electric Actuators
- High Vacuum Equipment
- Industrial Filters
- Pneumatic Instrumentation Equipment
Compact Guide Cylinder with Lock
?20, ?25, ?32, ?40, ?50, ?63, ?80, ?100
MLGP-Z Series Dec-18
?20, ?25, ?32, ?40, ?50, ?63, ?80, ?100
MLGP-Z Series Dec-18
- Stopping possible at any stroke position.
Drop prevention when the pressure is decreased or the residual pressure is released. - Weight reduced by up to 17% with a shorter
guide rod and thinner plate
Guide rod: Max. 22 mm shorter (Compared with the existing MLGPM) - Small auto switches or magnetic field-resistant auto switches can be directly mounted on two surfaces.
Product Features
■Stopping possible at any stroke position
Simple and reliable locking mechanism is effective in drop prevention when there is a pressure loss.
Low profile with compact lock unit

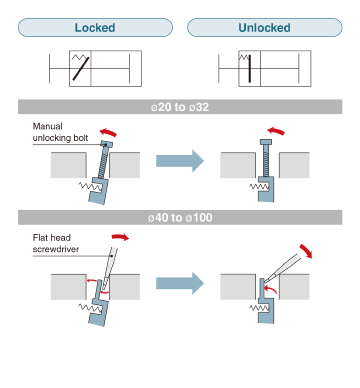

Easy manual unlocking
Locking direction is selectable.
? The symbol for the cylinder with lock in the pneumatic circuit uses SMC original symbol.

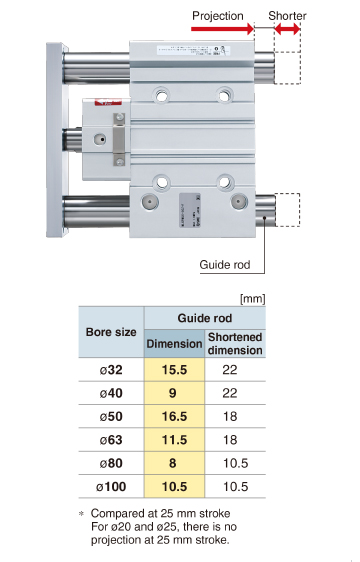

■Weight reduced by up to 17% with a shorter
guide rod and thinner plate
Weight: Max. 17% lighter
（Compared with the existing MLGPL）
Guide rod: Max. 22 mm shorter
（Compared with the existing MLGPM）
Small auto switches or magnetic field-resistant auto switches can be directly mounted on two surfaces.

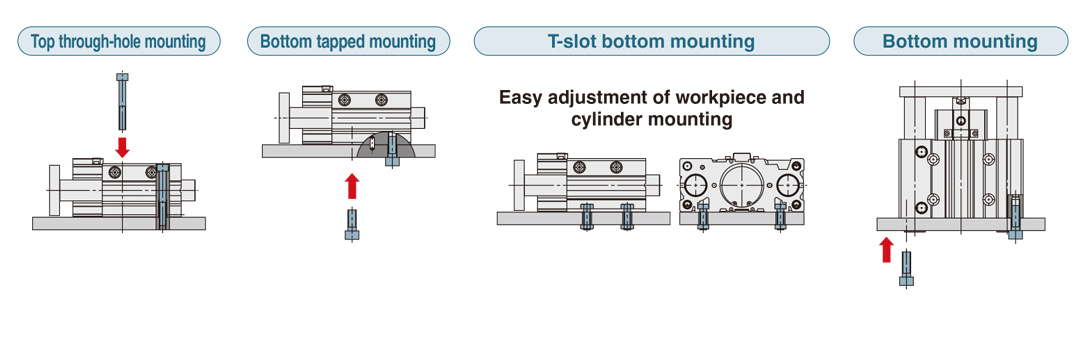

Four types of mounting
Positioning holes are available on three surfaces.
?Easy positioning ?Knock pin holes provided on each mounting surface
Piping is possible from two directions.
Two types of guide rod bearing
■Series Variations
Copyright © SMC Corporation. All Rights Reserved.
