WEB Catalog

Product Information ?  WEB Catalog  ? Air Preparation Equipment  ? Auto Drains/Differential Pressure Gauges

Auto Drains/Differential Pressure Gauges

Auto Drain Valve AD402-A

    ?Improved foreign matter resistance
    ?Increase in condensate discharge
    　Drain discharge: Max. 100 cm3/cycle (3 times that of the existing model)
    ?Improved environmental resistance: Transparent bowl guard can protect the inner
    　bowl
    ?Improved visibility: 360°
    ?Lightweight: Weight reduced by 22%
    ?Reduced required maintenance space
    ?Easier maintenance
    　One-touch mounting and removal of the bowl is possible without using any tools.
    ?Bowl material can be selected according to the operating environment.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
SeriesPort sizeDrain port size
AD402-A1/4, 3/8, 1/23/8

Features

Longer life & Higher resistance to foreign matter

Lightweight

Resin bowl guard has reduced the weight by 22%

Easier maintenance

One-touch mounting and removal of the bowl is possible without using a tool.

Release the lock by sliding the lock button down while holding the body.
Then, rotate the bowl guard and pull down for removal.

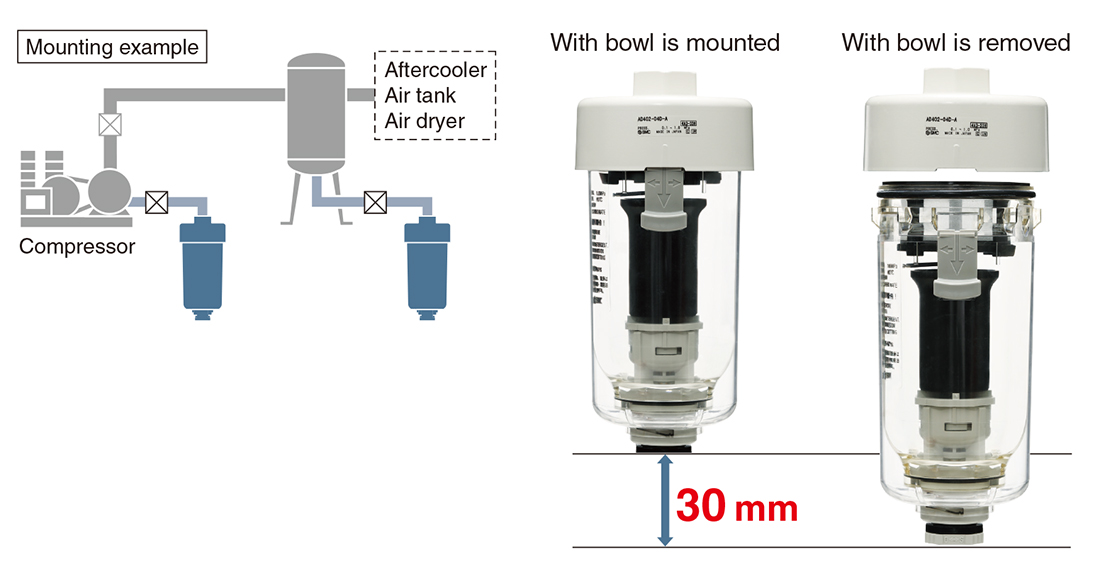

Reduced required maintenance space

Only 30 mm of space is required underneath for maintenance, allowing more compact installation.

Selectable piping direction

Transparent bowl guard

Better environmental resistance: Transparent bowl guard can protect theinner bowl!

Windows on the bowl guard have been removed and the inner bowl isinstead covered with a polycarbonate transparent bowl guard. Now, even ifthe environment changes and the bowl is exposed to corrosive chemicalor oil splash, the foreign matter will not stick directly to the pressurizedbowl. This can reduce risk of bowl breakage.

Options
