WEB Catalog

Product Information ?  WEB Catalog  ? Air Cylinders  ? Table Cylinders

Table Cylinders

Compact Cylinder with Linear Guide MXZ

    ?Compact: Overall length: 49.5 mm, Width: 30 mm
    ?The integration of the linear guide and the cylinder allows for reduced design and assembly time.
    ?Lightweight workpieces such as electronic boards can be stopped, positioned, and clamped.
    ?Port location selectable
    ?Auto switch mountable on 3 surfaces
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Compact Cylinder with Linear Guide MXZ
    Manual
    Type Series Action Bore size (mm) View search result
    StandardMXZDouble acting12, 16, 20, 25View search result
TypeSeriesActionBore size (mm)
StandardMXZDouble acting12, 16, 20, 25

Features

■Compact Overall length: 49.5 mm, Width: 30 mm

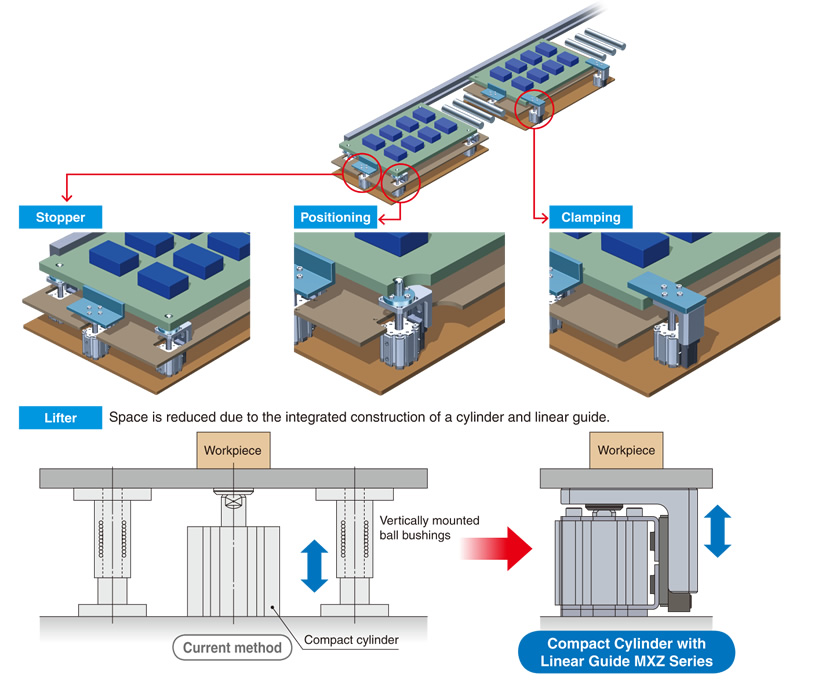

●Design and assembly time is reduced due to integration of a linear guide to the cylinder.
●Lightweight workpieces such as electronic boards can be stopped, positioned and clamped.

●Compact and Space-saving

■Mounting
■Port Location Selectable
■Auto Switch Mountable on 3 Surfaces (For ?20, ?25)
■Application Examples

Lightweight workpieces such as electronic boards can be stopped, positioned and clamped with high accuracy.

■Variations
