WEB Catalog

Product Information ?  WEB Catalog  ? Switches/Sensors/Controller  ? Electronic Flow Switches/Sensors

Electronic Flow Switches/Sensors

Digital Flow Switch Manifold for Water PF3WB/C/S/R

    ?Applicable fluid: Water, Ethylene glycol aqueous solution
    ?Space saving
    　Footprint Max. 85% reduction
    　Weight Max. 65% reduction
    ?Needs no piping: Work-hour for installation reduced by up to 45%
    ?IO-Link compatible
    ?3-color/2-screen display
    ?Fluid temperature: 0 to 90℃

    　?IO-Link Master
SeriesRated flow range (L/min)
PF3WB
Integrated type (Basic type)		0.5 to 4
2 to 16
5 to 40
PF3WC
Integrated type (Straight type)		0.5 to 4
2 to 16
5 to 40
PF3WS
Remote type (Supply type)		0.5 to 4
2 to 16
5 to 40
PF3WR
Remote type (Return type)		0.5 to 4
2 to 16
5 to 40

Features

Space saving

Footprint Max. 85% reduction, Weight Max. 65% reduction

Variations

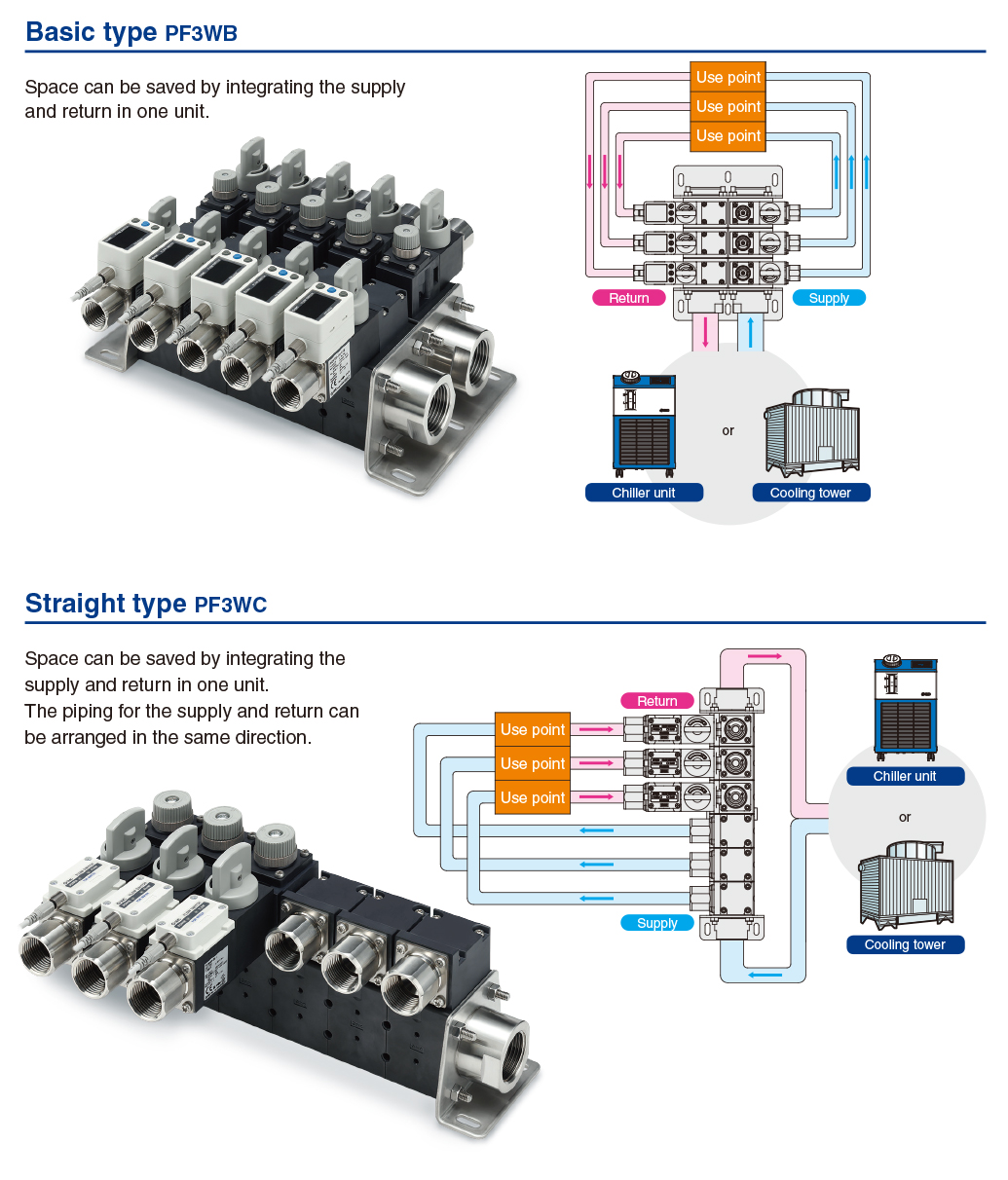

Integrated type and Remote type. Select the flow switch according to your requirements.

●Integrated Type

●Remote Type

  • 3-color/2-screen display

  • Fluid temperature: 0 to 90℃



    Ethylene glycol aqueous solution can be used.



    Non-grease

IO-Link Compatible

Parts Descriptions and Functions (Integrated Type / Basic Type Construction)
