WEB Catalog

Product Information ?  WEB Catalog  ? Static Neutralization Equipment  ? Static Neutralization Equipment Ionizer Bar Type

Static Neutralization Equipment Ionizer Bar Type

Separate Controller Ionizer / Slim Bar Type IZT44/45

    ?Powerfully eliminates static electricity from highly charged workpieces
    　Pulse AC type, High density emitter arrangement (6 times the number of emitters?)
    * Compared to the existing model
    ?Can be mounted in a narrow space (Height 23 mm x Width 20 mm)
    　Can be installed through gaps between equipment
    　Improved installation, replacement, and maintenance in narrow spaces
    ?Powerful static elimination is possible without air supply.
    ?High speed static elimination: Discharge time reduced by approx. 60%
    ?2-way directional static elimination using branch cables
    　2 ionizer bars can be connected to one high voltage power supply.
    ?Up to 4 high voltage power supply modules can be connected to one controller. (IZT45)
    ?Flexible layout possible with various module connection methods (IZT45)
    　Controller to Bar maximum installation distance: 15 m
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Separate Controller Ionizer / Slim Bar Type IZT44/45
    Manual
    Series Type View search result
    IZT44 Slim bar typeSeparate controllerView search result
    IZT45 Slim bar typeSeparate controllerView search result
  • Separate Controller Ionizer / Slim Bar Type IZT44/45
    DoC
    Series Type View search result
    IZT44 Slim bar typeSeparate controllerView search result
    IZT45 Slim bar typeSeparate controllerView search result
SeriesTypeIon generation methodFunction
IZT44 Slim bar typeSeparate controllerCorona discharge typeHigh voltage error detection
Output check
IZT45 Slim bar typeSeparate controllerCorona discharge typeAuto balance
Maintenance detection
High voltage error detection
Ion generation stop signal
Output check

Features

Powerfully eliminates static electricity from highly charged workpieces

Can be mounted in a narrow space

Powerful static elimination Pulse AC type, High density emitter arrangement (6 times the number of emitters※1)

※1 Compared to the existing model

Powerful static elimination is possible without air supply.

High speed static elimination

Compact design allows close installation in narrow spaces.



2-way directional static elimination using branch cables

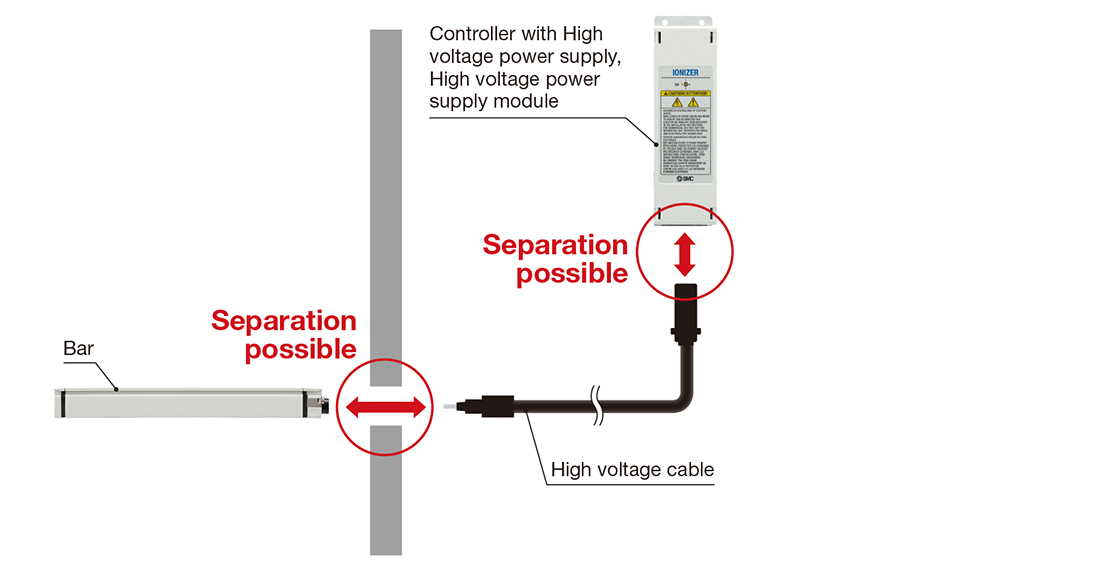

Improved maintainability

2 types of controllers are available.

Up to 4 high voltage power supply modules can be connected to one controller.　IZT45

Flexible layout possible with various module connection methods　IZT45

Can be installed through gaps between equipment

Improved installation, replacement, and maintenance in narrow spaces

Related Products

Functions

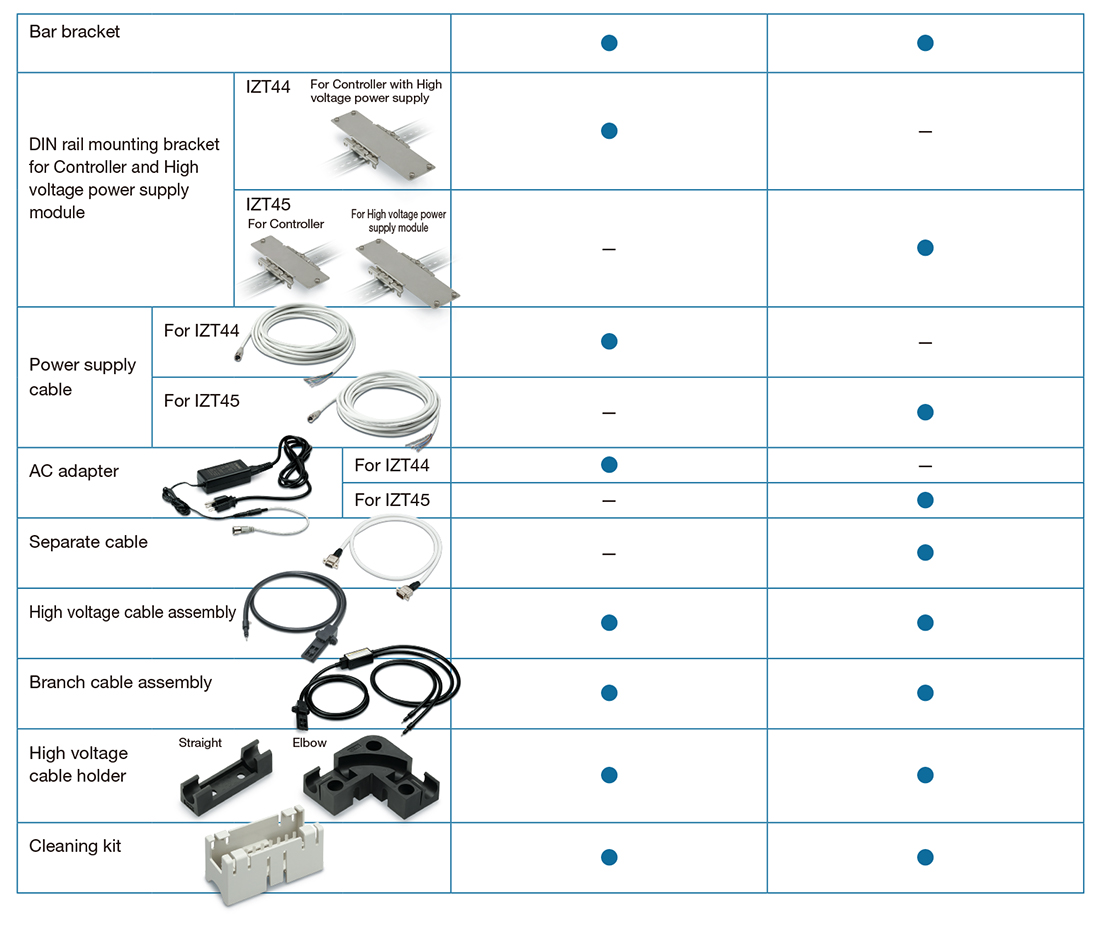

Accessories, Optional Parts

Application Examples
