2/3 Port Solenoid Valves/Air Operated Valves

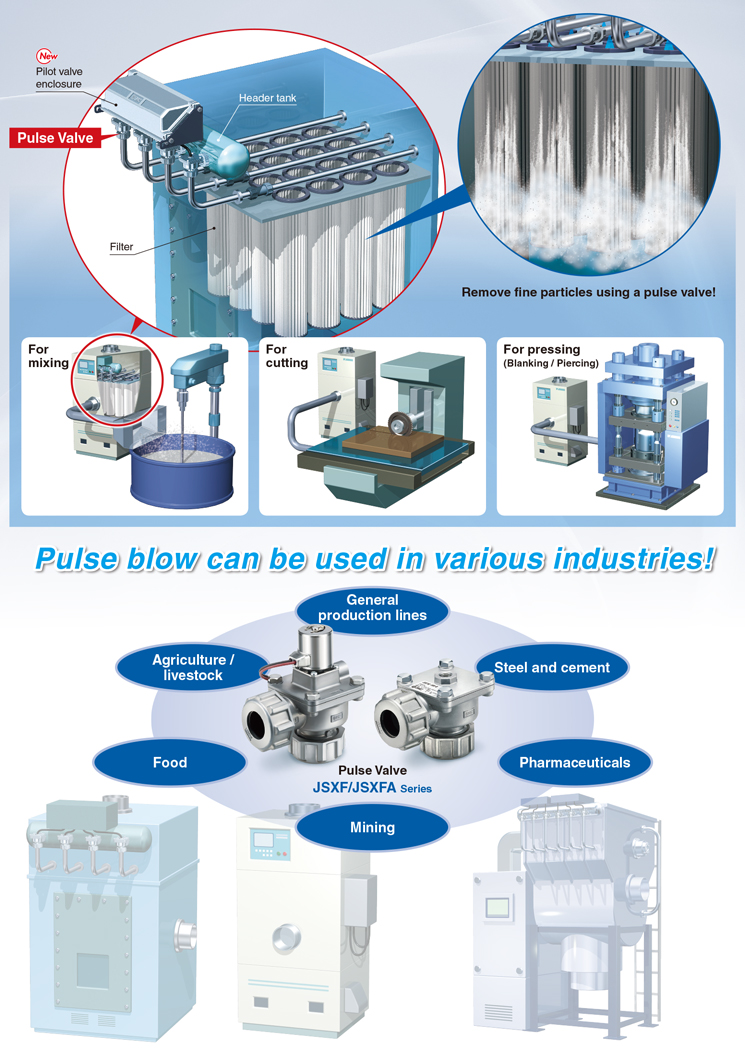

Pulse Valve (Valve for Dust Collector) JSXF/JSXFA

CAD
Manual

2D/3D CAD

The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD

2D CAD
Click here for 2D CAD
Pulse Valve (Valve for Dust Collector) JSXF/JSXFA

Manual

Series View search result

JSXF
Solenoid valve
JSXF-P
Solenoid valve
SMARTVENT type View search result
JSXFA
Air operated

Series	View search result
JSXF Solenoid valve
JSXF-P Solenoid valve SMARTVENT type	View search result
JSXFA Air operated

Safety Instructions　2 Port Solenoid Valves for Fluid Control Precautions
Green Procurement (RoHS)

Series	Valve type	Port size	Piping	Orifice diameter (mm?)
JSXF Solenoid valve	N.C.	3/4（20A） 1（25A） 1 1/2（40A） 2（50A）	Compression fitting type Direct piping type (Rc, NPT, G) Immersion type	32, 40, 45, 50, 55 (?55 is only available for the immersion type.)
JSXF-P Solenoid valve SMARTVENT type	N.C.	3/4（20A） 1（25A） 1 1/2（40A） 2（50A）	Compression fitting type Direct piping type (Rc, NPT, G) Immersion type	32, 40, 45, 50, 55 (?55 is only available for the immersion type.)
JSXFA Air operated	N.C.	3/4（20A） 1（25A） 1 1/2（40A） 2（50A）	Compression fitting type Direct piping type (Rc, NPT, G) Immersion type	32, 40, 45, 50, 55 (?55 is only available for the immersion type.)
