SI Unit
Serial Transmission System EX260
-
For Output
?The applicable protocols differ depending on the series.
For details, refer to the catalog of each series.
?IP67
?RJ45 communication connectors (X205)
?Related Products
?IO-Link Master
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD2D CAD
Click here for 2D CAD Serial Transmission System EX260
Manual
Series View search result EX260 View search result Serial Transmission System EX260
DoC
Series View search result EX260 View search result
Safety Instructions 3/4/5 Port Solenoid Valves/Precautions Fieldbus System Precautions
Industrial IoT Cybersecurity Glossary of Fieldbus Terms Series Variations/Applicable Valve Series Safety over Fieldbus with PROFIsafe Green Procurement (RoHS) IO-Link Master
Industrial IoT Cybersecurity Glossary of Fieldbus Terms Series Variations/Applicable Valve Series Safety over Fieldbus with PROFIsafe Green Procurement (RoHS) IO-Link Master
| Series | Enclosure | Communication protocol? | Applicable valve |
|---|---|---|---|
| EX260 | IP67 | DeviceNet? PROFIBUS DP CC-Link EtherCAT PROFINET EtherNet/IP? Ethernet POWERLINK IO-Link (Only available for SY, JSY, VQC communication connectors) PROFIsafe (Only available for SY, JSY, VQC communication connectors) | SY3000，5000，7000 (Plug-in) JSY1000，3000，5000 (Plug-in) VQC1000，2000，4000，5000 SV1000，2000，3000 S0700（IP40） |

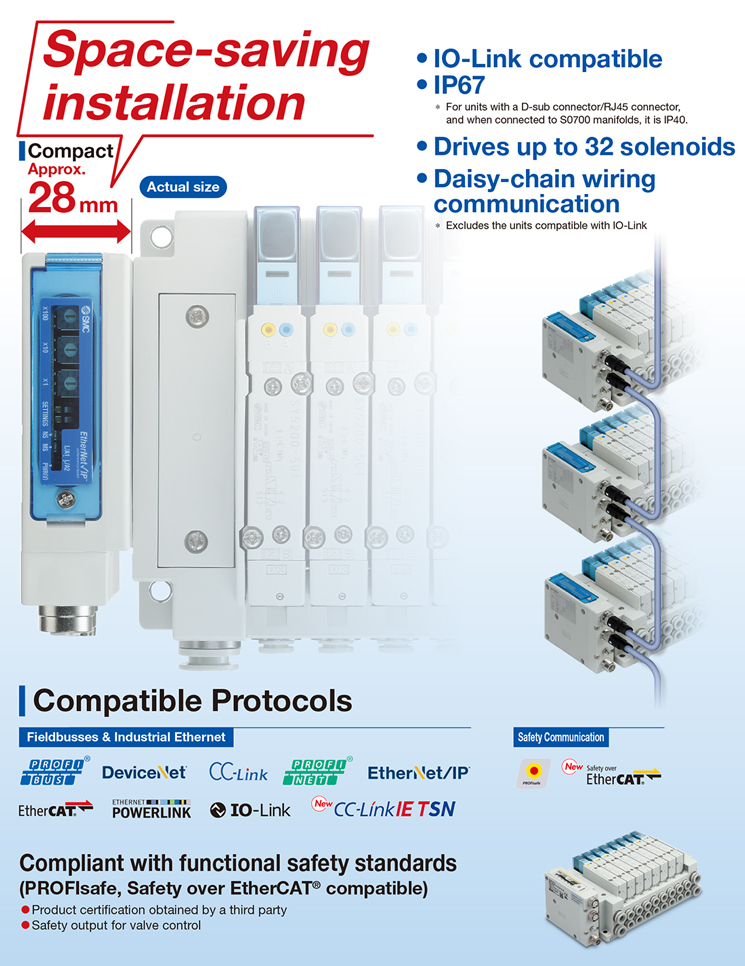

Features
Compact design for space-saving installation: Approx. 28 mm
Manifold length reduced by approx. 53 mm
Daisy-chain wiring communication is possible.＊
A branch connector is not necessary/Reduced wiring space
＊Excludes the units compatible with IO-Link
-
Wiring and piping from the same direction is possible.(for side ported)
-
An external terminating resistor is not necessary.(Only available for M12 PROFIBUS DP, CC-Link communication connectors)
ON/OFF switching is possible with an internal terminating resistor.
An external terminating resistor is not necessary.
Product Specification Variations
Applicable Valve Series
IO-Link compatible
Supports safety communication (PROFIsafe)
