WEB Catalog

Product Information ?  WEB Catalog  ? Switches/Sensors/Controller  ? Electronic Flow Switches/Sensors

Electronic Flow Switches/Sensors

3-Color Display Digital Flow Switch for Water PF3W-Z/L

    ?Applicable fluid: Water, Ethylene glycol aqueous solution
    ?Lightweight: Max. 53% reduction (40 L/min, With temperature sensor)
    ?IO-Link compatible
    ?3-color/2-screen display
    ?Compatible with the temperature sensor & flow adjustment valve
    ?Fluid temperature: 0 to 90℃
    ?Compatible with the PFG200 series 3-screen display 4-channel flow
    　monitor

    　?IO-Link Master
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • 3-Color Display Digital Flow Switch for Water PF3W-Z/L
    Manual
    Series View search result
    PF3W-ZView search result
    PF3W-L
    (IO-Link compatible)    		View search result
  • 3-Color Display Digital Flow Switch for Water PF3W-Z/L
    DoC
    Series View search result
    PF3W-ZView search result
    PF3W-L
    (IO-Link compatible)    		View search result
SeriesRated flow range (L/min)
PF3W-Z0.5 to 4
2 to 16
5 to 40
10 to 100
PF3W-L
(IO-Link compatible)		0.5 to 4
2 to 16
5 to 40
10 to 100
50 to 250

Features

Lightweight: Max. 53% reduction (40 L/min, With temperature sensor)

Variations

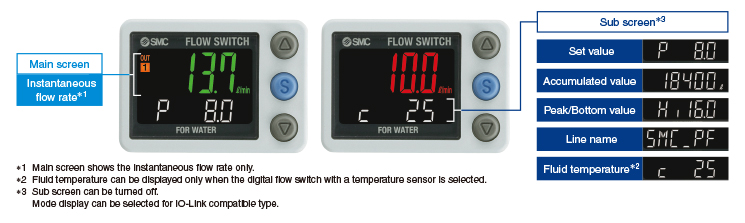

3-color/2-screen display

Compatible with the temperature sensor & flow adjustment valve



Fluid temperature: 0 to 90°C



Non-grease



Ethylene glycol aqueous solution can be used.

Compatible with the analog 2-output type (flow rate + temperature)

Enables the monitoring of flow rate and temperature conditions not only at the installation site but also remotely

Rotatable display

Remote Sensor Unit & 3-Color Display Digital Flow Monitor

Mounting

Digital Flow Switch for Water PF3W

Compatible with the PFG200 series 3-screen display 4-channel flow monitor

Visualization of Settings

Item and set value are displayed together.
Easy to confirm the displayed item

Easy Screen Switching

It is possible to change the settings while checking the measured value.

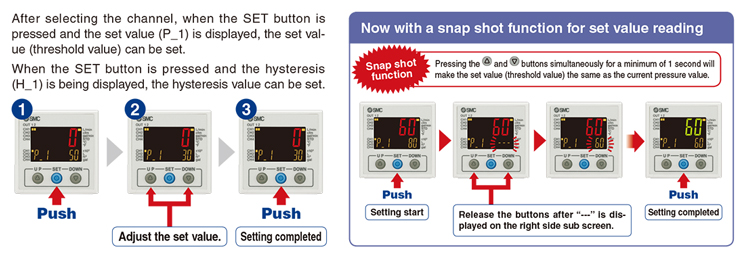

Simple 3-Step Setting

Centralized Control Saves Installation Space.

Accumulated Flow Measurement

A single product can manage the accumulated flow in four lines.

Input Range Selection (for Pressure/Flow rate)

Connectors

Connection and removal of wiring is easy.

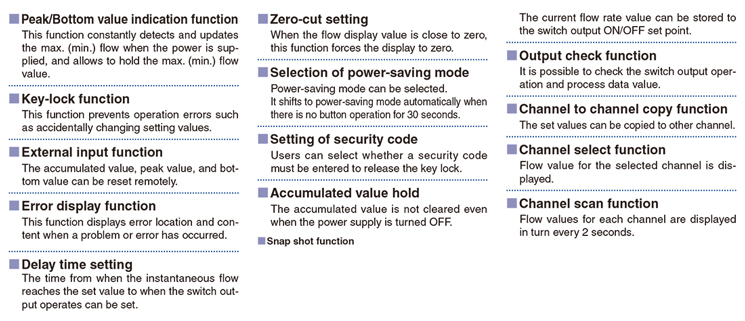

Functions

Hub Function

Converts analog signals to digital signals and supports IO-Link

A currently used sensor can be used.
　? Supports analog voltage output 1-5 V

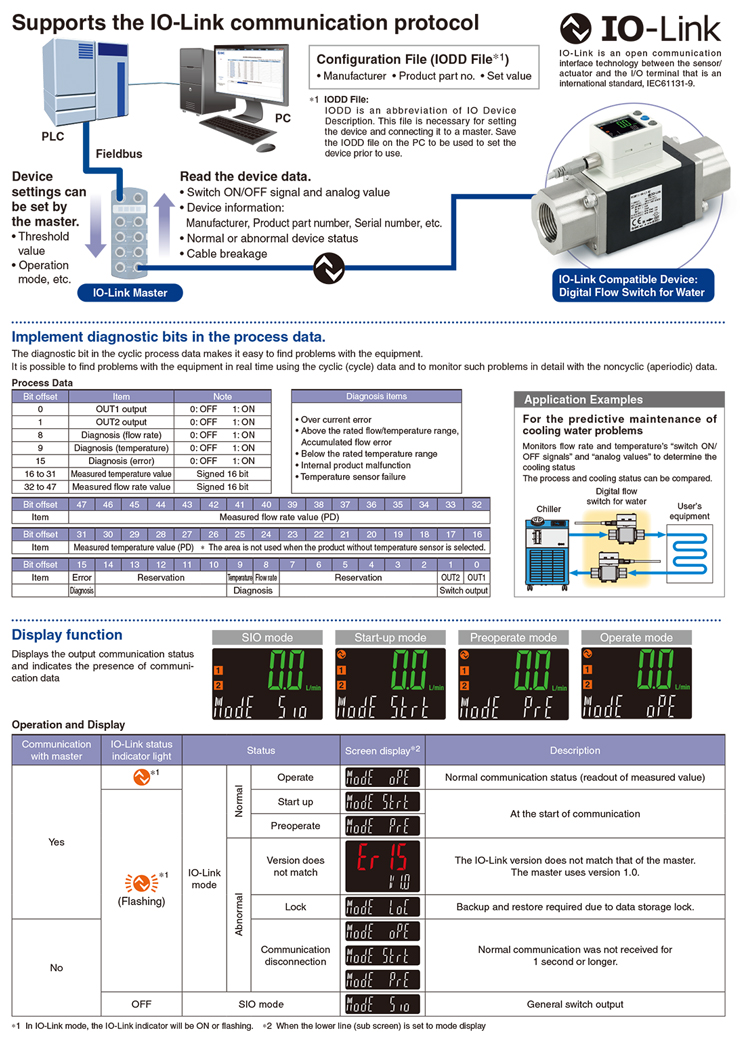

IO-Link Compatible

Go Top
