Product Information ?  WEB Catalog  ? Air Cylinders  ? Clamp Cylinders

Clamp Cylinders

Pin Clamp Cylinder/High-Hardness Type Guide Pin C(L)KQ□D-X3256

    ?30% increase in guide pin material hardness
    ?A high-hardness guide pin ideal for dealing with high-strength material workpieces
    ?The specifications, mounting, and external dimensions are interchangeable with the existing model (C(L)KQ□50).
    ?Interchangeable with guide pins of the existing model
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
TypeSeriesGuide pin shapeBore size（mm）
Standard
(Built-in standard magnet)		CKQGD□50□-X3256Round50
Standard
(Built-in strong magnet)		CKQPD□50□-X3256Round50
With lock
(Built-in standard magnet)		CLKQGD□50□-X3256Round50
With lock
(Built-in strong magnet)		CLKQPD□50□-X3256Round50

Features

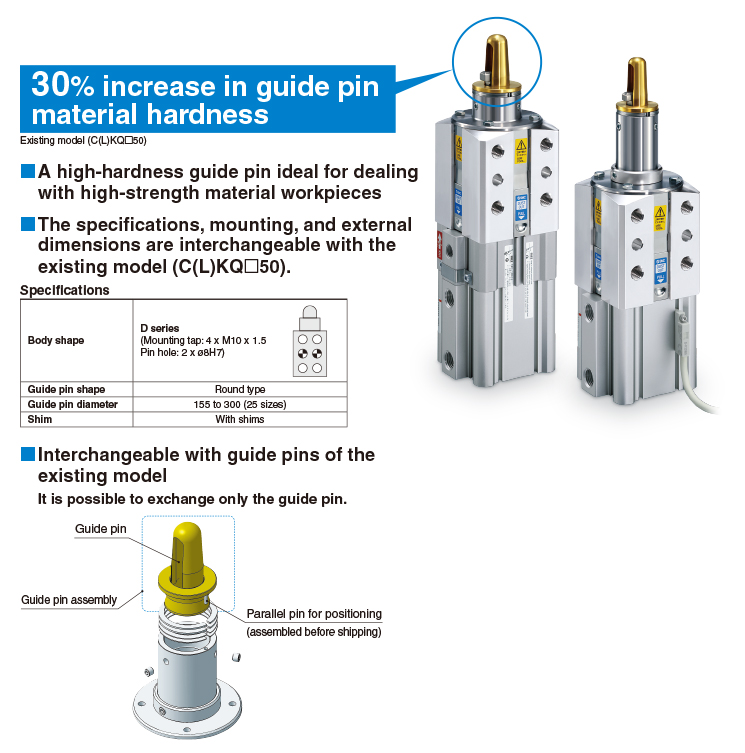

30% increase in guide pin material hardness
