Air Dryers
Refrigerated Air Dryer/Double Energy Saving Function Series IDF100FS/125FS/150FS
-
?Energy-saving design (Second re-heater + Digital scroll compressor)
?Power consumption: Reduced by up to 76%
?Exhaust heat: Reduced by up to 25%
?Tolerant of high temperature environments!
?Ambient temperature: Up to 45oC, Inlet air temperature: Up to 60oC
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD2D CAD
Click here for 2D CAD
Safety Instructions Air Preparation Equipment/Precautions
Model Selection Guide/Quick Reference Guide Green Procurement (RoHS)
Model Selection Guide/Quick Reference Guide Green Procurement (RoHS)
| Series | Applicable compressor (kW) | Air flow capacity （m3/min［ANR］） 50 Hz | Air flow capacity （m3/min［ANR］） 60 Hz |
|---|---|---|---|
| IDF100FS | 100 | 16 | 18.8 |
| IDF125FS | 125 | 20.1 | 23.7 |
| IDF150FS | 150 | 25 | 27 |
Features
Energy saving design Second re-heater plus Digital scroll compressor
Effect example: 1 year (Spring to Winter) Power consumption
Convenient functions
Maintenance

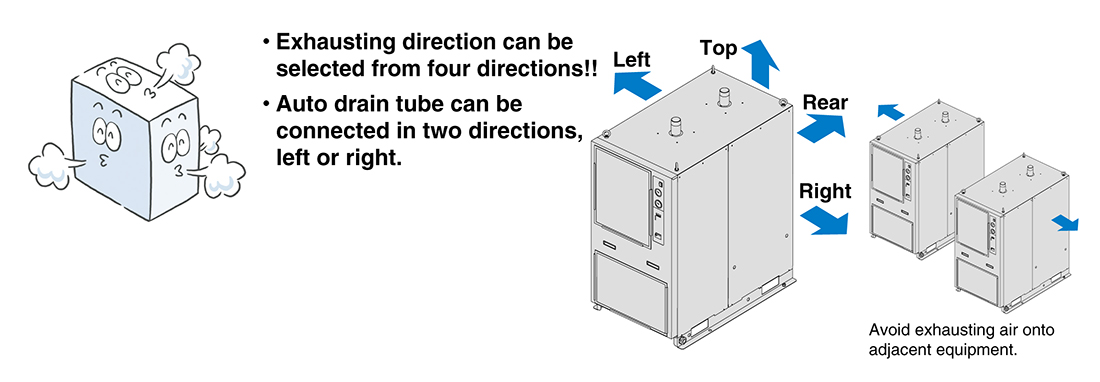

Selection of layout
Space saving
Air Dryer Variations
