Product Information ?  WEB Catalog  ? Flow Control Equipment  ? Speed Controllers with Special Functions

Speed Controllers with Special Functions

Deceleration Controller DAS

    ?2-speed control reduces cycle time
    　Allows for the impact relaxation of the stroke end
    　Allows for the 2-speed control of cylinders
    　The deceleration position (cushion timing) and 2nd speed (cushion
    　intensity) can be adjusted.
    ?Possible to control flow rate values using an adjustment handle with
    　graduations

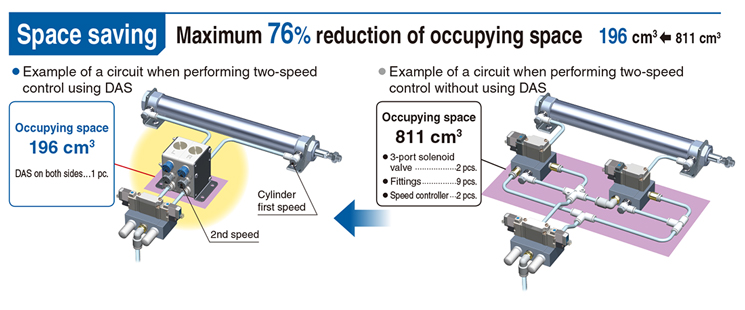

    ?Space saving
    　Maximum 76% reduction of occupying space (196 cm3 ← 811 cm3)
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Deceleration Controller DAS
    Manual
    Type Series View search result
    Deceleration controllerDAS5-□View search result
    Deceleration controllerDAS7-□View search result
TypeSeriesApplicable tubing O.D.
Metric		Applicable tubing O.D.
Inch		Applicable cylinder range
Deceleration controllerDAS5-□φ4 to φ8?5/32" to ?5/16"?10 to ?40
Deceleration controllerDAS7-□φ8 to φ12?5/16" to ?1/2"Up to ?100

Features

2-speed control reduces cycle time

Allows for the impact relaxation of the stroke end

Space saving
