Compact Cylinder CQ2/CDQ2

[New]

CAD
Simple Specials
Made to Order

2D/3D CAD

The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD

2D CAD
Click here for 2D CAD

Compact Cylinder CQ2/CDQ2

Symbol	Specifications	Download
-XA1?2?6?7?11?17?18 Simple Specials	CQS/CQS-XB24/CQ2/CQ2-XB24/RQ/CLQ(φ12 to φ25):Change of rod end shape	PDF
-XA1 to XA23/-XA26 to XA30 Simple Specials	CQ2/CQ2-XB24/RQ/CLQ(φ32 to φ100)/CQ2 Large bore size(φ125 to φ200):Change of rod end shape	PDF

Compact Cylinder CQ2/CDQ2

Symbol	Specifications	Download
-XB6 Made to Order Common Specifications	Heat resistant cylinder (－10 to 150℃)	PDF
-XB7 Made to Order Common Specifications	Cold resistant cylinder (－40 to 70℃)	PDF
-XB9 Made to Order Common Specifications	Low speed cylinder (10 to 50 mm/s)	PDF
-XB10 Made to Order Common Specifications	Intermediate stroke (Using exclusive body)	PDF
-XB10A Made to Order Common Specifications	Intermediate stroke (Spacer-installed type)	PDF
-XB11 Made to Order Common Specifications	Long stroke type	PDF
-XB13 Made to Order Common Specifications	Low speed cylinder (5 to 50 mm/s)	PDF
-XB14 Made to Order Common Specifications	Cylinder with heat resistant auto switch	PDF
-XC2（A） Made to Order Common Specifications	Rod end length extended 10 mm	PDF
-XC4 Made to Order Common Specifications	With heavy duty scraper	PDF
-XC6 Made to Order Common Specifications	Made of stainless steel	PDF
-XC8 Made to Order Common Specifications	Adjustable stroke cylinder/Adjustable extension type	PDF
-XC9 Made to Order Common Specifications	Adjustable stroke cylinder/Adjustable retraction type	PDF
-XC10 Made to Order Common Specifications	Dual stroke cylinder/Double rod type	PDF
-XC11 Made to Order Common Specifications	Dual stroke cylinder/Single rod type	PDF
-XC26 Made to Order Common Specifications	With split pins for double clevis pin/double knuckle joint pin and flat washers	PDF
-XC26□ Made to Order Common Specifications	Double clevis width/Double knuckle width 12.5 mm 16.5 mm 19.5 mm: With double clevis double knuckle joint	PDF
-XC27 Made to Order Common Specifications	Double clevis and double knuckle joint pins made of stainless steel	PDF
-XC35 Made to Order Common Specifications	With coil scraper	PDF
-XC36 Made to Order Common Specifications	With boss in rod side	PDF
-XC85 Made to Order Common Specifications	Grease for food processing equipment	PDF
-XC88 Made to Order Common Specifications	Spatter resistant coil scraper Lube-retainer Grease for welding (Piston rod: Stainless steel 304)	PDF
-XC89 Made to Order Common Specifications	Spatter resistant coil scraper Lube-retainer Grease for welding (Piston rod: S45C)	PDF
-XC91 Made to Order Common Specifications	Spatter resistant coil scraper Grease for welding (Piston rod: S45C)	PDF
-XC92 Made to Order Common Specifications	Dust resistant actuator	PDF

Safety Instructions　Actuators/Precautions　Auto Switches/Precautions
Model Selection/Technical Data　Quick Selection Table
Simple Specials　Made to Order Common Specifications　Green Procurement (RoHS)

Type	Series	Action	Bore size (mm)
Standard	CQ2-Z	Double acting, Single rod	4，6，10，12，16，20，25，32，40，50，63，80，100
Standard	CQ2W-Z	Double acting, Double rod	12，16，20，25，32，40，50，63，80，100
Standard	CQ2-Z	Single acting (Spring return/extend)	12，16，20，25，32，40，50
Large bore size	CQ2-Z	Double acting, Single rod	125，140，160，180，200
Large bore size	CQ2W-Z	Double acting, Double rod	125，140，160，180，200
Long stroke	CQ2-Z	Double acting, Single rod	32，40，50，63，80，100
Non-rotating rod	CQ2K-Z	Double acting, Single rod	12，16，20，25，32，40，50，63
Non-rotating rod	CQ2KW-Z	Double acting, Double rod	12，16，20，25，32，40，50，63
Water resistant	CQ2-R/V	Double acting, Single rod	20，25，32，40，50，63，80，100
Water resistant	CQ2W-R/V	Double acting, Double rod	40，50，63，80，100
Axial piping （Common piping）	CQP2	Double acting, Single rod	12，16，20，25，32，40，50，63，80，100
Axial piping （Common piping）	CQP2	Single acting (Spring return/extend)	12，16，20，25，32，40，50
Anti-lateral load	CQ2□S-Z	Double acting, Single rod	32，40，50，63，80，100
With end lock	CBQ2	Double acting, Single rod	20，25，32，40，50，63，80，100

Features

Sizes ?4, ?6, and ?10 have been added. New

Can mount small auto switches on 4 surfaces.

Remodeled with a new body to get more flexibility!

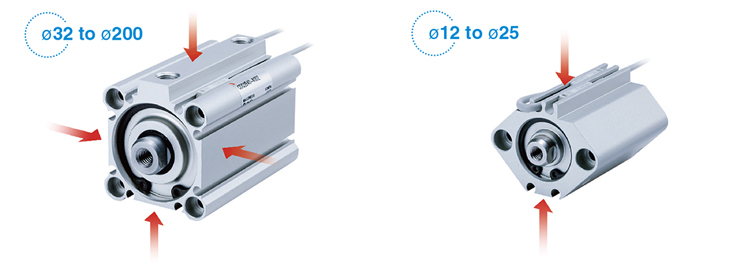

Auto switches can be mounted on any of the 4 surfaces, depending on the installation conditions.
(?12 to ?25: 2 surfaces) Improved flexibility of system design.

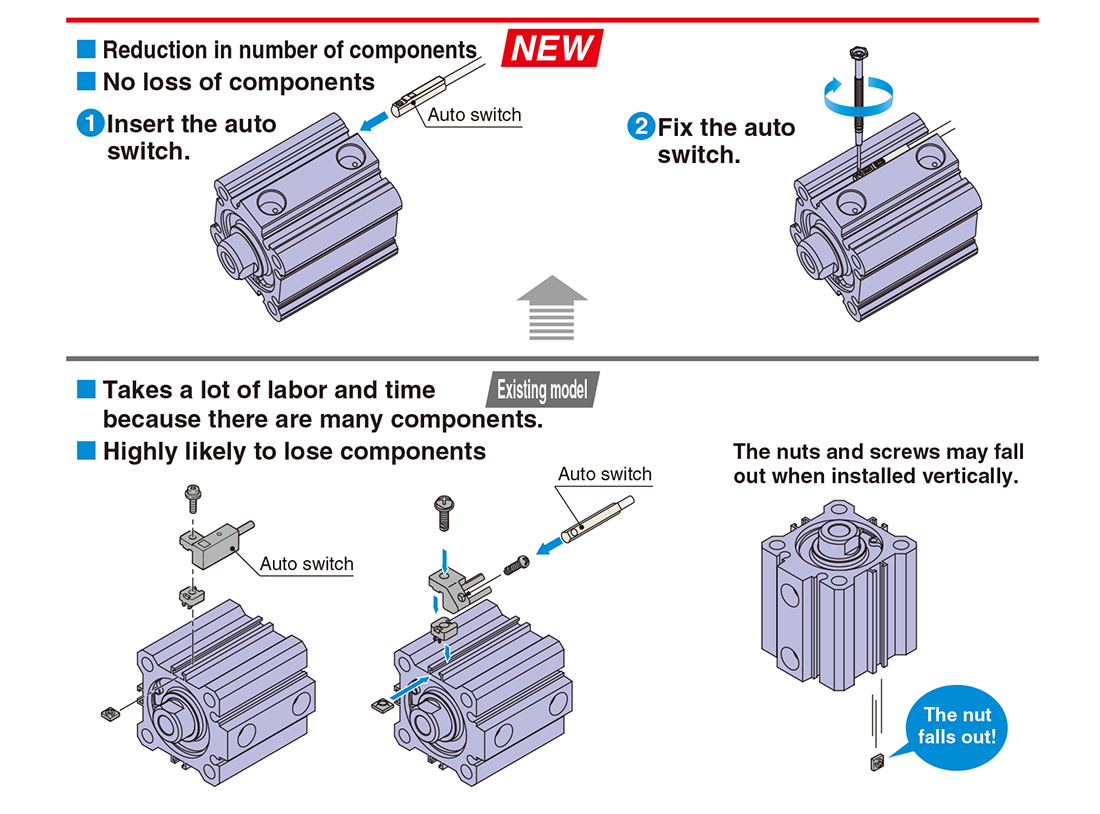

Auto switch mounting rail removed A round slot for mounting small auto switches is provided on 4 surfaces.

Available up to ?200

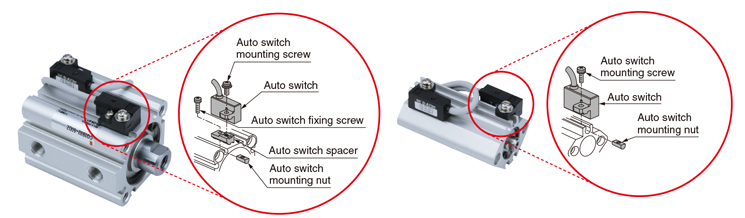

No projection of auto switch

Prevention of damage to auto switch
Sleeves cannot get caught in the auto switch and its mounting rail.

Improved ease of work and safety

Reduction in labor for design

There is no need to check for interference with a machine,
because the outer dimensions of the cylinder do not change when the auto switch is mounted.
