Speed Controllers for Low Speed Control

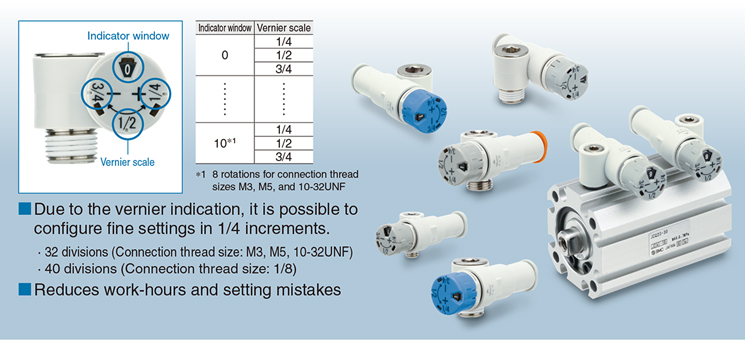

Compact Type Speed Controller with Indicator JAS-SML/SCL
-
?Improvement of resolution has made it possible to make fine
adjustment.
1 to 50 mm/s: JAS-SML Series
50 to 150 mm/s: JAS-SCL Series
?Height: Max. 20.8 mm shorter
?Flow rate can be controlled numerically with the indicator window.
Due to the vernier indication, it is possible to configure fine settings in 1/4
increments.
Reduces work-hours and setting mistakes
| Type | Series | Port size on the cylinder side | Applicable tubing O.D. Metric size | Applicable tubing O.D. Inch size |
|---|---|---|---|---|
| Speed controller with indicator Elbow type | JAS-SML JAS-SCL | M3×0.5 M5×0.8 10-32UNF R, NPT, G 1/8 | φ3.2，φ4，φ6 | φ1/8''，φ5/32''，φ1/4'' |
Features
Improvement of resolution has made it possible to make fine adjustment.
Height: Max. 20.8 mm shorter
Flow rate can be controlled numerically with the indicator window.
A vernier scale equipped at the upper part of the knob allows you to make a fine setting in units of quarter.
