Product Information ?  WEB Catalog  ? Modular F.R.L./Pressure Control Equipment  ? Regulators

Regulators

Precision Regulator IR1000-A/2000-A/3000-A

    ?Air consumption: Reduced by up to approx. 90%
    　(Compared to the existing SMC product)
    ?High flow rate: Up to approx.
    　twice that of the existing SMC product
    ?Lightweight: Reduced by up to approx. 27%
    　(Compared to the existing SMC product)
    ?Sensitivity: 0.2% (Full span)
    ?Repeatability: ±0.5% (Full span)
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
SeriesPort sizeSet pressure (MPa)
IR1000-A1/80.005 to 0.2
0.01 to 0.4
0.01 to 0.8
IR2000-A1/40.005 to 0.2
0.01 to 0.4
0.01 to 0.8
IR3000-A1/4, 3/8, 1/20.01 to 0.2
0.01 to 0.4
0.01 to 0.8

Features

Reduction in air consumption

Air consumption: Reduced by up to approx. 90% (Compared to the current SMC product)

Air consumption is reduced with a new original structure.

With this new original structure, running costs are reduced.

No fixed throttle in the new design.

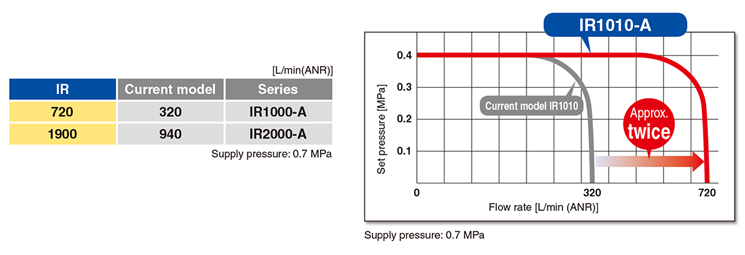

Flow rate: Up to approx. twice (Compared to the current SMC product)

Weight: Reduced by up to approx. 27%

Sensitivity: 0.2% (Full span)



Repeatability: ±0.5% (Full span)



Mounting is interchangeable with the current SMC model.



Space saving

New structure without fixed throttle does not require a mist separator.

Digital pressure switch standardized

Hexagon panel nut mounting

* Interchangeable with the current SMC product

New IR can be used between a cylinder and solenoid valve.

Exhaust (EXH) directions can be selected. (Series IR3000-A)

Bottom and front exhaust added.

Application Examples

Series Variations
