Table Cylinders

Compact Slide MXH2

    ?Size ?25 have been added.
    　Same width as size ?20
    　Allowable moment: Max. 1.4 times greater than that of size ?20
    ?Improved linear guide rigidity reduces the amount of table displacement
    　by 48%
    　Displacement due to a force acting in the pitch direction: 48% reduction
    　(0.31 mm→0.16 mm)
    　Displacement due to a force acting in the yaw direction: 63% reduction
    　(0.24 mm→0.09 mm)
    　Displacement due to a force acting in the roll direction: 90% reduction
    　(0.06 mm→0.006 mm)
    ?Max. standard stroke: 150 mm (For ?20, ?25)
    ?Weight: Max. 6% reduction (194 g→182 g)
    ?Dimensions for mounting and length are equivalent to the existing MXH
    　series.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Compact Slide MXH2
    Manual
    Type Series Action Bore size (mm) View search result
    StandardMXH2Double acting6，10，16，20，25View search result
TypeSeriesActionBore size (mm)
StandardMXH2Double acting6，10，16，20，25

Features

Improved linear guide rigidity

High Rigidity Achieved

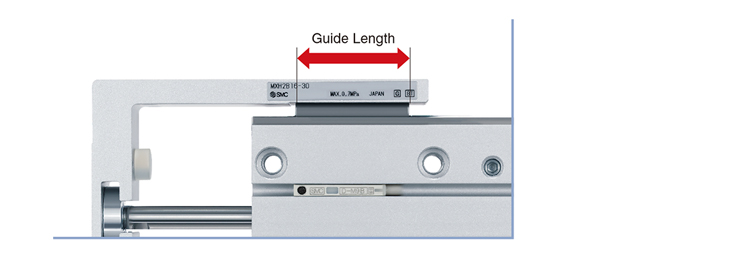

Increased rigidity by extending the guide length of the linear guide.
Significantly reduced table displacement when a moment is applied.

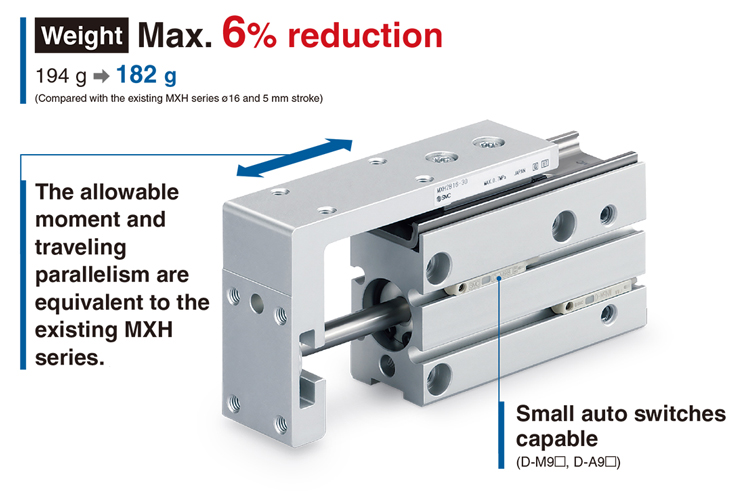

Weight: Max. 6% reduction (194 g → 182 g)

Max. standard stroke length has increased. (Max. 150 mm)

(Existing product: Max. 60 mm)

Piping is possible in 3 directions.

If changing the port location, “Made to Order” model (-XC3 □ ) is available.

Bumper

A bumper is also installed inside the cylinder.

Mounting is possible in 4 directions.

2 mounting options for workpieces are available.

Dimensions for mounting and length are equivalent to the existing MXH series.

Dimensions including workpiece mounting dimensions and cylinder mounting dimensions are the same as the existing model.



Variations
