Controllers
Flow Controller for Air PFCA7
-
?For the automatic adjustment of the flow rate
?Applicable fluid: Dry air, N?, Ar, CO?
?Color display/2-screen display supported
For the confirmation of the instantaneous flow rate, flow rate command
value, and accumulated flow rate at a glance
?IO-Link compatible
?Flow ratio 100:1
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD Flow Controller for Air PFCA7
Manual
Series View search result PFCA710 View search result PFCA725 View search result PFCA750 View search result PFCA711 View search result Flow Controller for Air PFCA7
DoC
Series View search result PFCA710 View search result PFCA725 View search result PFCA750 View search result PFCA711 View search result
| Series | Rated control flow rate range [L/min] (Dry air, N?, Ar) | Set control flow rate range [L/min] (Dry air, N?, Ar) | Set control flow rate Min. unit [L/min] |
|---|---|---|---|
| PFCA710 | 0.1 to 10 | 0.04 to 10.3 | 0.01 |
| PFCA725 | 0.2 to 25 | 0.1 to 25.8 | 0.1 |
| PFCA750 | 0.5 to 50 | 0.2 to 51.5 | 0.1 |
| PFCA711 | 1 to 100 | 0.4 to 103 | 0.1 |
Features
For the automatic adjustment of the flow rate
Space saving/Reduced piping, wiring, and installation labor

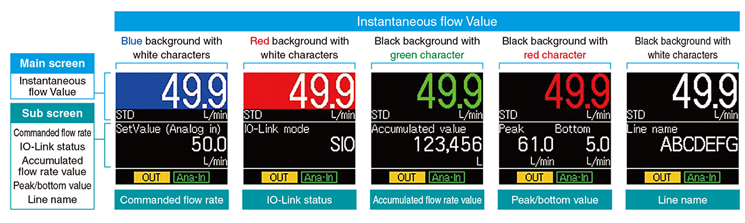

Color display/2-screen display supported
The color display allows for improved visibility. And the 2-screen display allows you to check the status at a glance.
Improved visibility and operability

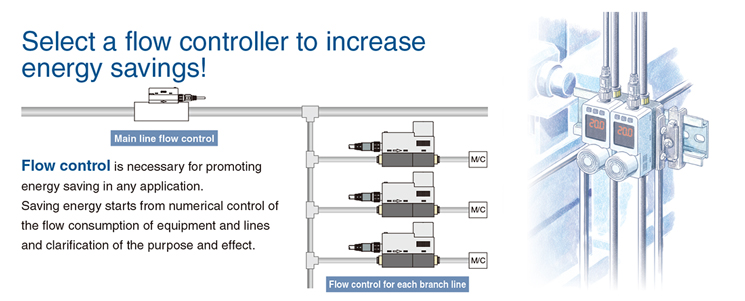

Select a flow controller to increase energy savings!

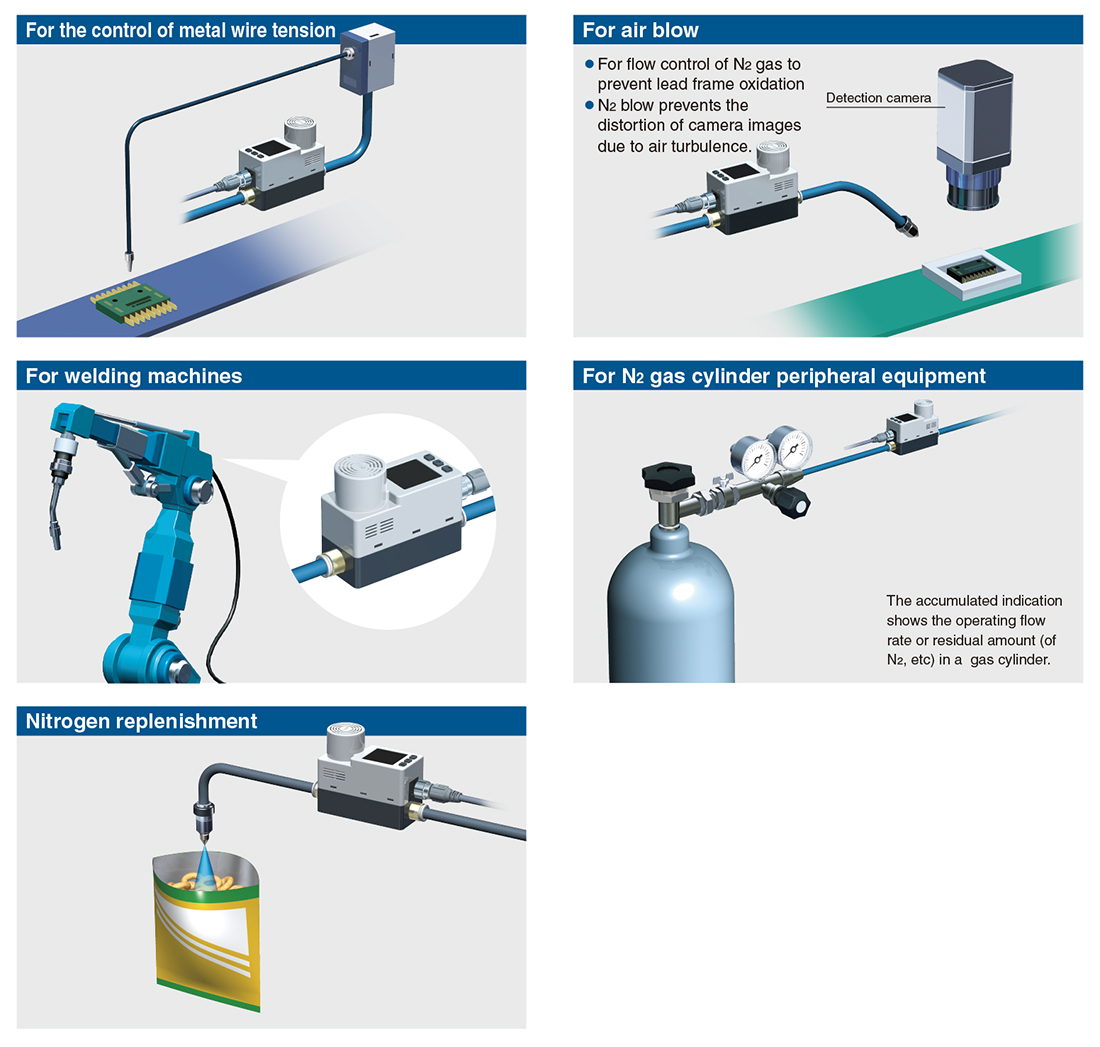

Applications
IO-Link Compatible PFCA7□-□-□□-□□□
