WEB Catalog

Product Information ?  WEB Catalog  ? IO-Link Devices  ? Pressure Switches

Pressure Switches

3-Screen Display Digital Gap Checker/IO-Link Compatible ISA3-L

    ?Monitoring the placement condition of the workpiece Indicates failure/abnormality
    ?Double sensor providing improved preventive and predictive maintenance (IoT) based on IO-Link
    　Process data provides Displayed value, Outlet pressure, and Supply pressure value.
    ?NPN/PNP switch function
    ?3-screen display (Setting)
    ?Window comparator type
    ?Zero cut-off range can be changed.

    　?IO-Link Master
SeriesRated distance rangePiping specifications: Supply sidePiping specifications: Detection side
ISA3-F□L0.01 to 0.03 mmRc, G 1/8φ4, φ6 One-touch fitting, G 1/8
ISA3-G□L0.02 to 0.15 mmRc, G 1/8φ4, φ6 One-touch fitting, G 1/8
ISA3-H□L0.05 to 0.30 mmRc, G 1/8φ4, φ6 One-touch fitting, G 1/8

Features

Monitoring the placement condition of the workpiece Indic ate s failure / abnormality

Double sensor providing improved preventive and predictive maintenance (IoT) based on IO-Link

Process data provides Displayed value , Outlet pressure and Supply pressure value .


Not only the displayed value, but also the pressure value (supply pressure, outlet pressure) which affect the detection can be transmitted in real time

IO-Link

IO-Link is an open communication interface technology between the sensor/actuator and the I/O terminal that is an international standard, IEC61131-9.

  • NPN/PNP Switch Function

    Both NPN and PNP are available.

  • 3-Screen Display (Setting)

  • Window Comparator Type

    The gap range is adjustable.

  • Zero cut-off range can be changed.

    The lower limit of the display/setting range has been extended.

Sub display improved for ease of use

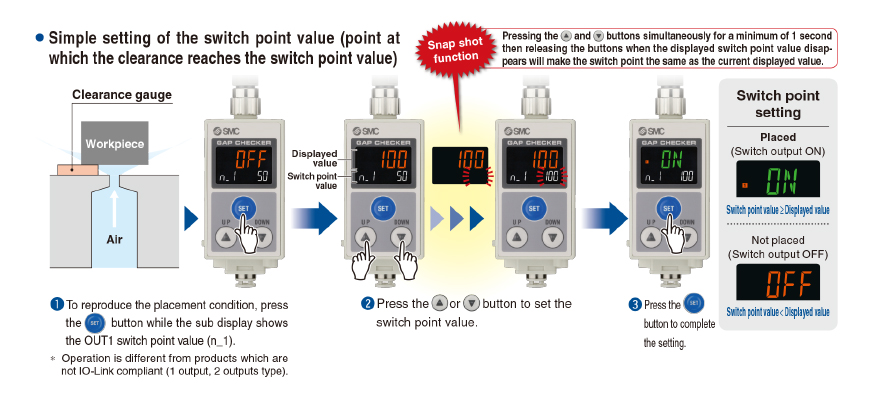

3-Step Setting (Switch Point Change Mode)

3-Screen Digital Display

Rated Distance Range: 3 types are available.

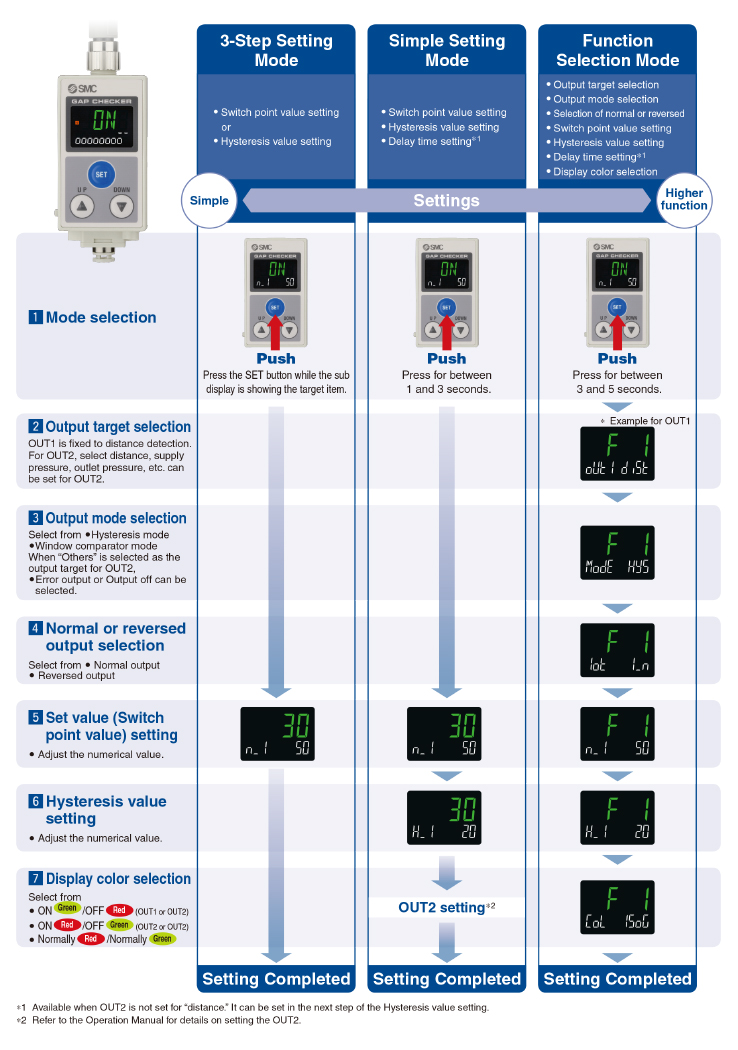

3 Setting Modes

Select the setting mode that best meets your needs.

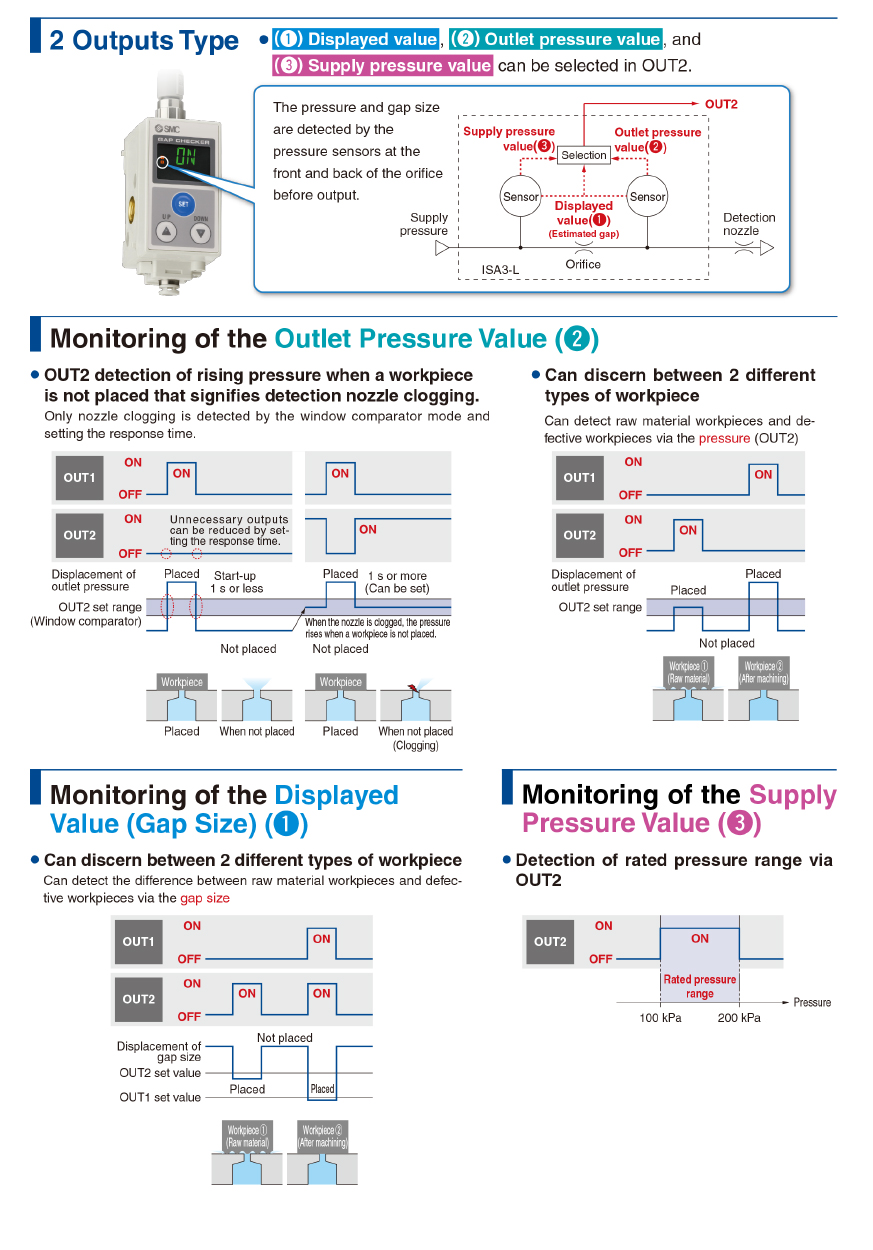

2 Outputs Type

Improved Environmental Resistance

Noise reduction, Energy saving, Measures against clogging

Compact & Lightweight

Space saving and man-hour reduction by centralized lead wires

Keylock Function

  • Piping Variations

  • Mounting

Manifold

Application Examples

Detection of the table and pallet seating



Workpiece clamp detection

Main Functions
