Position Sensor
Compact Position Sensor D-MPG
-
?Detects the stroke position of compact actuators such as air grippers
?Repeatability: 0.1 mm
?Compact sensor head and separate teach unit
?Same shape as the D-M9□ solid state auto switch
?Analog output
?Switch output
?IO-Link compatible
?IO-Link Devices
| Series | Measurement range | Resolution | Repeatability |
|---|---|---|---|
| D-MPG | 25 mm ±1 | 0.01 mm | 0.1 mm |
Features
Detects the stroke position of compact actuators such as air grippers
Lineup
Can be mounted horizontally or vertically
Can be mounted from either direction on the cylinder auto switch mounting groove
Analog output function
Operation display

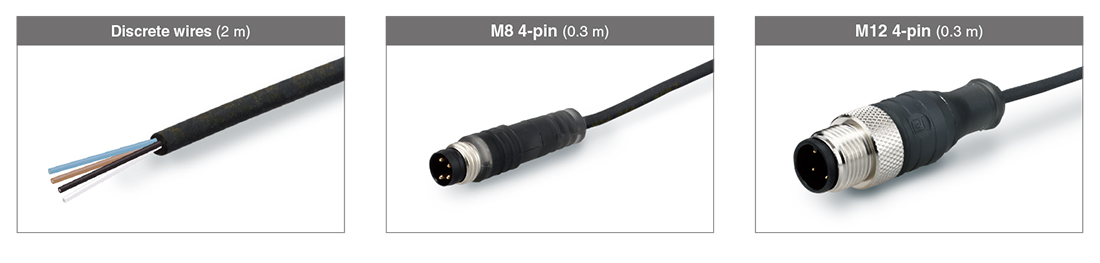

Lead wire connection
4 switch modes can be selected for the switch output.
Application example
Alignment and selection of randomly arranged parts
For identification of workpieces with different dimensions
IO-Link compatible
