Standard Air Cylinders (Round Type）
Air Cylinder CM2
-
?A double rod type, a single acting type, a non-rotating rod type, and
a direct mount type have been added. [New]
?Made-to-order options have been added. [New]
Special port location (-XC3), Made of stainless steel (-XC6), Dust resistant
cylinder (-XC4), Heat-resistant cylinder (-XB6), etc.
?Cylinder with rod end bracket is standardized.
?Interchangeable in mounting with the existing model
?Various mounting bracket options
Mounting brackets suitable for various installation conditions
Improved mounting flexibility
?Part numbers for products with a rod end bracket and/or a pivot bracket
available
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD2D CAD
Click here for 2D CAD Air Cylinder CM2
Manual
Type Series Action Bore size (mm) View search result Standard CM2-Z1 Double acting, Single rod 20，25，32，40 View search result Standard CM2-Z1 Single acting (Spring return/extend) 20，25，32，40 View search result Standard CM2W-Z1 Double acting, Double rod 20，25，32，40 Non-rotating rod CM2K-Z1 Double acting, Single rod 20，25，32，40 Non-rotating rod CM2KW-Z1 Double acting, Double rod 20，25，32，40 Direct mount CM2R-Z1 Double acting, Single rod 20，25，32，40
Safety Instructions Actuators/Precautions Auto Switches/Precautions Model Selection/Technical Data Green Procurement (RoHS)
| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Standard | CM2-Z1 | Double acting, Single rod | 20，25，32，40 |
| Standard | CM2-Z1 | Single acting (Spring return/extend) | 20，25，32，40 |
| Standard | CM2W-Z1 | Double acting, Double rod | 20，25，32，40 |
| Non-rotating rod | CM2K-Z1 | Double acting, Single rod | 20，25，32，40 |
| Non-rotating rod | CM2KW-Z1 | Double acting, Double rod | 20，25，32，40 |
| Direct mount | CM2R-Z1 | Double acting, Single rod | 20，25，32，40 |
Features
Air Cylinder CM2 Series
Series Variations

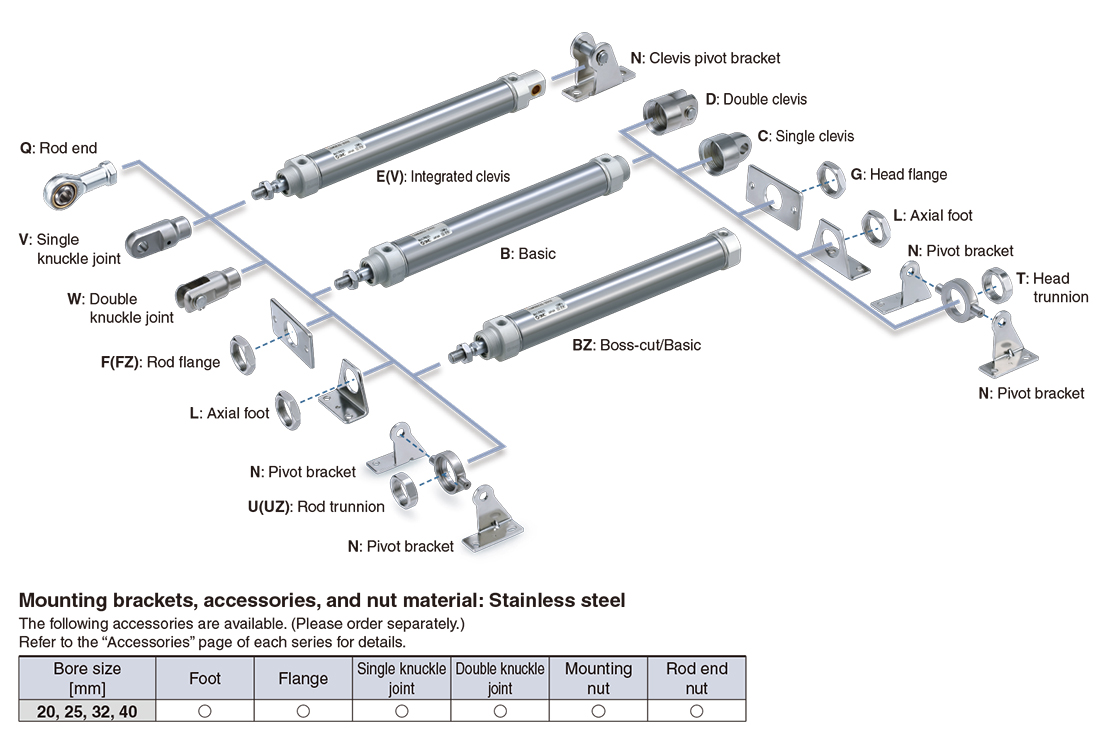

Various mounting bracket options
· Mounting brackets suitable for various installation conditions
· Improved mounting flexibility
Part numbers for products with a rod end bracket and/or a pivot bracket available
It is not necessary to order a bracket for the applicable cylinder separately.
* Mounting brackets are shipped together with the product but do not come assembled.
Easy fine adjustment of auto switch position
Fine adjustment of the auto switch set position can be performed by loosening the auto switch attached screw without loosening the auto switch mounting band. Operability improved compared with the existing auto switch set position adjustment, where the complete switch mounting band requires loosening
-
Overall length is shortened with boss-cut type.
Boss for the head cover bracket is eliminated and the overall length of cylinder is shortened.
-
No environmental hazardous substances used
Compliant with EU RoHS 10 directive
Specifications, performance, and mounting method are the same as those of the existing model.
Stroke Variations
Series Variations
? For details about the clean series, refer to the Web Catalog
