Parallel Type Air Grippers

Low Profile Air Gripper/With One Finger Fixed MHF2-□F

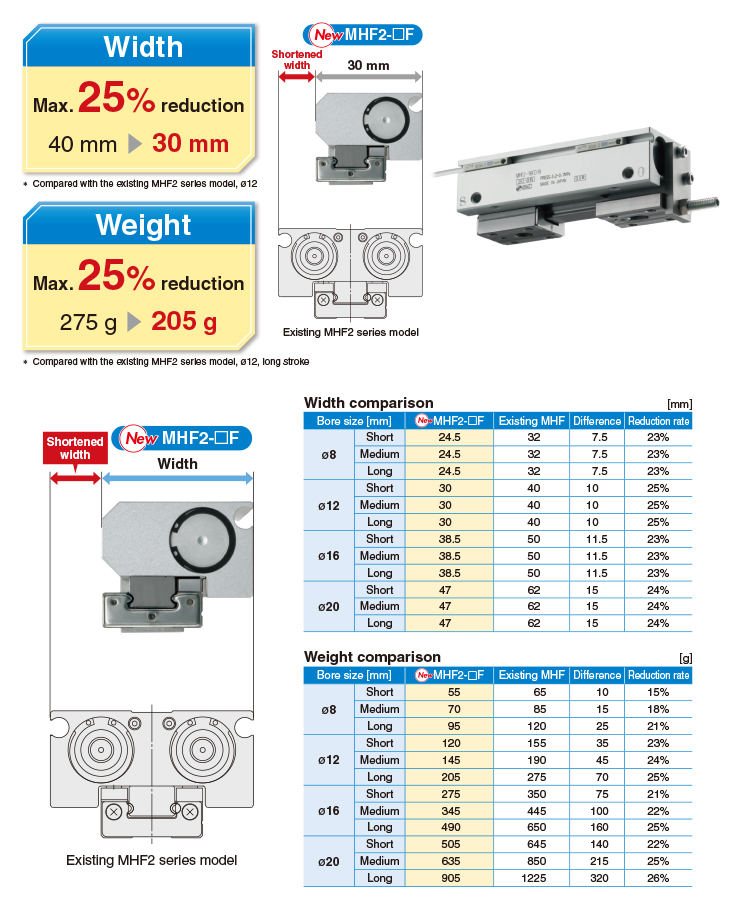

    ?Width: Max. 25% reduction (40 mm → 30 mm)
    ?Weight: Max. 25% reduction (275 g → 205 g)
    ?The fixed finger can be set to a reference position.
    ?Fixed finger position adjustment function
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
TypeSeriesCylinder bore size (mm)
With one finger fixedMHF2-□F8，12，16，20

Features

Compact and lightweight

The fixed finger can be set to a reference position.

Fixed finger position adjustment function

Fine adjustment is possible by using the adjustment bolt.

Positioning pin holes have been standardized. 3 types of mounting are possible.

3 stroke lengths can be selected for moving finger.

3 standard stroke lengths are available for each bore size. Stroke can be selected to suit the workpiece.

  • Compact solid state auto switches are mountable.
