WEB Catalog

Product Information ?  WEB Catalog  ? Modular F.R.L. Units  ? Modular F.R.L. Units/Air Combination

Modular F.R.L. Units/Air Combination

Modular F.R.L. Units AC-A

    ?Easy element replacement
    　The element and the bowl are integrated. Replacement can be done in
    　hand.
    ?Energy-saving regulator Pressure drop: Max. 50% improvement
    ?Reduced required maintenance space: Max. 46% reduction
    ?Better visibility&increased safety
    　The bowl is covered with a transparent bowl guard.
    ?Attachments:
    　Spacer: Y200-A, Y300-A, Y400-A, Y500-A
    　Spacer with bracket: Y200T-A, Y300T-A, Y400T-A, Y500T-A

    ? The AC-A series will be discontinued in March 2025.
    　Please select the AC-D series.?Click here for details.
Combination equipmentSeriesPort sizeSet pressure (MPa)
Air filter, Regulator,
Lubricator		AC10 to 40-AM5，1/8，1/4，3/8，1/2，3/40.05 to 0.7
0.02 to 0.2
Filter regulator,
Lubricator		AC10A to 40A-AM5，1/8，1/4，3/8，1/2，3/40.05 to 0.7
0.02 to 0.2
Air filter, RegulatorAC10B to 40B-AM5，1/8，1/4，3/8，1/2，3/40.05 to 0.7
0.02 to 0.2
Air filter, Mist separator,
Regulator		AC20C to 40C-A1/8，1/4，3/8，1/2，3/40.05 to 0.7
0.02 to 0.2
Filter regulator,
Mist separator		AC20D to 40D-A1/8，1/4，3/8，1/2，3/40.05 to 0.7
0.02 to 0.2

Features

Modular Type F.R.L. Unit Series AC

Transparent bowl guard

Better environmental resistance: Transparent bowl guard can protect the inner bowl!

Better visibility: 360°

Use of transparent bowl guard makes it possible to check the condensate inside the filter case and the remaining oil amount in the lubricator from the entire periphery.

Light weight: Max. 90 g reduction

* Except AW

Pressure drop: Max. 50% improvement

* Regulator/AR, Filter Regulator/AW

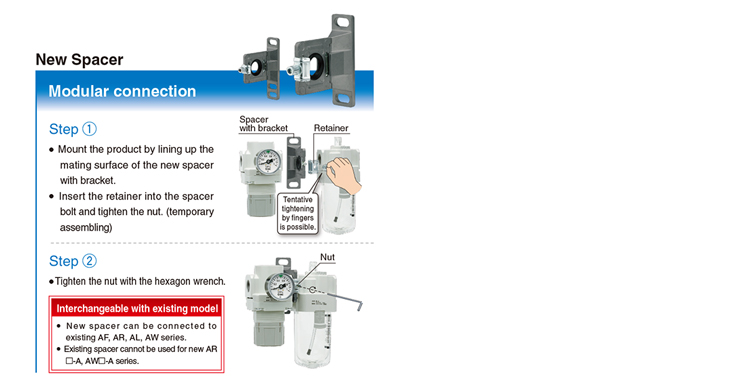

New Spacer
