Guide Cylinders

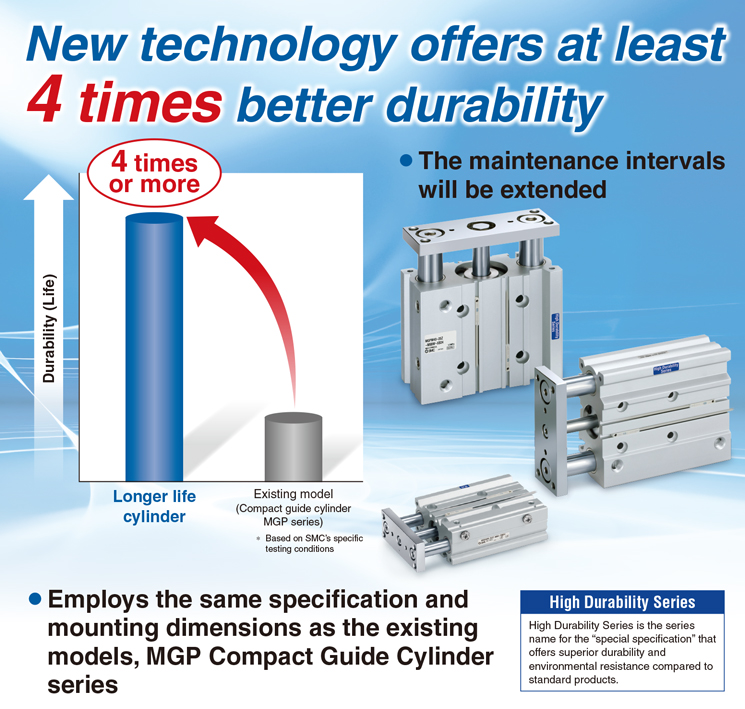

Longer Life Cylinder MGP-XB24
-
?New technology offers at least 4 times better durability.
The maintenance intervals will be extended.
?Employs the same specification and mounting dimensions as the existing
models, MGP Compact Guide Cylinder series
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD
Safety Instructions Actuators/Precautions Auto Switches/Precautions
Model Selection/Technical Data Green Procurement (RoHS)
Model Selection/Technical Data Green Procurement (RoHS)
| Type | Bearing | Series | Action | Bore size (mm) |
|---|---|---|---|---|
| Longer life | Slide bearing | MGP-XB24 | Double acting | 12，16，20，25，32，40 |
Features
New technology offers at least 4 times better durability
The maintenance intervals will be extended
Series Variations
