WEB Catalog

Product Information ?  WEB Catalog  ? Static Neutralization Equipment  ? Static Neutralization Equipment/Ionizers

Static Neutralization Equipment/Ionizers

Ionizer Gun IZG10

    ?Lightweight: Only 200 g (Body weight)
    ?Reduced operating force, Easy to hold grip
    ?Lighting LED

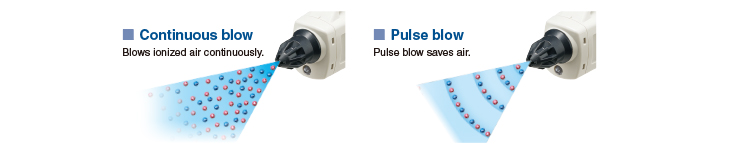

    ?Blow setting function
    　Select from continuous blow or pulse blow.
    ?Rapid static neutralization: 0.3 s (Distance: 150 mm, Operating pressure: 0.2 MPa)
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Ionizer Gun IZG10
    Manual
    Series View search result
    IZG10View search result
  • Ionizer Gun IZG10
    DoC
    Series View search result
    IZG10View search result
SeriesIon generation methodOffset voltage
(Ion balance)
IZG10Corona discharge typeWithin ±10 V

Features

Lightweight: Only 200 g (Body weight)

Blow and trigger setting can be selected.

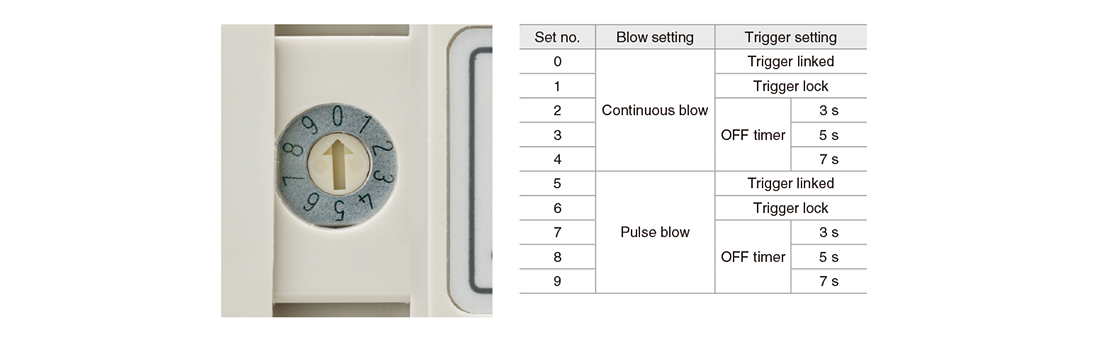

?Mode setting switch



?Selection of blow setting



?Selection of trigger setting

  • With flow adjustment valve (with indicator)

    ?Flow rate of ionized air can be adjusted on the gun.
    ?The flow rate can be controlled numerically.

  • High visibility LEDs

    ?Rear mounted LEDs are easy to see during operation.

  • Lighting LED

    ?Easy to find particles on the workpiece

  • Easy cleaning and replacement of emitters

    　

Application Examples
