WEB Catalog

Product Information ?  WEB Catalog  ? Flow Control Equipment  ? Speed Controllers for General Purposes

Speed Controllers for General Purposes

Elbow Type/Universal Type/Push-lock Type AS

    ?Easy to lock push-lock type
    ?Larger knob
    ?Improved tube insertion/removal
    　Insertion force: Max. 30% (8 N) reduction
    　Removal force: Max. 20% (5 N) reduction*
    　* Tube removal strength is ensured to be equivalent to the previous model.
    ?Electroless nickel plated type is standard.
    ?360° swivel piping is possible. (Universal type)
    ?Available with a restrictor (Made to order: -X214, -X21)
    ?Large flow type (-X778)
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
TypeSeriesPort size
on the
cylinder side		Applicable tubing O.D.
Metric size		Applicable tubing O.D.
Inch size
Elbow typeAS12□1F to 42□1FM5 x 0.8
10-32UNF
R, NPT, G 1/8 to 1/2		φ2 to φ16φ1/8'' to φ1/2''
Universal typeAS13□1F to 43□1FM5 x 0.8
10-32UNF
R, NPT, G 1/8 to 1/2		φ3.2 to φ12φ1/8'' to φ1/2''

Features

Reduces labor time!

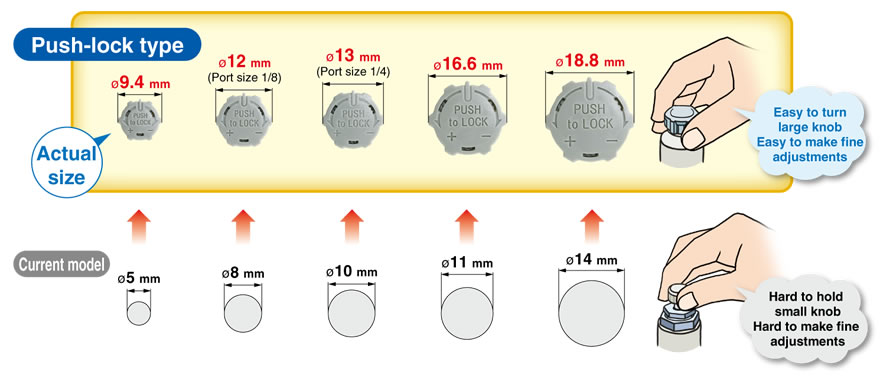

Push-lock type Easy to lock

Easy tool-less one push-lock

Larger handle

Easy to turn large knob

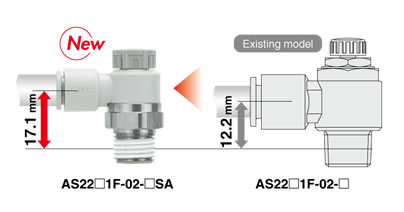

Improved tube insertion/removal

More space beneath the tube. Easier installation/removal of the tube.

Flow rate reproducibility

New type added!

Easy identification of product type

Series Variations

Electroless nickel plating type is standardized.

Stainless steel type is standardized.

G thread (face seal) is standardized.

Go Top
