Gripper for Collaborative Robots

Vacuum Gripper for Collaborative Robots ZXP7□01-X1
for Universal Robots

    ?Plug and Play configuration for immediate use
    　URCaps compatible Easy programming
    ?Operate by simply connecting 1 compressed air supply tube and an electrical wiring M8 connector.
    ?Integrated vacuum ejector, air supply/release valve, pressure sensor, and cups
    ?Standards: Conforming to ISO9409-1-50-4-M6
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Vacuum Gripper for Collaborative Robots ZXP7□01-X1
    for Universal Robots
    Manual
    Series View search result
    ZXP7□01-X1View search result
SeriesCup formCup diameterSuction flow rate
[L/min(ANR)]		Air consumption
[L/min(ANR)]
ZXP7□01-X1Flat
Flat with rib
Bellows
Thin flat
Multistage bellows
2.5-stage bellows
5.5-stage bellows		φ8 to φ321757

Features

■Vacuum Gripper for Collaborative Robots
■Operate by simply connecting 1 compressed air supply tube and an electrical wiring M8 connector.
■Integrated vacuum ejector, air supply valve, pressure switch, and cups
■Standards: Conforming to ISO9409-1-50-4-M6
■URCap
■Specifications
■Cup Variations

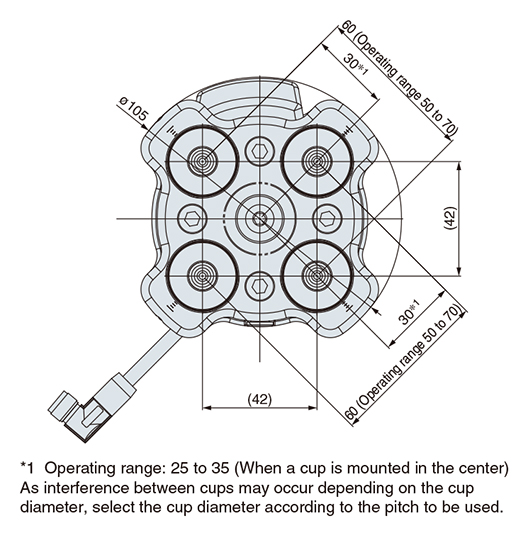

■The cup pitch can be changed.
■The cup with flange can be used separately

(if using an external vacuum source).

■Model Selection
■Dimensions
■URCap

Easy programming

By using the dedicated software certified for Universal Robots, URCap, the teaching pendant can conduct various operations of SMC grippers intuitively, allowing for sensor signals to be easily incorporated.
Save a copy of the URCap software to a USB memory and insert it into the teaching pendant to easily install the software.
* Please download the URCap software from the website, and save it to a USB memory.
