Magnetically Coupled Rodless Cylinders
Magnetically Coupled Rodless Cylinder/Basic Type CY3B
-

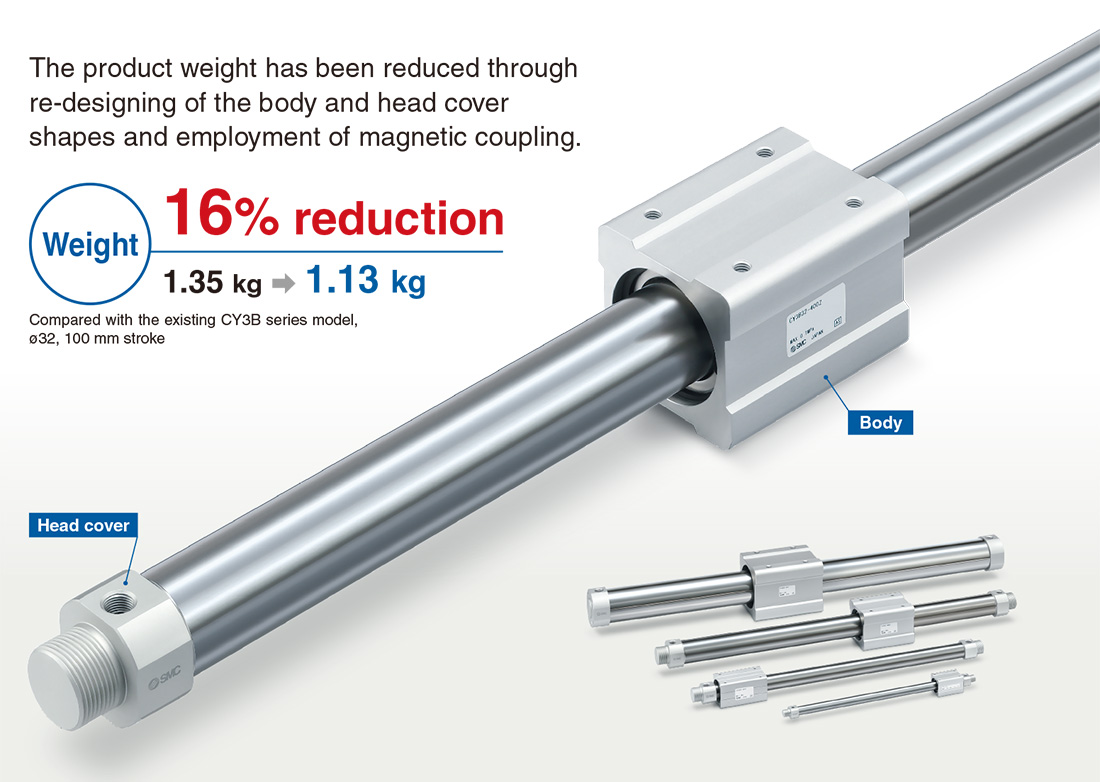

?Lightweight
The product weight has been reduced through re-designing of the body
and head cover shapes and employment of magnetic coupling.
Weight: 16% reduction (1.35 kg → 1.13 kg)

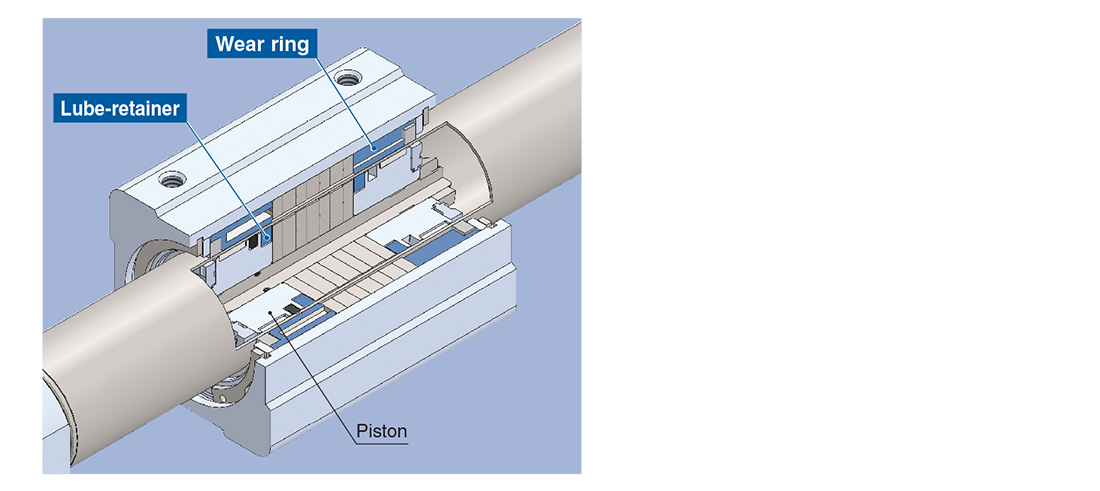

?Improved lubrication
A Lube-retainer is installed to support lubrication retention on the piston
and to ensure a lubrication film. (Bore size: ?15 to ?63)
?Stable operation
Lengthening of the wear ring on the body side by, 30% at maximum,
helps to achieve smooth movement.
?The specifications, magnet holding force, and mounting dimensions are
the same as those of the existing CY3B series model.
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD
Safety Instructions Actuators/Precautions Auto Switches/Precautions
Model Selection/Technical Data Quick Selection Table
Made to Order Common Specifications Series Variations/Model Selection Criteria
Green Procurement (RoHS)
Model Selection/Technical Data Quick Selection Table
Made to Order Common Specifications Series Variations/Model Selection Criteria
Green Procurement (RoHS)

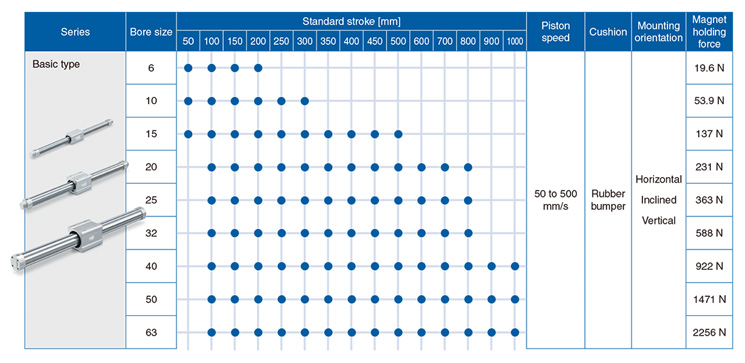

| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Basic | CY3B-Z | Double acting | 6，10，15，20，25，32，40，50，63 |
Features

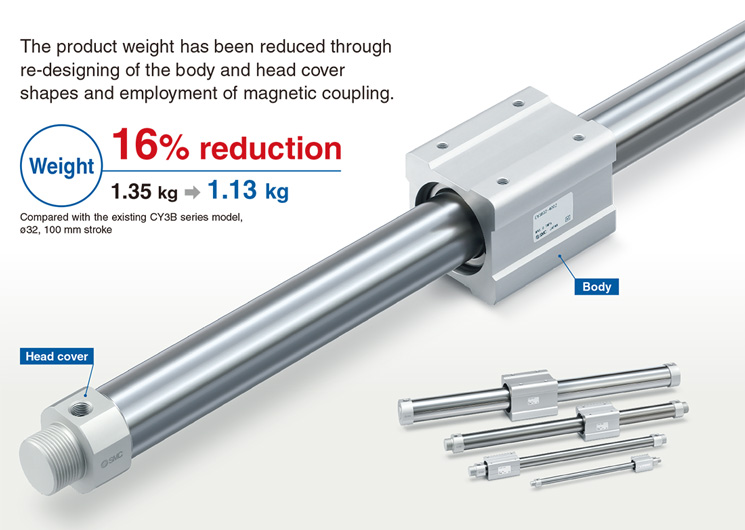

Lightweight Weight: 16% reduction (1.35 kg → 1.13 kg)
Compared with the existing CY3B series model, ?32, 100 mm stroke

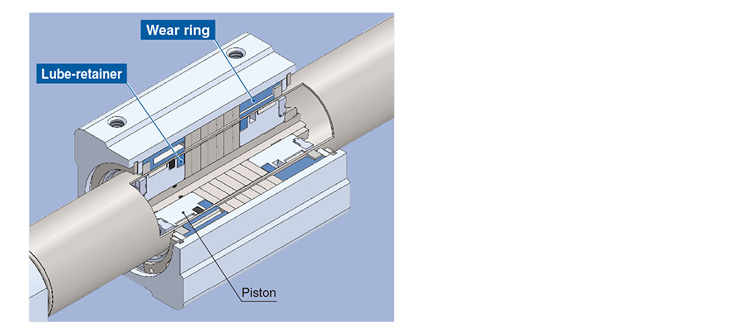

Improved lubrication
A Lube-retainer is installed to support lubrication retention on the piston and to ensure a lubrication film. (Bore size: ?15 to ?63)
Stable operation
Lengthening of the wear ring on the body side by, 30% at maximum, helps to achieve smooth movement.
The specifications, magnet holding force, and mounting dimensions are the same as those of the existing CY3B series model.

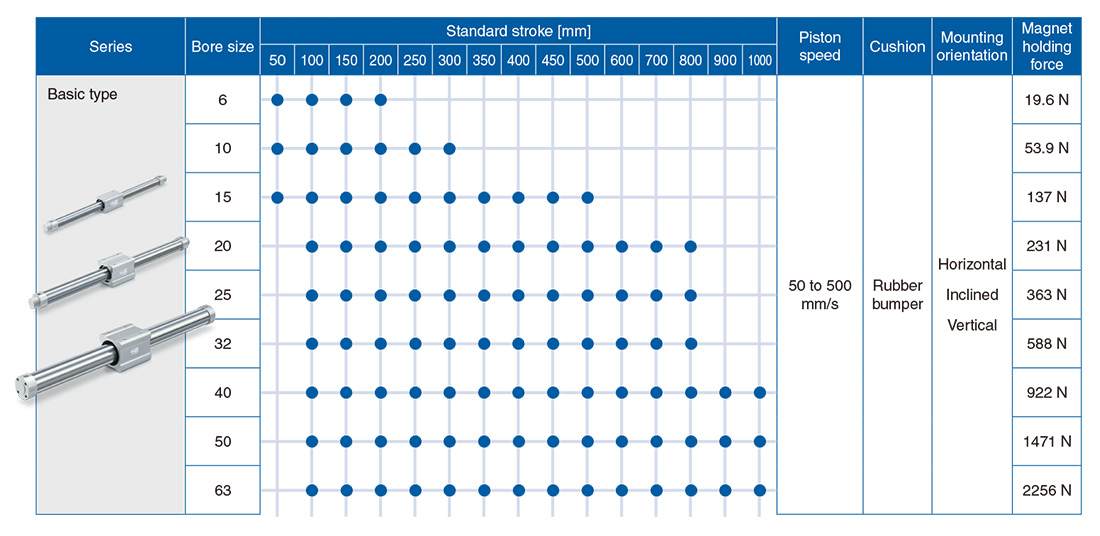

Series Variations
