WEB Catalog

Product Information ?  WEB Catalog  ? Air Preparation Equipment  ? Air Dryers

Air Dryers

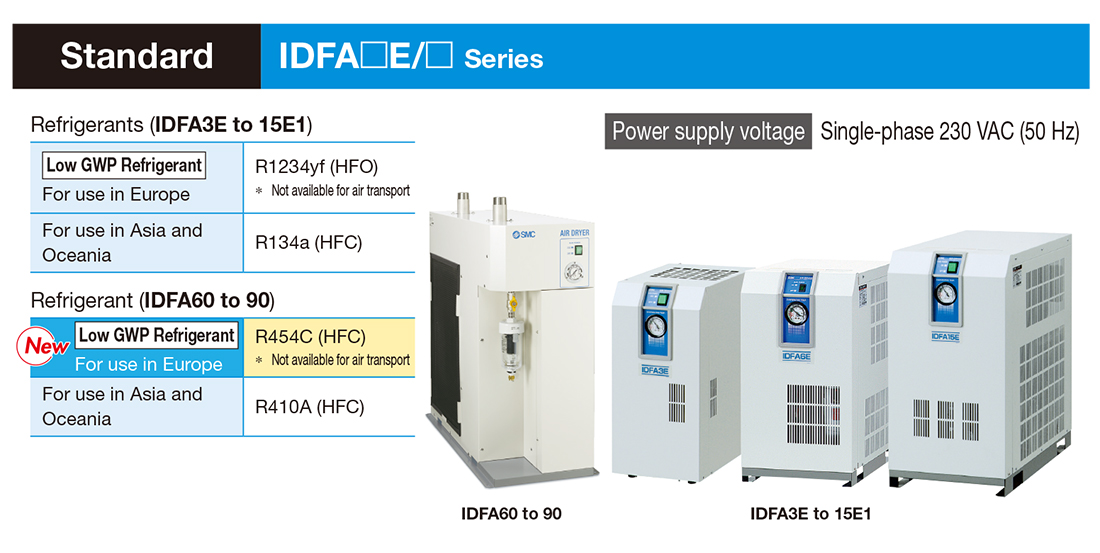

Refrigerated Air Dryer/For Use in Europe, Asia and Oceania/Standard IDFA□E

    ?[For use in Europe] Low GWP refrigerant: R1234yf (HFO)
    　? Not available for air transport
    ?[For use in Asia and Oceania] Refrigerant: R134a (HFC)
    ?[For use in Europe] Low GWP Refrigerant: R454C (HFC) [New]
    ?Power supply voltage: Single-phase 230 VAC (50 Hz)
    ?Max. inlet air temperature: 50°C, Max. ambient temperature: 40°C

    * The production of the IDFA22E to IDFA75E series was scheduled to end
    　in June 2022, but will be extended. We will announce the production end
    　date separately.
    　Click here for the IDFA22E to IDFA75E series catalog.

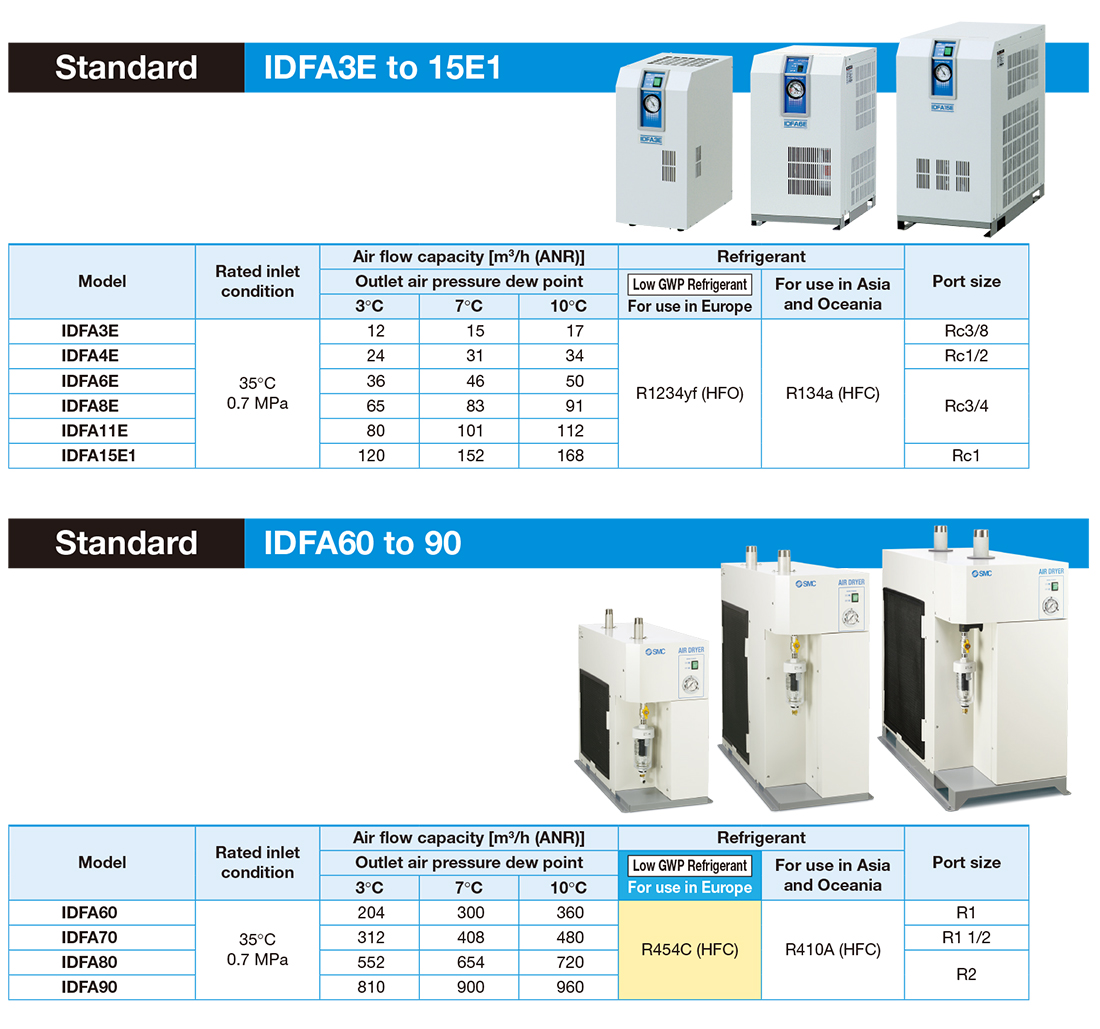

SeriesRated inlet conditionAir flow capacity
(m3/h [ANR] )
Outlet air pressure dew point
3℃		Air flow capacity
(m3/h [ANR] )
Outlet air pressure dew point
7℃		Air flow capacity
(m3/h [ANR] )
Outlet air pressure dew point
10℃		RefrigerantPort size
IDFA3E35℃
0.7MPa		121517[For use in Europe]
Low GWP refrigerant　R1234yf(HFO）

[For use in Asia and Oceania]
R134a（HFC）		Rc3/8
IDFA4E35℃
0.7MPa		243134[For use in Europe]
Low GWP refrigerant　R1234yf(HFO）

[For use in Asia and Oceania]
R134a（HFC）		Rc1/2
IDFA6E35℃
0.7MPa		364650[For use in Europe]
Low GWP refrigerant　R1234yf(HFO）

[For use in Asia and Oceania]
R134a（HFC）		Rc3/4
IDFA8E35℃
0.7MPa		658391[For use in Europe]
Low GWP refrigerant　R1234yf(HFO）

[For use in Asia and Oceania]
R134a（HFC）		Rc3/4
IDFA11E35℃
0.7MPa		80101112[For use in Europe]
Low GWP refrigerant　R1234yf(HFO）

[For use in Asia and Oceania]
R134a（HFC）		Rc3/4
IDFA15E135℃
0.7MPa		120152168[For use in Europe]
Low GWP refrigerant　R1234yf(HFO）

[For use in Asia and Oceania]
R134a（HFC）		Rc1
IDFA22E35℃
0.7MPa		182231254R407C
（HFC）		R1
IDFA37E35℃
0.7MPa		273347382R407C
（HFC）		R1 1/2
IDFA55E35℃
0.7MPa		390432510R407C
（HFC）		R2
IDFA75E35℃
0.7MPa		660720822R407C
（HFC）		R2

Features

[For use in Europe] Low GWP Refrigerant: R454C (HFC) New

Variations
