Air Dryers
Refrigerated Air Dryer/For Use in Europe, Asia and Oceania/Large Size IDFA□F
-
?Refrigerant: R407C (HFC)
?Tolerant of high temperature environment!
Top of its class in the industry for the large air-cooled type
Ambient temperature 45°C at max., Inlet air temperature 60°C at max.
?Energy saving design
Exhaust heat reduced by 25% at max.
Ambient temperature increase suppressed
Employs a heat exchanger made of high corrosion-resistant stainless
steel
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD2D CAD
Click here for 2D CAD Refrigerated Air Dryer/For Use in Europe, Asia and Oceania/Large Size IDFA□F
Manual
Series View search result IDFA100F-38 View search result IDFA125F-38 View search result IDFA150F-38 View search result IDFA100F-40 View search result IDFA125F-40 View search result IDFA150F-40 View search result Refrigerated Air Dryer/For Use in Europe, Asia and Oceania/Large Size IDFA□F
DoC
Series View search result IDFA100F-38 View search result IDFA125F-38 View search result IDFA150F-38 View search result IDFA100F-40 View search result IDFA125F-40 View search result IDFA150F-40 View search result
Safety Instructions Air Preparation Equipment/Precautions
Model Selection Guide/Quick Reference Guide Green Procurement (RoHS)
Model Selection Guide/Quick Reference Guide Green Procurement (RoHS)

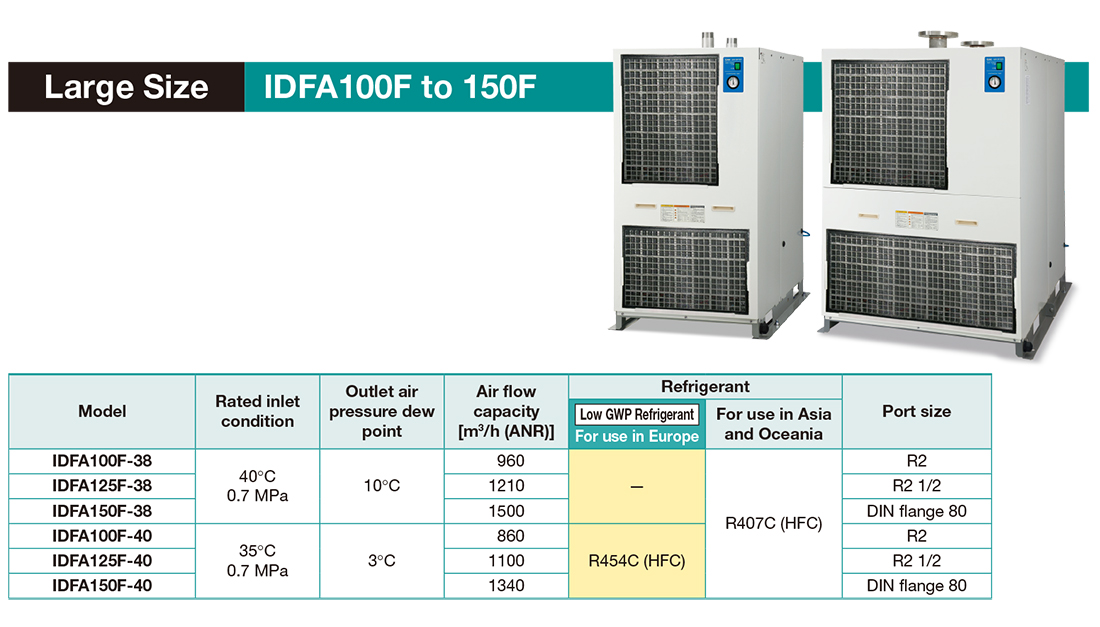

| Series | Rated inlet condition | Air flow capacity (m3/h [ANR] ) Outlet air pressure dew point 3℃ | Air flow capacity (m3/h [ANR] ) Outlet air pressure dew point 7℃ | Air flow capacity (m3/h [ANR] ) Outlet air pressure dew point 10℃ | Refrigerant | Port size |
|---|---|---|---|---|---|---|
| IDFA100F-38 | 40℃ 0.7MPa | - | - | 960 | R407C （HFC） | R2 |
| IDFA125F-38 | 40℃ 0.7MPa | - | - | 1210 | R407C （HFC） | R2 1/2 |
| IDFA150F-38 | 40℃ 0.7MPa | - | - | 1500 | R407C （HFC） | DIN flange 80 |
| IDFA100F-40 | 35℃ 0.7MPa | 860 | - | - | R407C （HFC） | R2 |
| IDFA125F-40 | 35℃ 0.7MPa | 1100 | - | - | R407C （HFC） | R2 1/2 |
| IDFA150F-40 | 35℃ 0.7MPa | 1340 | - | - | R407C （HFC） | DIN flange 80 |

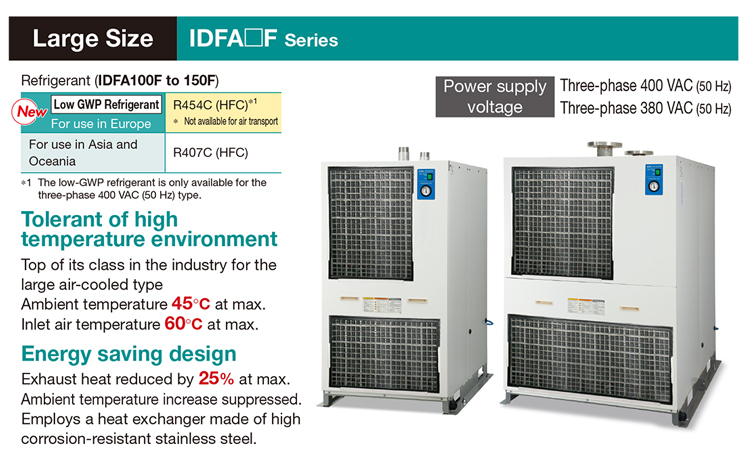

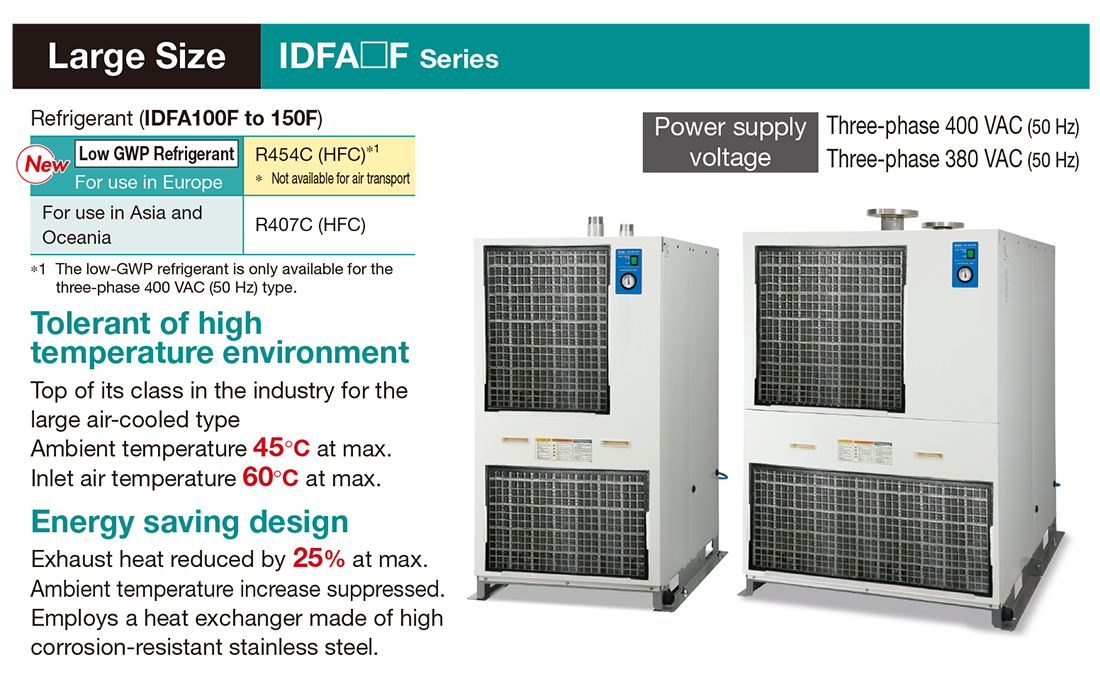

Features
Tolerant of high temperature environment! Energy saving design
Variations
