WEB Catalog

Product Information ?  WEB Catalog  ? Electric Actuators/Cylinders  ? e-Actuator

e-Actuator

e-Actuator Easy to Operate Integrated Controller　Slider Type/Rod Type/Guide Rod Type EQFS□H

    ?Easy to set up, just like air equipment!
    　Two position stop with no programming required
    　Three position stop with no programming required
    　Cycle time can be set in all control modes.
    ?Downsized with Integrated Controller, Wiring saving,
    　Labor saving · Programless · Reduced adjustment time
    ?Annual CO2 emissions: Max. 59% reduction (SMC comparison)[5.8 kg-
    　CO2e/year (14.1)]
    　? The numerical values vary depending on the operating conditions.
SpecificationModelStroke
（mm）		Work load
（kg）
Horizontal		Speed
（mm/s）		Screw lead
（mm）
Battery-less absolute
(Step motor 24 VDC)		EQY16□H50 to 500MAX.18MAX.8002.5, 5, 10
Battery-less absolute
(Step motor 24 VDC)		EQFS25□H50 to 800MAX. 40MAX. 12003, 6, 12, 20
Battery-less absolute
(Step motor 24 VDC)		EQFS32□H50 to 1000MAX. 68MAX. 11004, 8, 16, 24

Features

Easy to set up, just like air equipment!

Two position stop with no programming required

Three position stop with no programming required

Cycle time can be set in all control modes.

Annual CO2 emissions reduced by up to 59% through motor control optimization (SMC comparison)

Can be selected from 4 directions (In-line motor type)

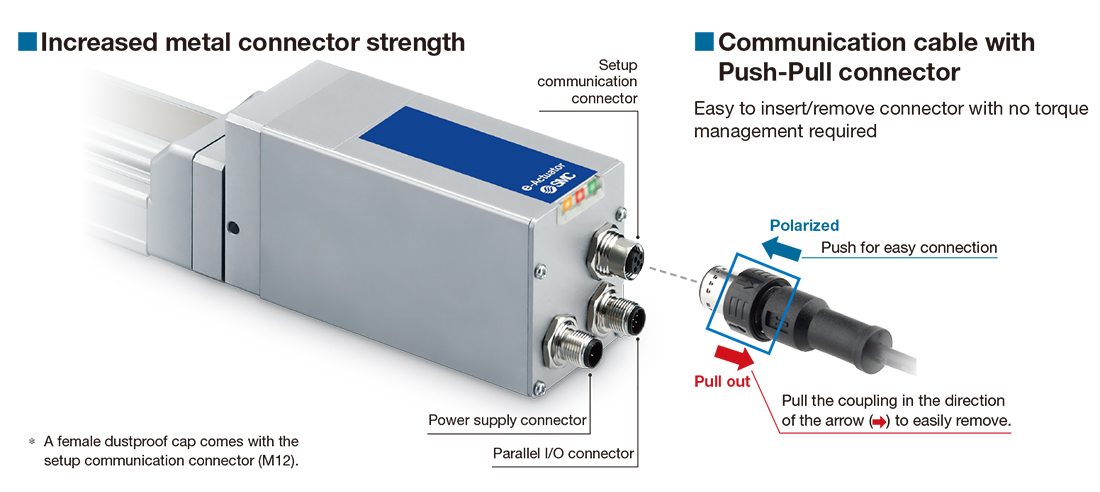

LEDs indicate the load condition./Increased metal connector strength

Restart from the last stop position is possible.

Detection of table stop position by means of an auto switch is possible.

Variations
