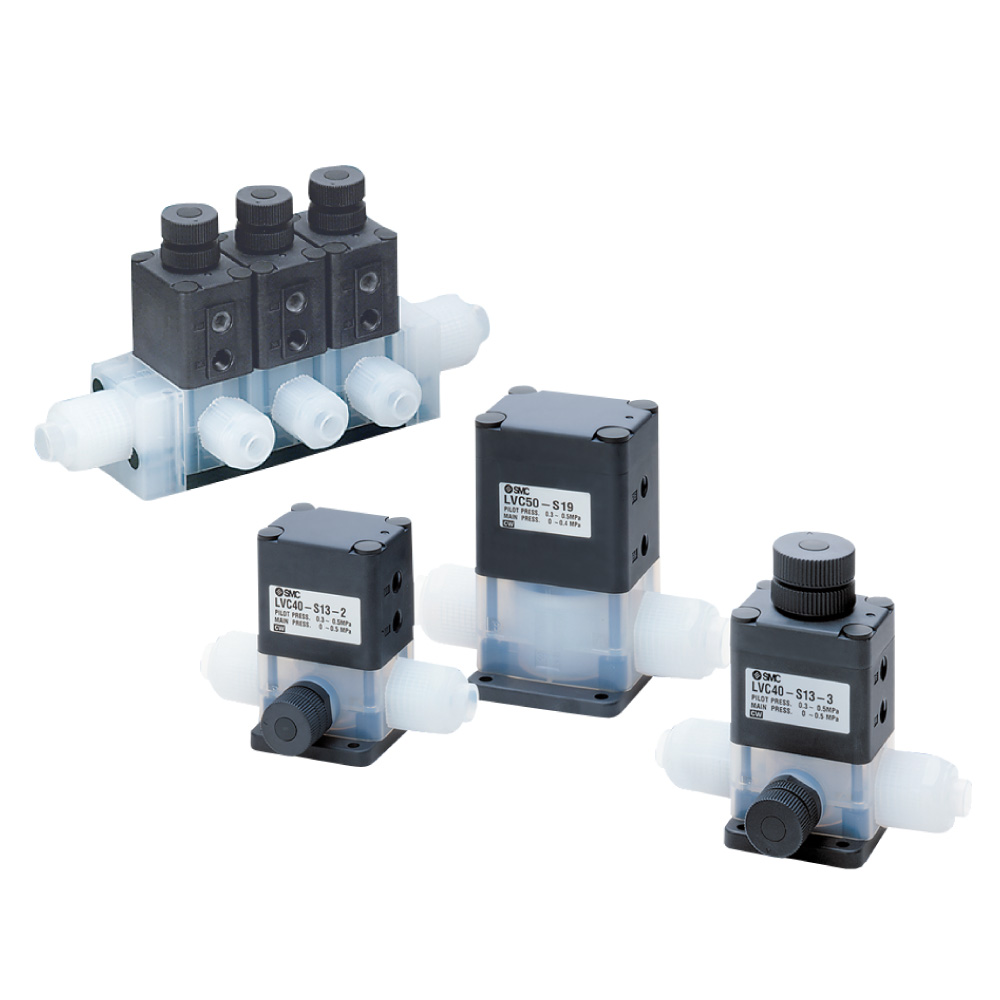

High Purity Chemical Liquid Valve/Air Operated, Integrated Fitting Type LVC

    ?Body material: New PFA
    ?N.C./N.O./Double acting all feature the same configuration.
    ?Compatible with fluid temperatures of 100℃
    ?Manifold type no.: LLC2, LLC3, LLC4, LLC5
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
SeriesTypeValve typeApplicable tubing O.D.Orifice diameter (mm?)
LVCAir Operated
Integrated fitting		N.C./N.O./
Double acting		Metric: 3 to 25
Inch: 1/8 to 1		4 to 22

High Purity Chemical Liquid Valve/Air Operated, Threaded Type LVA

    ?Body materials: New PFA/Stainless steel/PPS
    ?Diaphragm materials: PTFE, EPR, or NBR can be selected.
    ?Organic solvents compatible
    　Body: Stainless steel, Actuator section: ADC, Buffer: Choose from FKM/EPDM
    ?Manifold type no.: LLA2，LLA3，LLA4，LLA5
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
SeriesTypeValve typePort size
Applicable tubing O.D.		Orifice diameter
(mm?)
LVAAir operated
Threaded type		N.C./N.O./
Double acting		1/8 to 12 to 22
LVAAir operated
Organic solvents
compatible		N.C./N.O./
Double acting		Metric: 6 to 19
Inch: 1/4 to 1		4 to 22

High Purity Chemical Liquid Valve/Manually Operated (Integrated Fitting Type/Threaded Type) LVH

    ?Body materials: New PFA/Stainless steel/PPS
    ?Compatible with locking and non-locking types
    ?Organic solvents compatible
    　Body: Stainless steel, Actuator section: ADC, Buffer: Choose from FKM/EPDM
    ?Manifold type no.: LLH2，LLH3，LLH4
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
SeriesTypeValve typePort size
Applicable tubing O.D.		Orifice diameter
(mm?)
LVHManually operated
(Integrated fitting/Threaded type)		N.C.Threaded type: 1/8 to 1/2
Integrated fitting: Metric: ?3 to ?12
Inch: 1/8 to 1/2		4 to 12
LVHManually operated
Organic solvents
compatible		N.C.Metric: 6 to 19
Inch: 1/4 to 1		4 to 22

Compact Type High Purity Air Operated Chemical Liquid Valve LVD

    ?Space saving, compact model is available.
    　Dimension across inlet/outlet ports: Reduced by up to 29%
    ?Body material: New PFA
    ?Diaphragm material: PTFE
    ?Actuator materials: PPS, PVDF (LVD-F/FN)

    Note) Tubing O.D. for the tube extension type
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
SeriesTypeValve typeApplicable tubing O.D.
Note)
Metric size		Applicable tubing O.D.
Note)
Inch size		Orifice diameter
(mm?)
LVDIntegrated fittingsN.C./N.O./
Double acting		3 to 191/8 to 3/42 to 16
LVDTube extensionsN.C./N.O./
Double acting		6 to 191/4 to 3/44 to 16
LVD-F/FNLQ1 Integrated fittingsN.C./N.O./
Double acting		3 to 251/8 to 14 to 22
LVD-F/FNLQ3 Integrated fittingsN.C./N.O./
Double acting		6 to 251/4 to 14 to 22
LVD-F/FNTube extensionsN.C./N.O./
Double acting		6 to 251/4 to 14 to 22

High Purity Chemical Liquid Valve/Air Operated, Non-Metallic Exterior LVQ

    ?Screwless construction, Non-metallic construction doesn't use metal
    　screws to secure the body of the actuator
    ?Body material: New PFA
    ?Diaphragm material: PTFE
    ?Actuator material: PVDF

    Note) Tubing size

    * The LQ2 insert/integrated fitting type space-saving fitting for
    　the LVQ series high-purity chemical liquid valve is to be
    　discontinued as of March 2025. Select the LQ1 fitting instead.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • High Purity Chemical Liquid Valve/Air Operated, Non-Metallic Exterior LVQ
    Manual
    Series Type View search result
    LVQIntegrated fittingView search result
    LVQSpace saving typeView search result
    LVQTube extensionView search result
SeriesTypeValve typeApplicable tubing O.D.
Metric size		Applicable tubing O.D.
Inch size		Orifice diameter
(mm?)
LVQIntegrated fittingN.C./N.O./
Double acting		3 to 251/8 to 14 to 22
LVQSpace saving typeN.C./N.O./
Double acting		Fitting size:
2 to 6		Fitting size:
2 to 6		4 to 22
LVQTube extensionN.C./N.O./
Double acting		6 to 25 Note)1/4 to 1 Note)4 to 22
