WEB Catalog

Product Information ?  WEB Catalog  ? Air Preparation Equipment  ? Air Dryers

Air Dryers

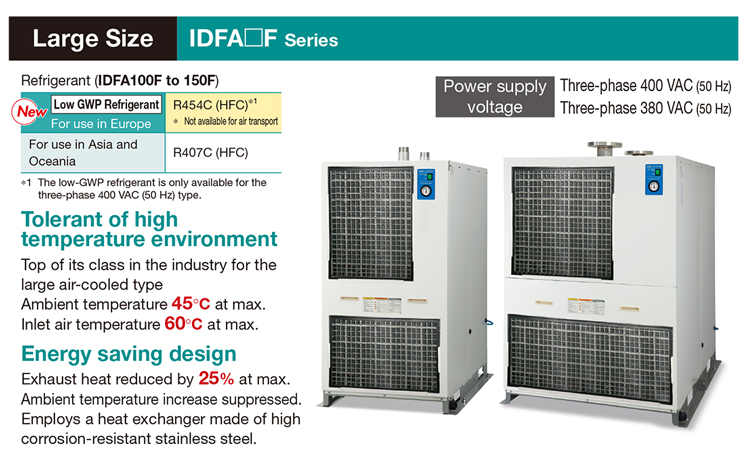

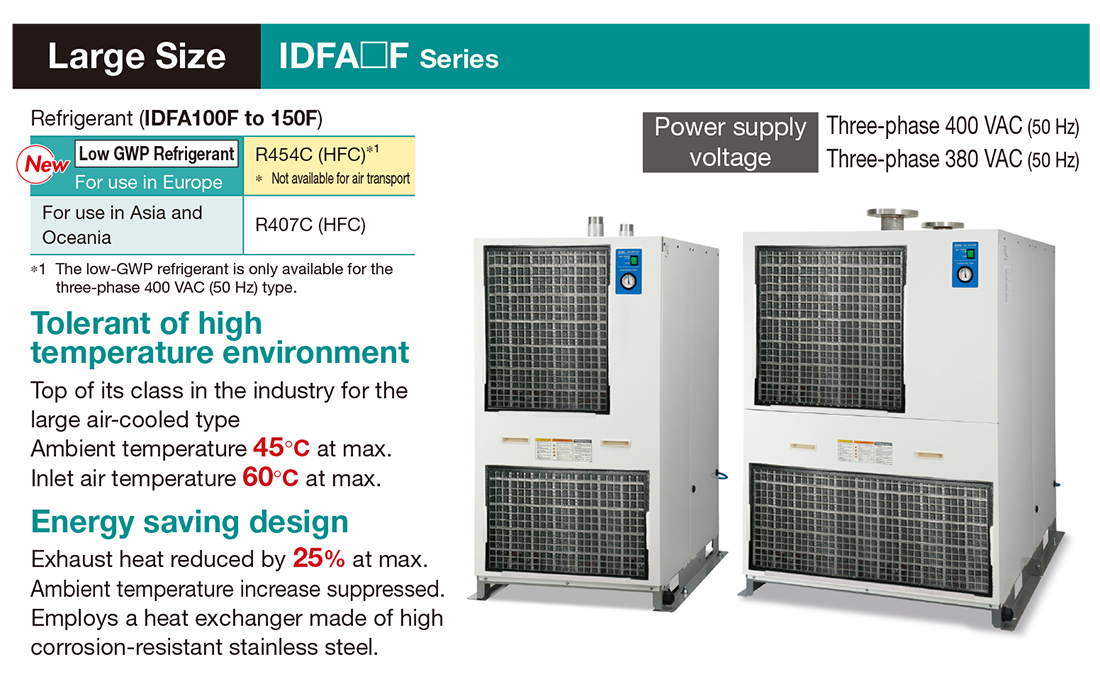

Refrigerated Air Dryer/For Use in Europe, Asia and Oceania/Large Size IDFA□F

    ?Refrigerant: R407C (HFC)
    ?Tolerant of high temperature environment!
    　Top of its class in the industry for the large air-cooled type
    　Ambient temperature 45°C at max., Inlet air temperature 60°C at max.
    ?Energy saving design
    　Exhaust heat reduced by 25% at max.
    　Ambient temperature increase suppressed
    　Employs a heat exchanger made of high corrosion-resistant stainless
    　steel

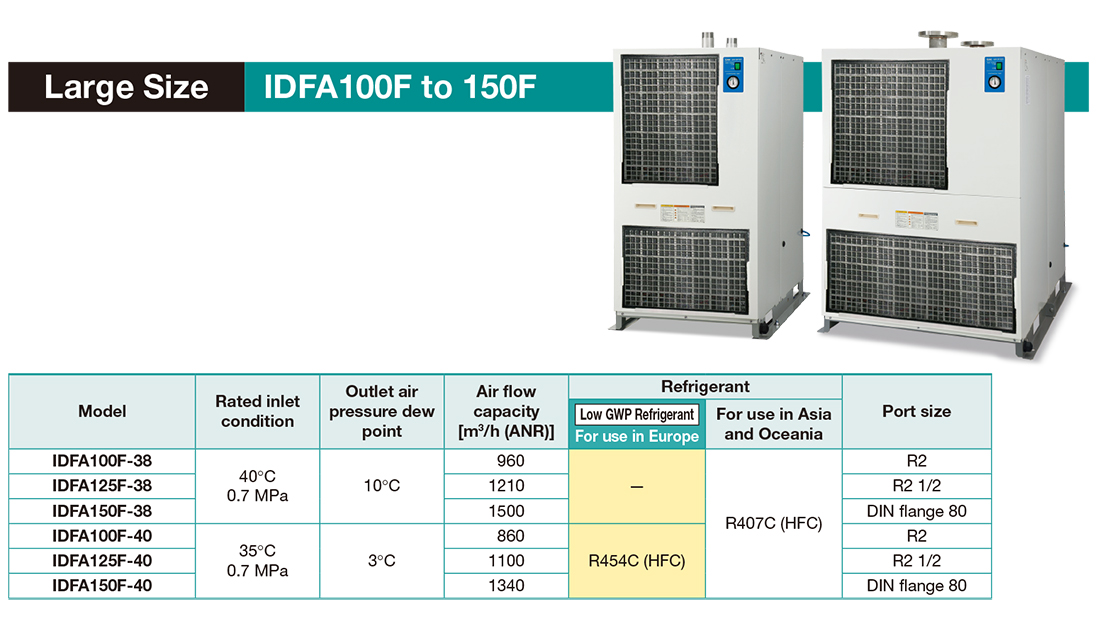

SeriesRated inlet conditionAir flow capacity
(m3/h [ANR] )
Outlet air pressure dew point
3℃		Air flow capacity
(m3/h [ANR] )
Outlet air pressure dew point
7℃		Air flow capacity
(m3/h [ANR] )
Outlet air pressure dew point
10℃		RefrigerantPort size
IDFA100F-3840℃
0.7MPa		--960R407C
（HFC）		R2
IDFA125F-3840℃
0.7MPa		--1210R407C
（HFC）		R2 1/2
IDFA150F-3840℃
0.7MPa		--1500R407C
（HFC）		DIN flange 80
IDFA100F-4035℃
0.7MPa		860--R407C
（HFC）		R2
IDFA125F-4035℃
0.7MPa		1100--R407C
（HFC）		R2 1/2
IDFA150F-4035℃
0.7MPa		1340--R407C
（HFC）		DIN flange 80

Features

Tolerant of high temperature environment! Energy saving design

Variations
