Compact Compressor

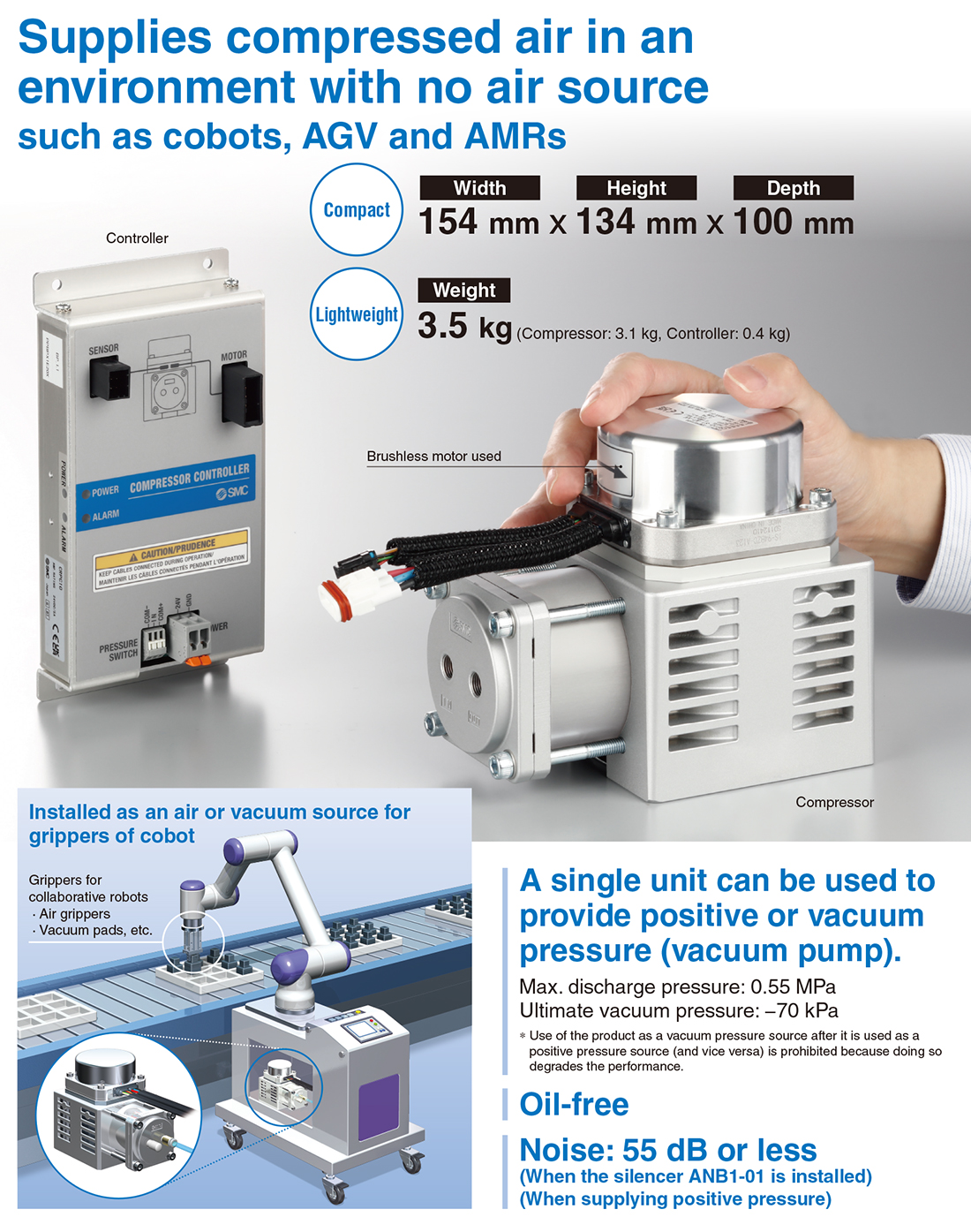

Compact Compressor CRP

    ?Supplies compressed air in an environment with no air source such as
    　cobots, AGV and AMRs
    ?Compact: 154 mm (Width) x 134 mm (Height) x 100 mm (Depth)
    ?Lightweight: 3.5 kg (Compressor: 3.1 kg, Controller: 0.4 kg)
    　A single unit can be used to provide positive or vacuum pressure
    　 (vacuum pump).
    　Max. discharge pressure: 0.55 MPa
    　Ultimate vacuum pressure: ?70 kPa
    ?Oil-free
    ?Noise: 55 dB or less (When the silencer ANB1-01 is installed) (When
    　supplying positive pressure)
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
SeriesCompression methodMax. discharge pressure
Ultimate vacuum pressure		Max. discharge flow rate
Max. suction flow rate
CRPReciprocating
(Oil-free)		0.55 MPa
?70 kPa		10 L/min (ANR)

Features

Supplies compressed air in an environment with no air source such as cobots, AGV and AMRs

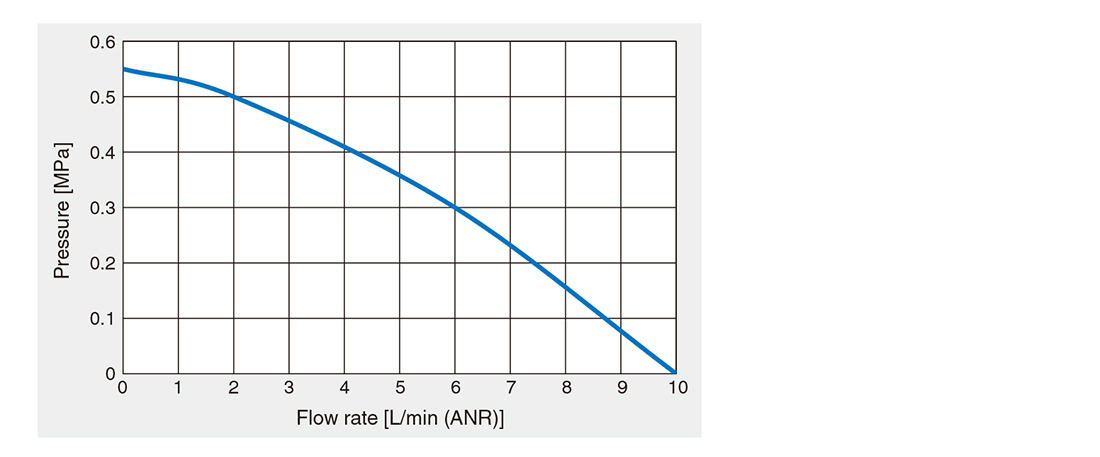

Max. flow rate of 10 L/min (ANR)

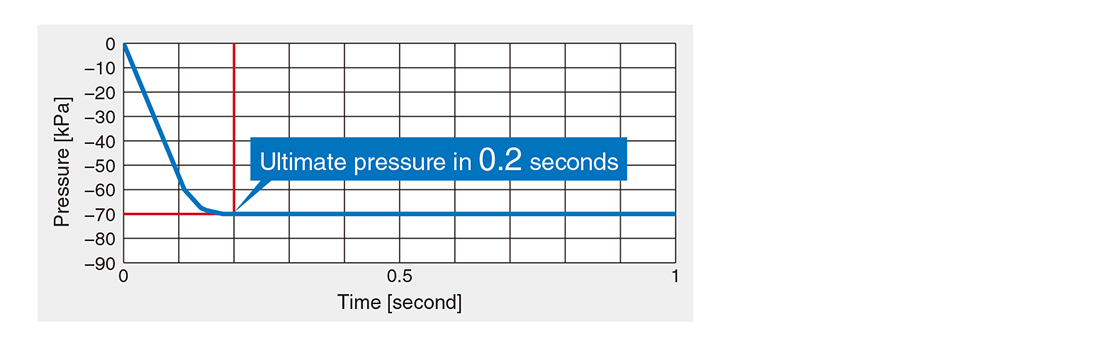

Reaches the ultimate vacuum pressure (?70 kPa) in 0.2 seconds

The time to reach the ultimate vacuum pressure when the vacuum pad is placed about 3 meters from the compressor

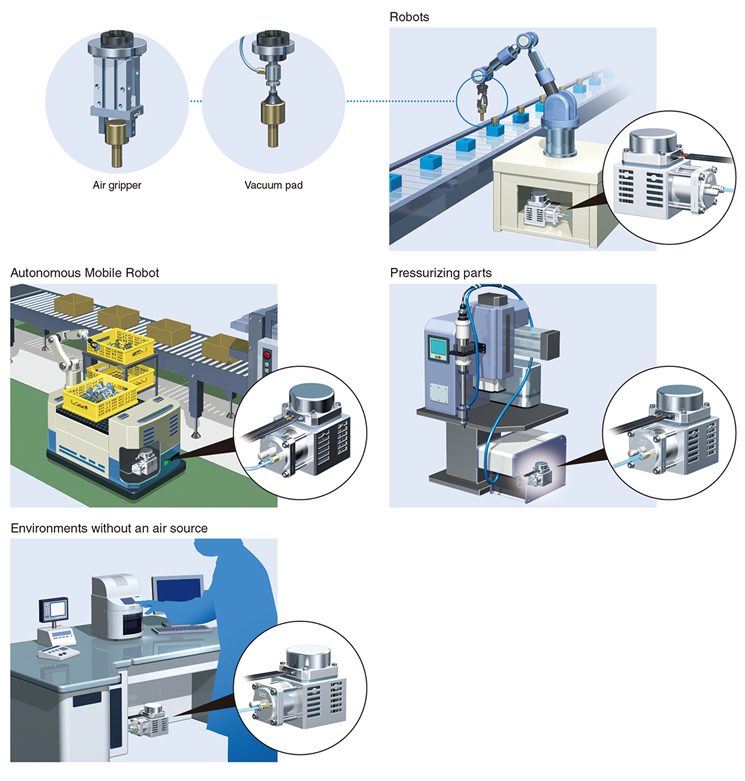

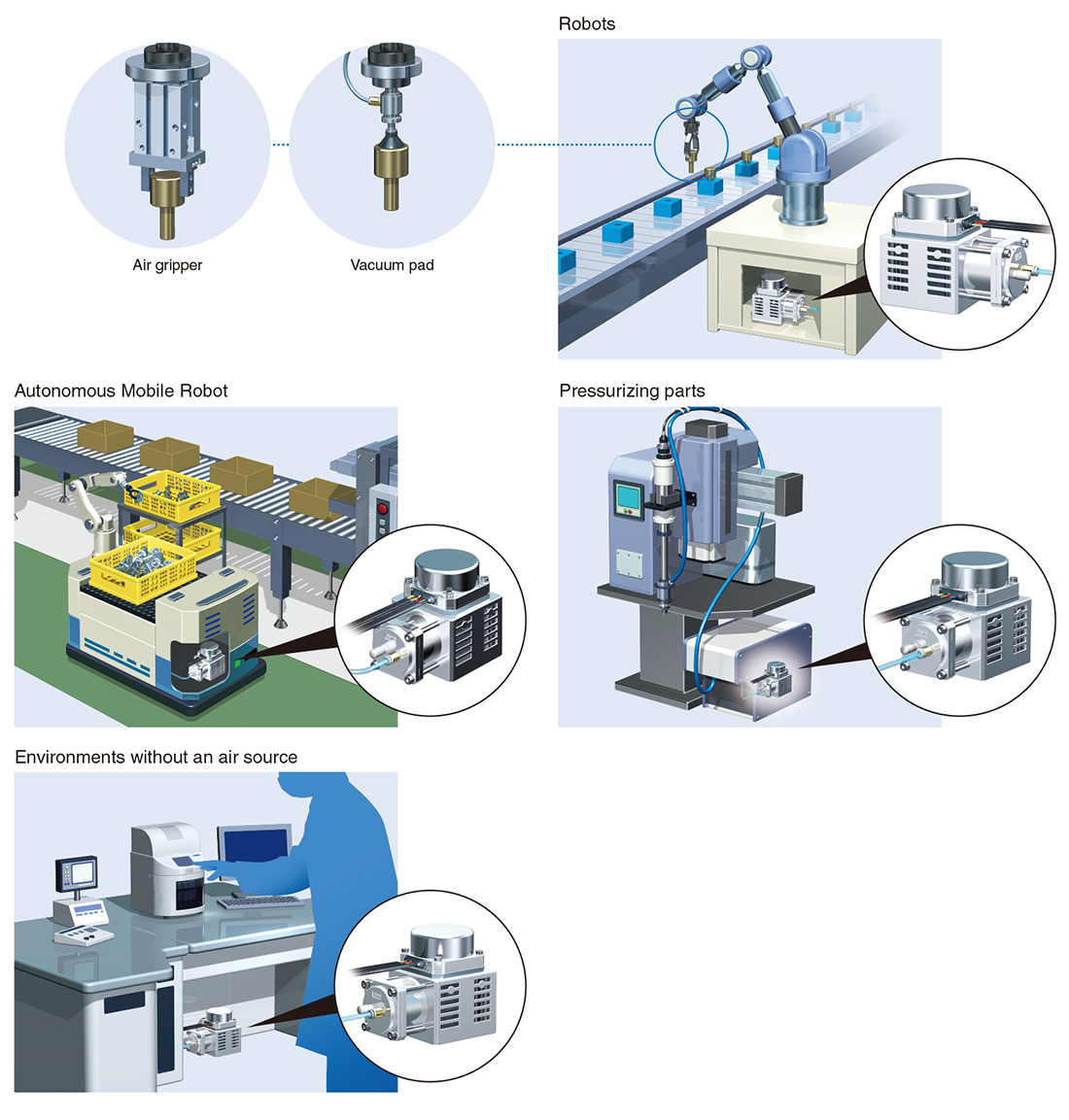

Applications

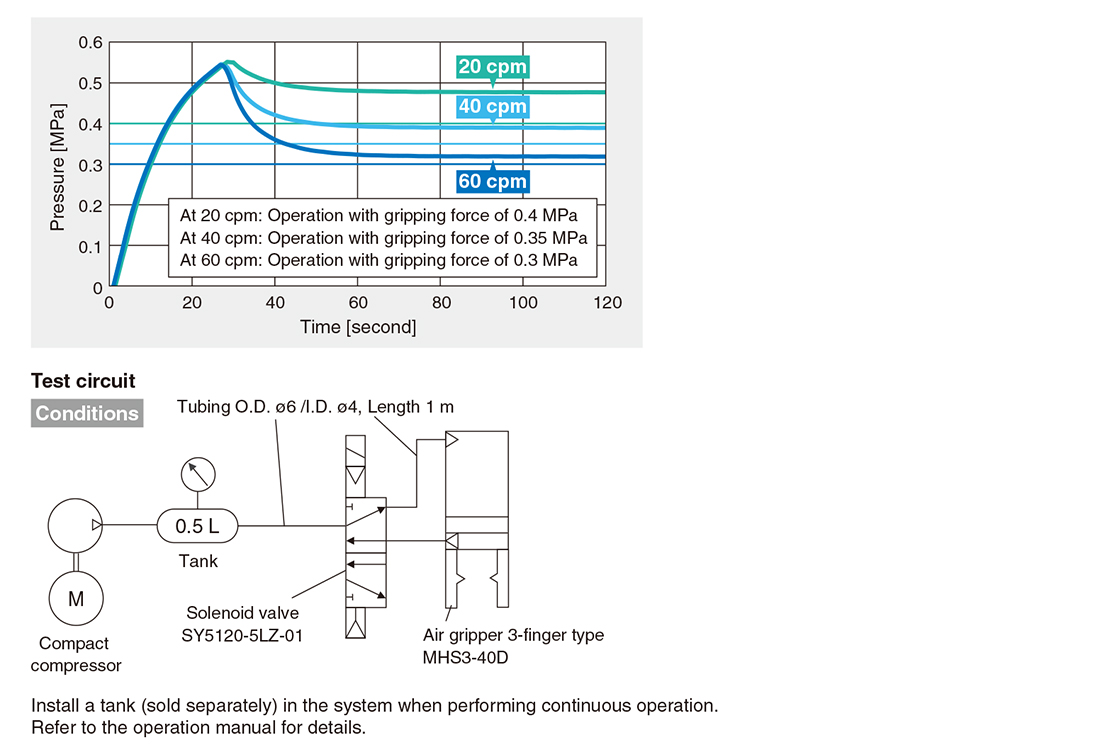

60 cpm with a gripping force of 0.3 MPa

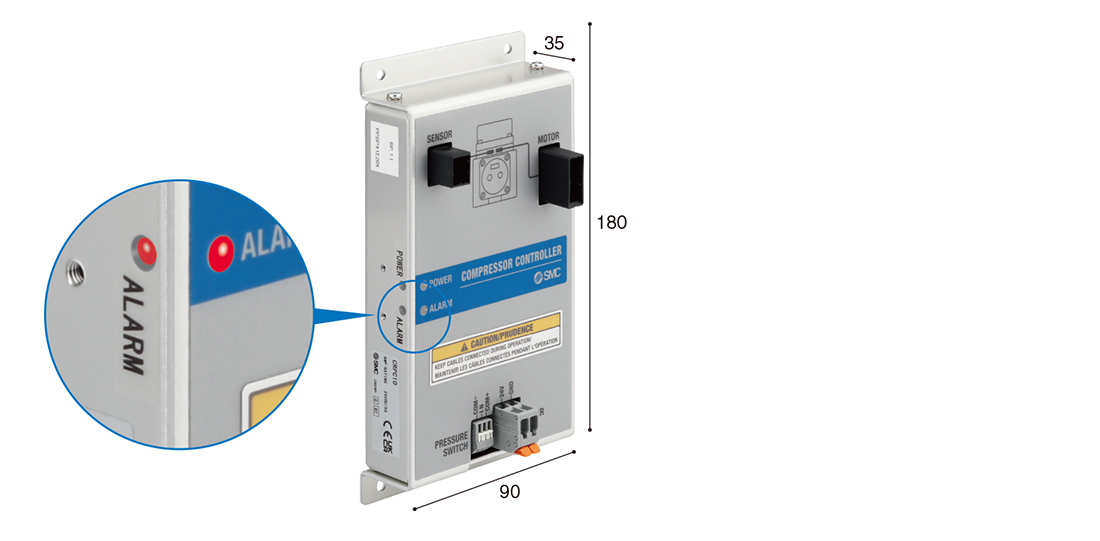

Alarm

Alarm LED turns on or flashes when an error is detected

? Refer to the operation manual for possible causes and troubleshooting.

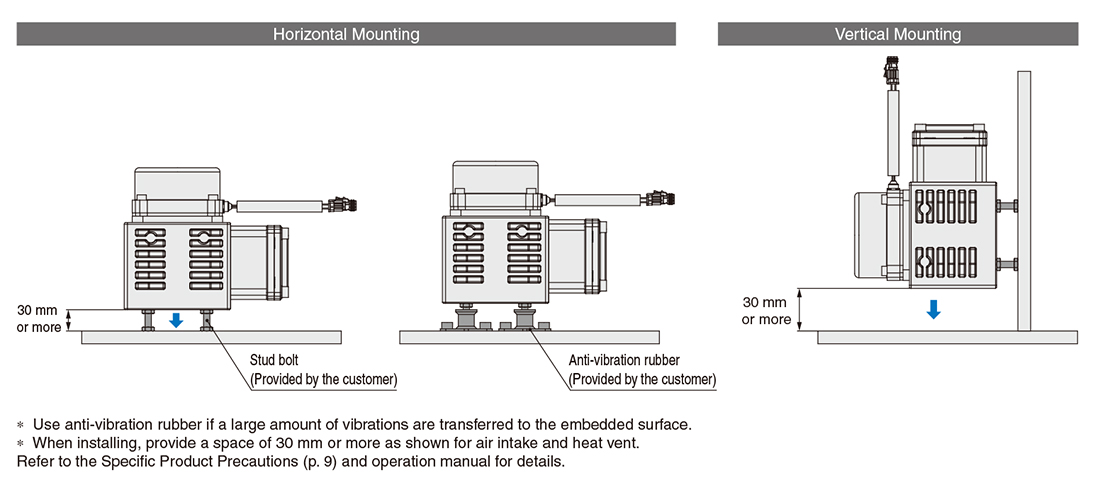

Can be mounted from 2 directions
