Gas Generator

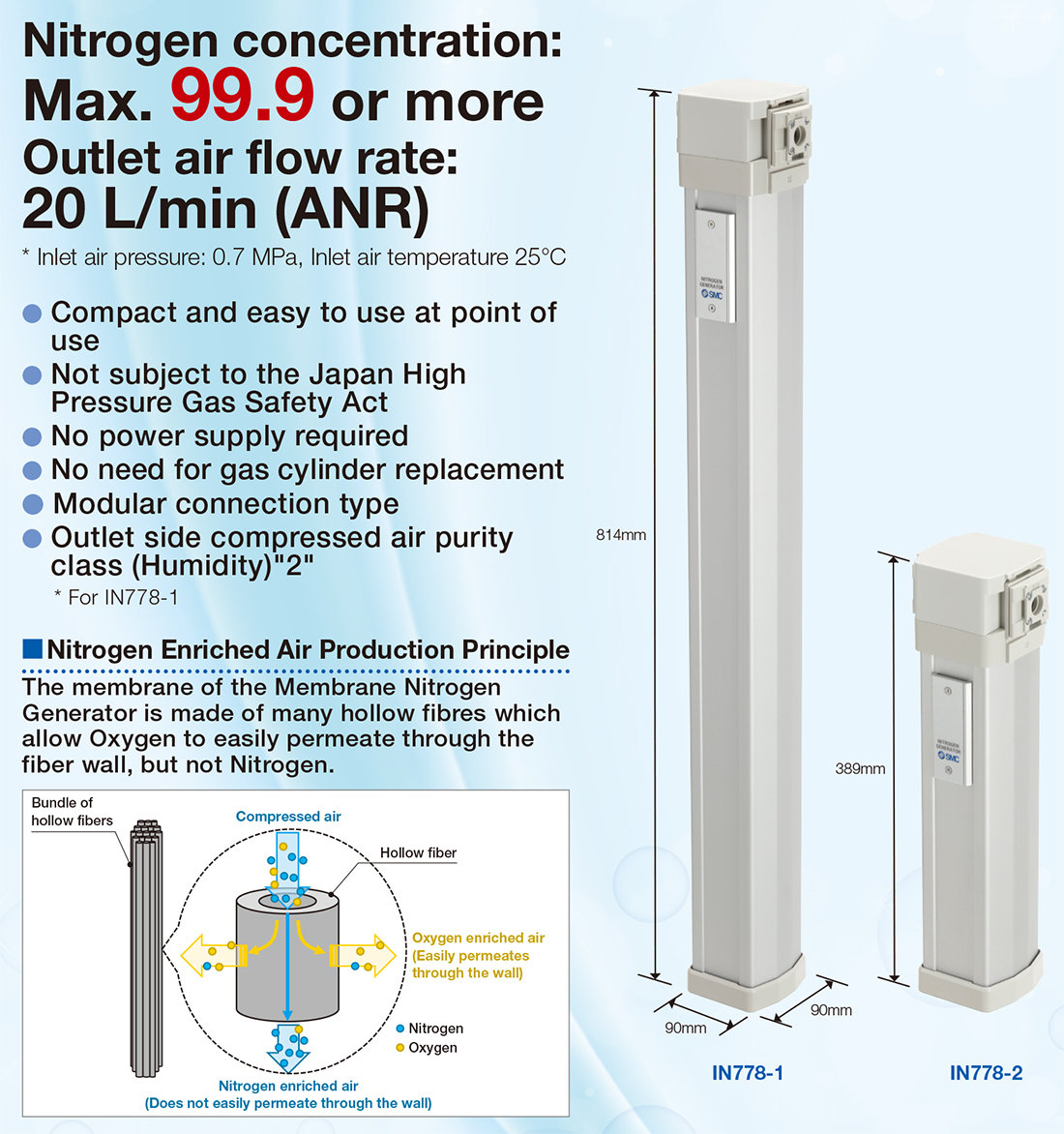

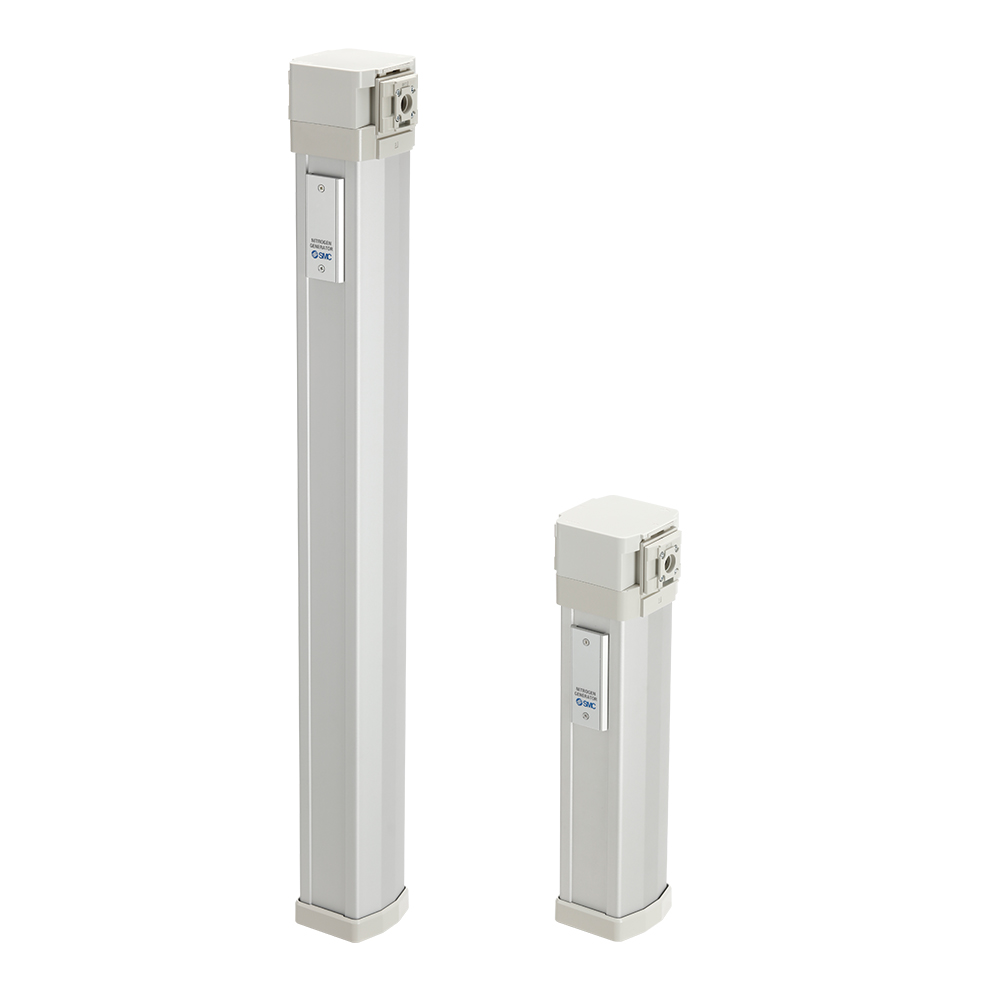

Membrane Nitrogen Generator IN778-1/IN778-2
-
?Nitrogen enriched air purification is easily possible with only
a compressed air supply.
?Nitrogen concentration: Max. 99.9 or more/ Outlet air flow rate: 20 L/min
(ANR)※
※Inlet air pressure: 0.7 MPa, Inlet air temperature 25°C
?Compact and easy to use at point of use
?No power supply required
?No need for gas cylinder replacement
?Modular connection type
?Outlet side compressed air purity class (Humidity)"2"※
※For IN778-1
| Series | Inlet air conditions | Nitrogen enriched outlet air flow rate L/min(ANR) | Nitrogen concentration ％ | Proof pressure Mpa | Max. operating pressure Mpa | Min. operating pressure Mpa |
|---|---|---|---|---|---|---|
| IN778-1 | 25℃ 0.7MPa | 20 | 99.9 | 1.5 | 1.0 | 0.3 |
| IN778-2 | 25℃ 0.7MPa | 20 | 98 | 1.5 | 1.0 | 0.3 |
Features
Nitrogen enriched air purification is easily possible with only a compressed air supply.
