Vacuum Pads (Vacuum Suction Cups)

Suction Cup/With Non-slip Feature ZP3M

    ?An oval flat shape with non-slip feature has been added. [New]
    　Compatible with workpieces with an elongated adsorption surface
    ?Longer life (More than twice that of urethane cups)
    　Cup material: FS61 (Fluoro-based rubber) with excellent abrasion
    　resistance
    　Reduced number of cup replacements
    ?Non-slip special ribs
    　Diagonal ribs are radially arranged to secure the gripping force in all
    　directions.
    　· Prevents workpiece slippage
    　· Secure adsorbing and transferring are possible.
    ?Bowl shape with excellent flexibility
    　Curved workpieces can also be adsorbed.
    　The cup follows the workpiece shape, making stable adsorption possible.
    　Horizontal holding force: 387 N (Cup diameter ?100)
    　Suitable for high-temperature workpieces (200°C)
    ?Suitable for workpieces with oil film
    　As oil is ejected to the grooves between special ribs, the lateral slipping
    　of workpiece can be suppressed even on a steel plate with oil film.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
SeriesCup formCup diameter (mm)
ZP3M-RBowl shapeφ32, φ40, φ50, φ63, φ80, φ100
ZP3M-RBBowl Bellows Shapeφ32, φ40, φ50, φ63, φ80, φ100
ZP3M-TOval flat shape with non-slip feature16 x 50, 30 x 90, 40 x 80, 50 x 100

Features

Non-slip special ribs

Diagonal ribs are radially arranged to secure the gripping force in all directions.
?Prevents workpiece slippage
?Secure adsorbing and transferring are possible.

Suitable for workpieces with oil film

As oil is ejected to the grooves between special ribs, the lateral slipping of workpiece can be suppressed even on a steel plate with oil film.

Mesh filter (Option)

Insert-molded cup

Mounting

Bowl bellows shape

Anti-stick grooves

The bowl shape can handle curved workpieces.

The cup follows the workpiece shape, making stable adsorption possible.

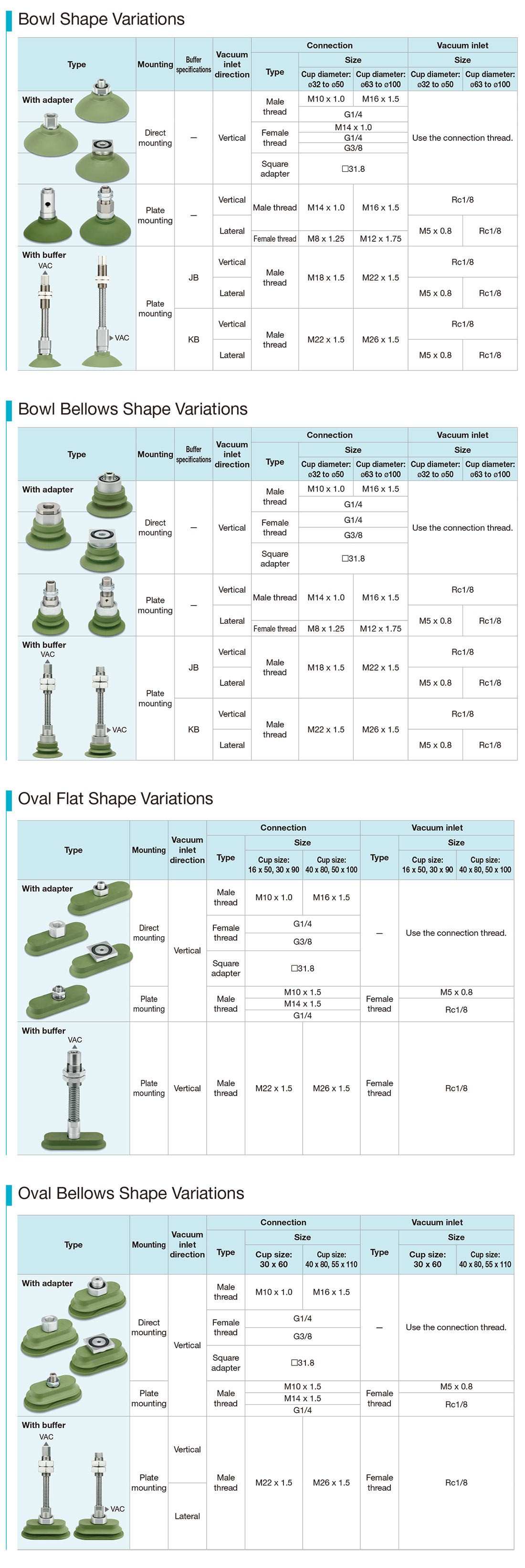

Variations

Compatible with workpieces with an elongated adsorption surface
